UNDERLYING RECESSED COMPONENT PLACEMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 13, 2016
filing date -
Jul 13, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

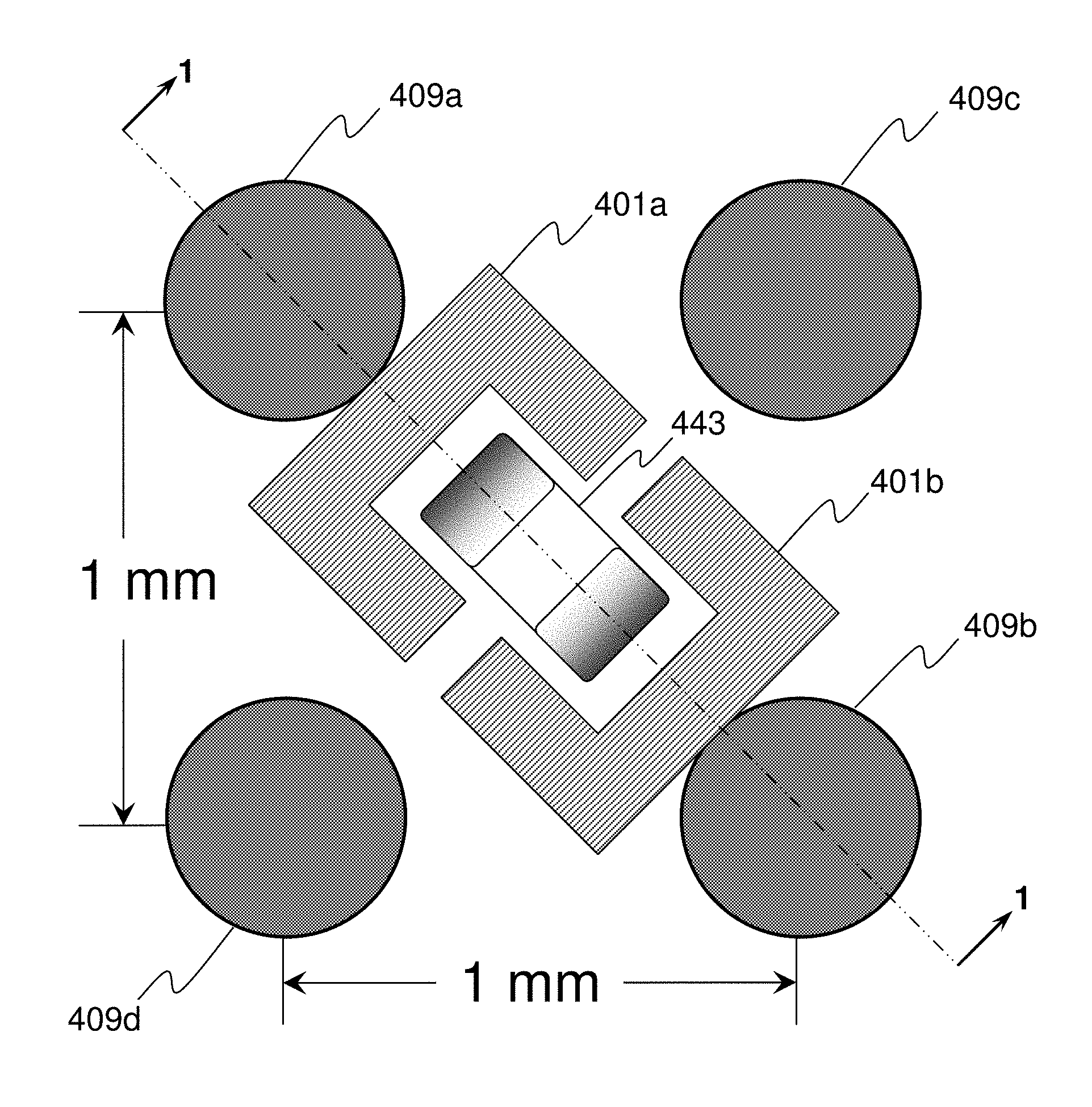

An underlying recess is provided for component placement beneath Ball Grid Arrays allowing closer proximity for decoupling capacitors and other components. The underlying recess placement of components assists in minimizing reliability issues concerning surface mount components and provides closer proximity placement of components. The underlying recess placement of components is particularly useful for overcoming the problem of parasitic inductance of more distant component placements known in the art.
