Stereo display device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 23, 2018
Grant Date -
Jan 18, 2018
app pub date -
Oct 12, 2016
filing date -
Jul 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

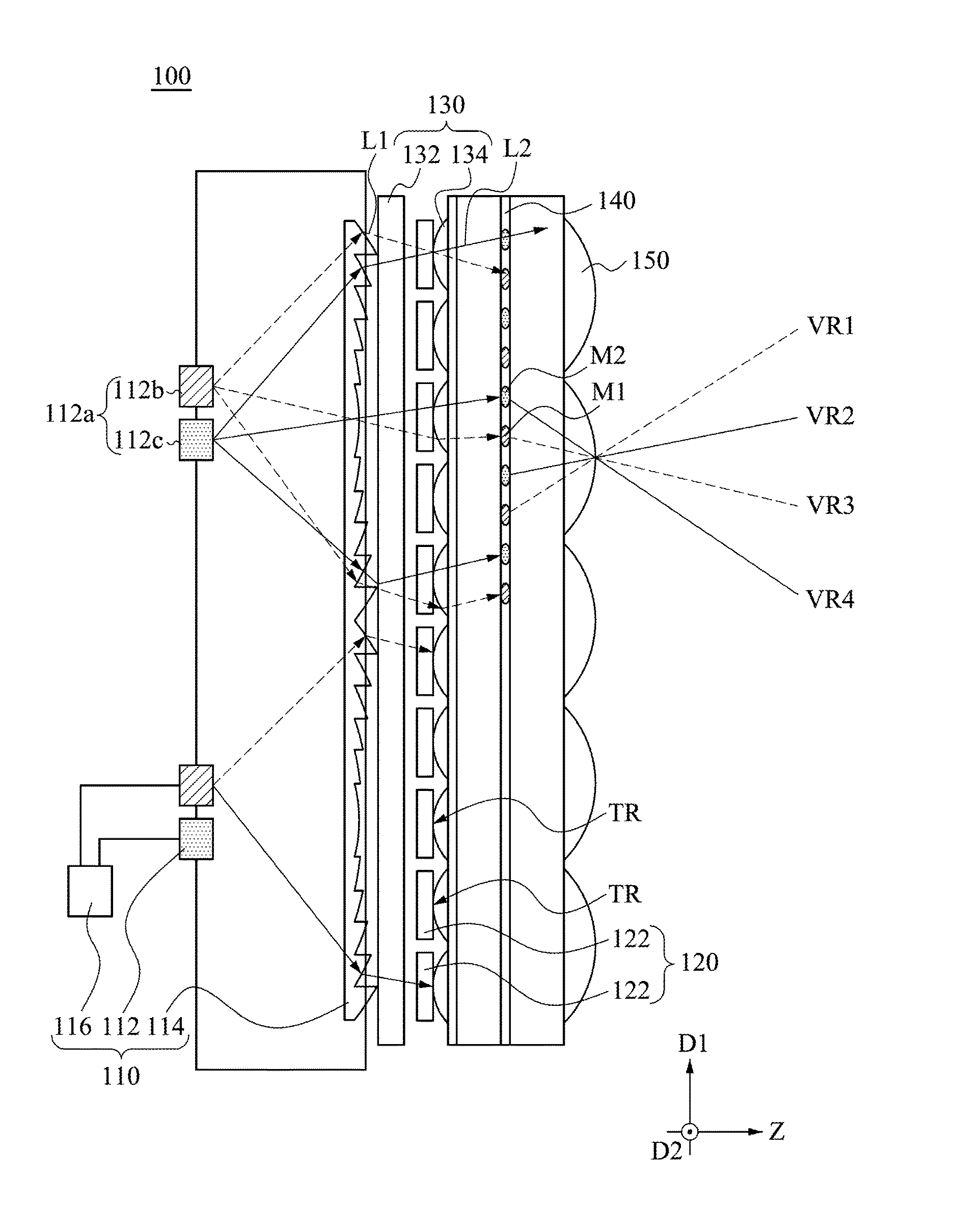

A stereo display device includes a light source module, an image determining array, an imaging module, and a spatial dividing element. The light source module sequentially emits first and second lights to target regions in different directions. The image determining array includes pixel units respectively disposed in the target regions, and each of the pixel units sequentially provides first and second information to the first and second lights respectively. The imaging module guides the first light having the first information to form first imaging units, and guides the second light having the second information to form second imaging units. The spatial dividing element sends the first image units to first viewing regions respectively and sends the second image units to second viewing regions respectively, and two of the first image units corresponding to adjacent two of the pixel units are transmitted to the first viewing regions in different directions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- H04N Class
- 18761 Applications Filed
- 14708 Patents Issued To-Date
- 78.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 23, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 23, 2030 |
