Optical unit and projector including the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Apr 7, 2015
filing date -
Dec 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

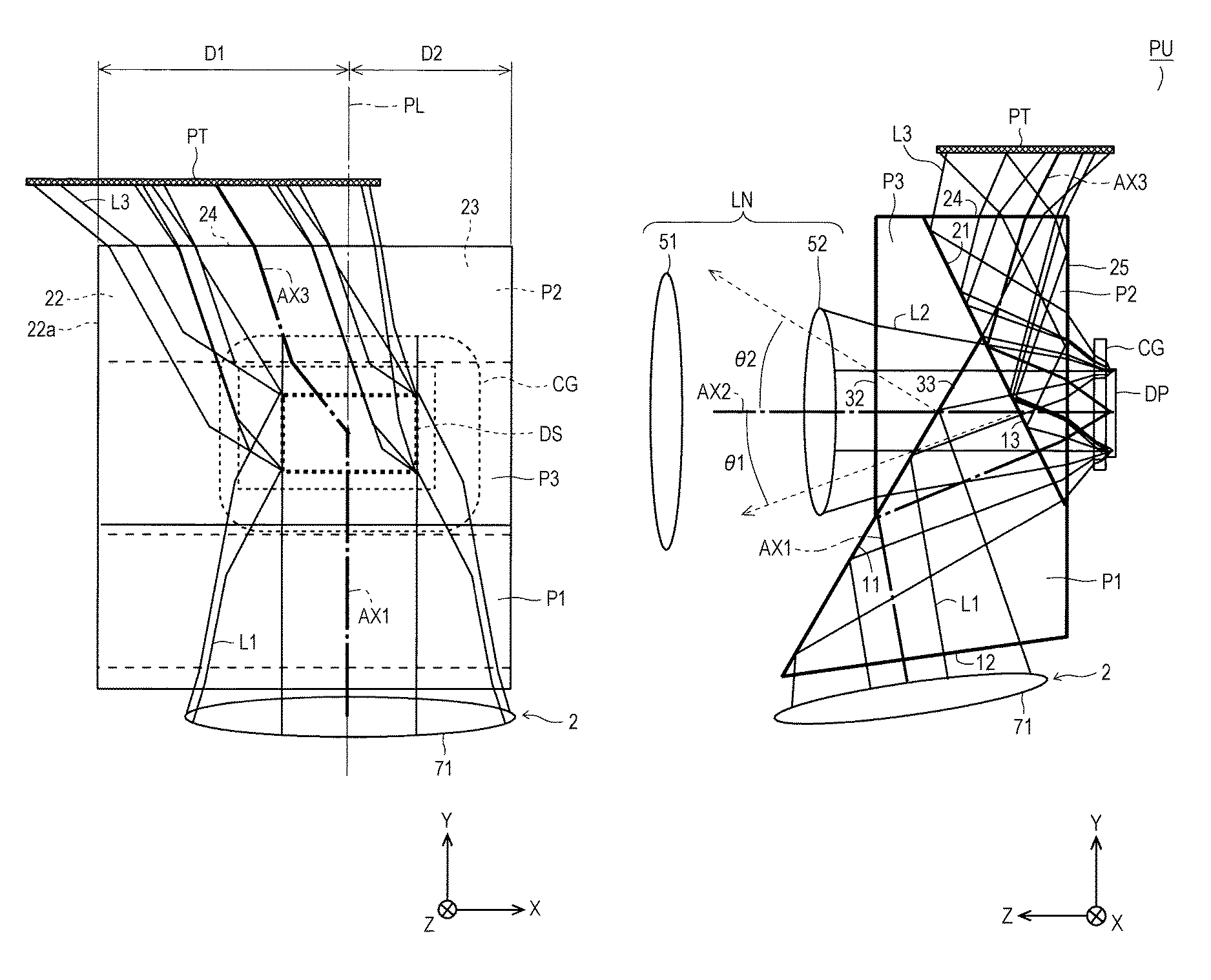

An optical unit includes a digital micromirror device in which each of micro-mirrors is driven biaxially in ON/OFF control, a first prism directs illumination light to the digital micromirror device, a second prism including an OFF-light reflecting surface reflects OFF light reflected from the micro-mirrors in an OFF state and transmits ON light reflected from the micro-mirrors in an ON state, and a third prism emits the ON light incident from the second prism toward a projection side. The micro-mirrors reflect the OFF light so that an optical axis of the OFF light is directed away from a projection-optical-axis plane including an optical axis of the ON light and an optical axis of the illumination light.
