Method and system of depth data filling of shadows for image processing
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 9, 2018
Grant Date -
Jan 18, 2018
app pub date -
Jul 14, 2016
filing date -
Jul 14, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
Abstract

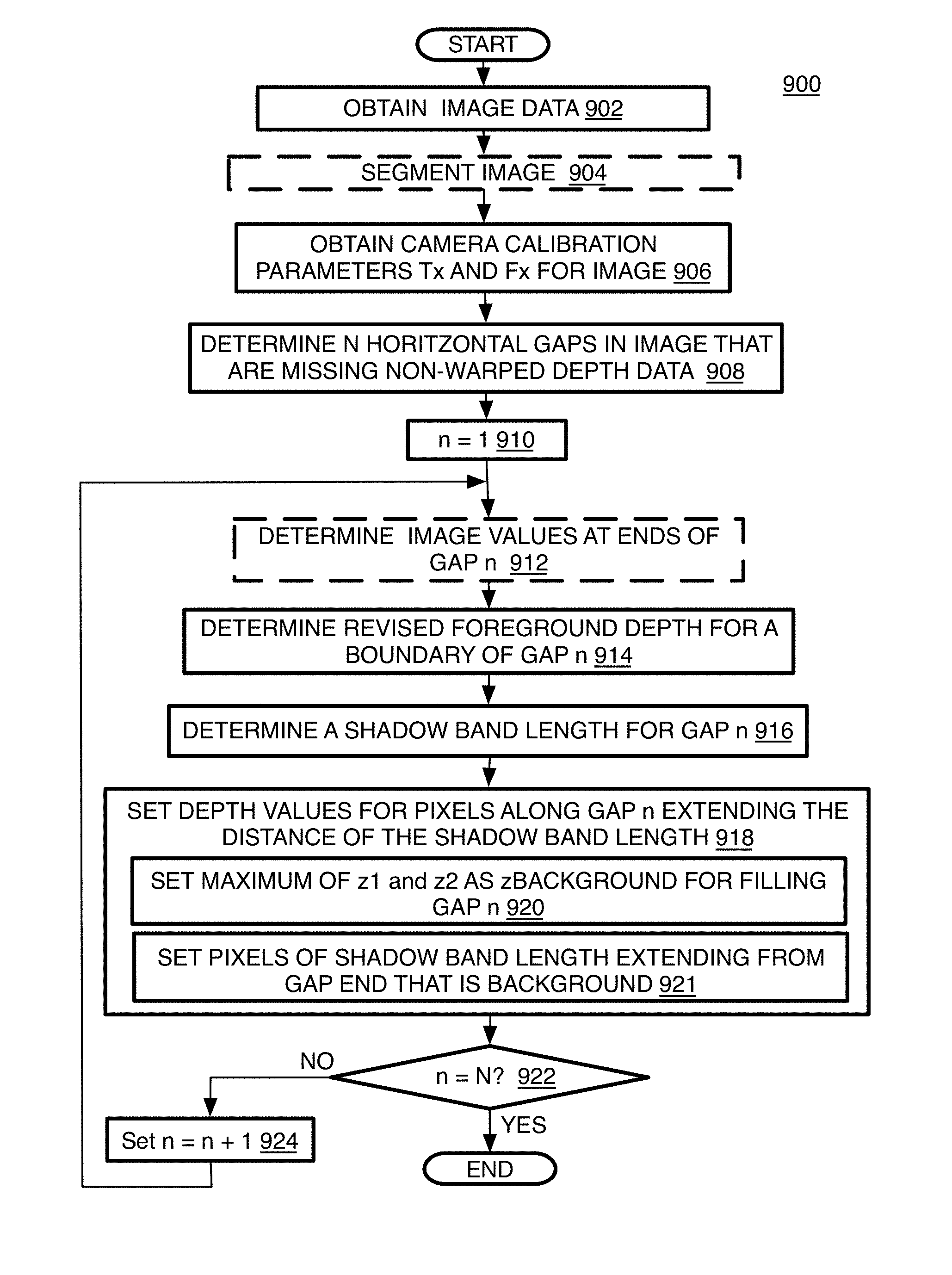

Techniques described herein are related to a system, medium, and method of depth data filling of shadows for image processing comprising obtaining a location of at least one gap of missing depth data on pixel image data of at least one image, calculating a shadow band length corresponding to a size and position of the gap on the image, and calculated by using, at least in part, background and foreground depth values, and providing depth values of multiple pixel locations extending along the shadow band length.
First Claim
Other Claims data not available
Family
+
−
- No Family data available.
International Classification(s)
- 2016 Application Filing Year
- H04N Class
- 18761 Applications Filed
- 14708 Patents Issued To-Date
- 78.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H04N Class
- 27.70 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 9, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 9, 2030 |
