Image stabilization device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 25, 2018
Grant Date -
Jan 18, 2018
app pub date -
May 30, 2017
filing date -
Jul 13, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

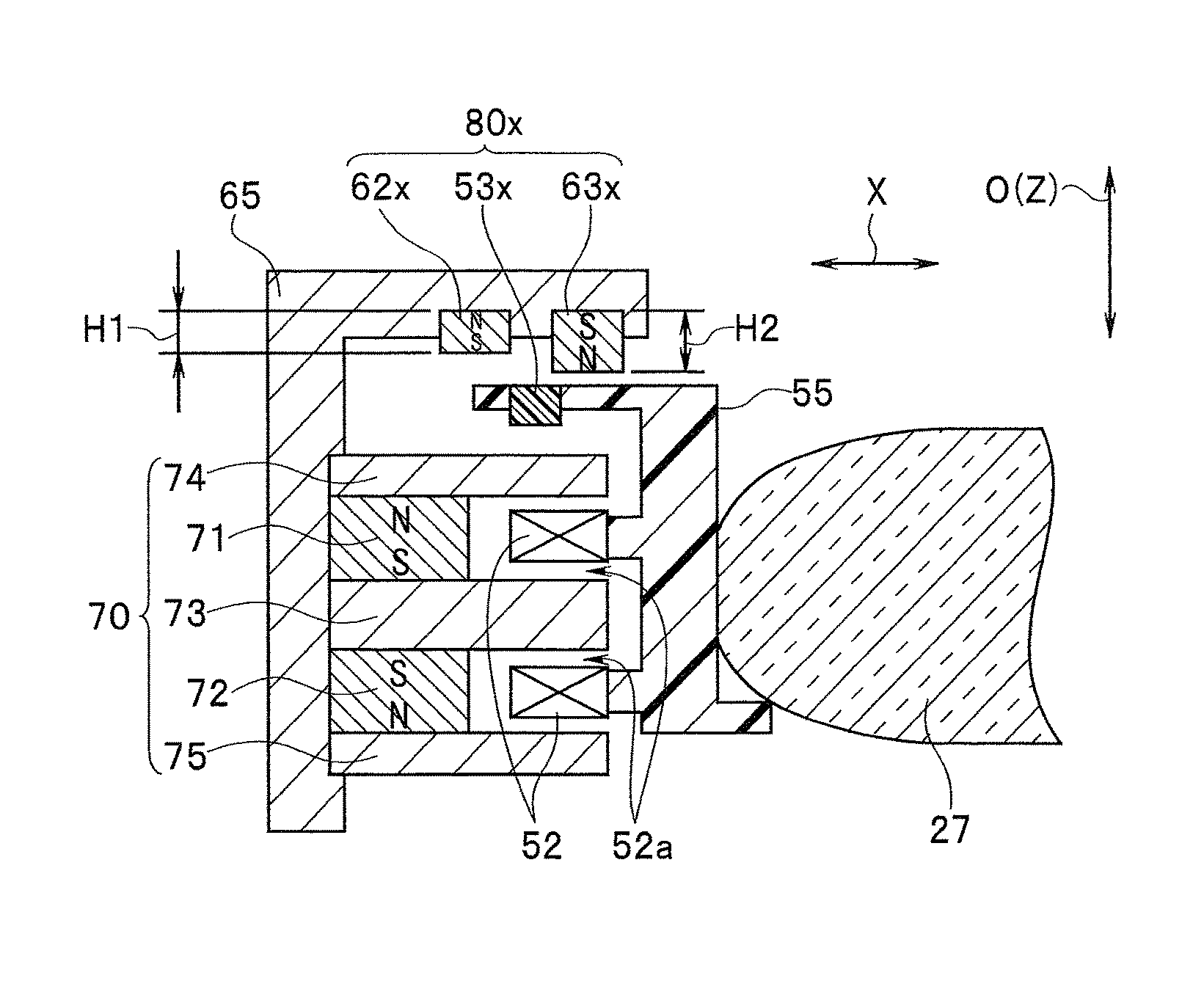

An image stabilization device includes a movable portion including an image pickup lens and a VCM driving portion configured to drive the movable portion relative to a fixed portion, the image stabilization device including: a position detection element arranged on the movable portion; and paired position detection magnets arranged at positions facing the position detection element and arranged on the fixed portion; wherein the paired position detection magnets are a first magnet and a second magnet arranged so that different magnetic poles face a surface of the position detection element; the first magnet and the second magnet are arranged in order along a direction away from an optical axis of a light flux incident on the image pickup lens; and magnitudes of densities of magnetic fluxes reaching the surface of the position detection element from the first magnet and the second magnet, respectively, are mutually different.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H04N Class
- 19055 Applications Filed
- 14406 Patents Issued To-Date
- 75.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H04N Class
- 27.70 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 25, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 25, 2030 |
