Trans-layer robust header-compression technique

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10623230
APP PUB NO 20180019908A1
SERIAL NO

15650515

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

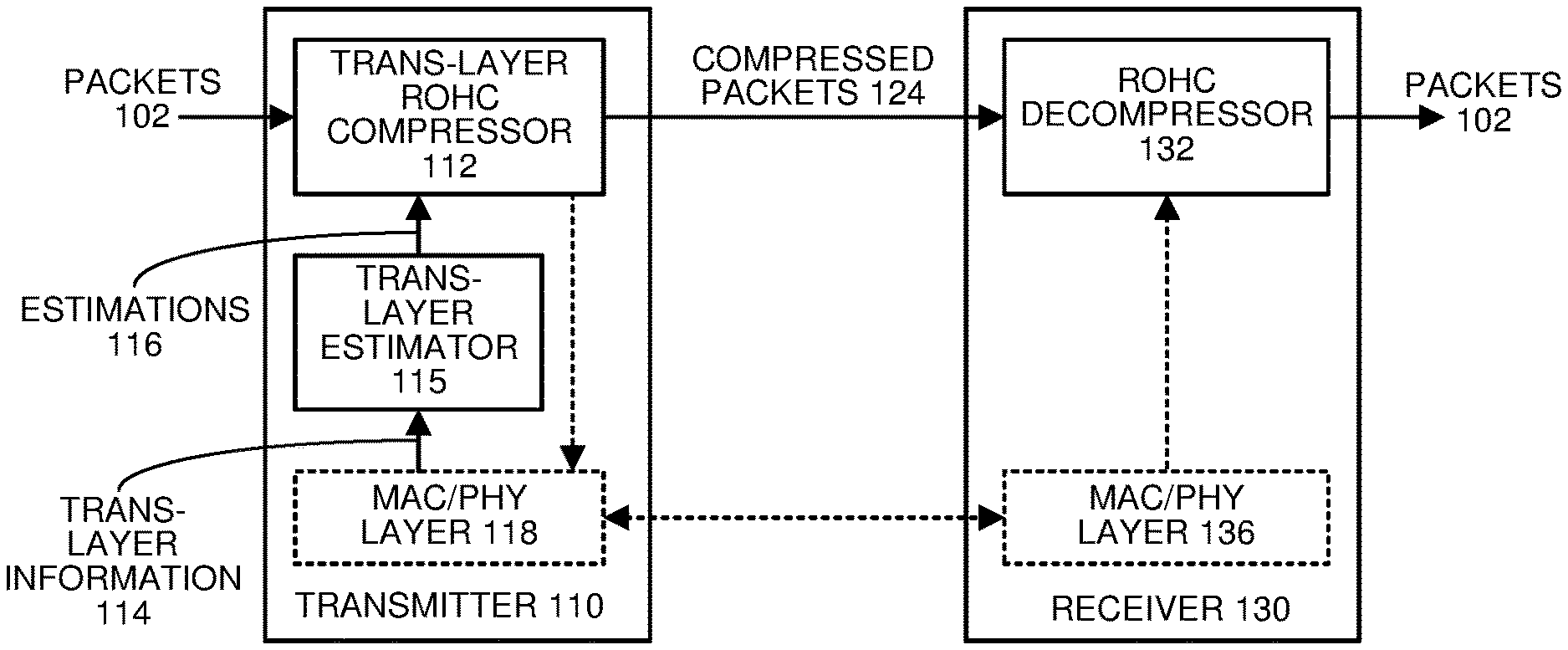

The disclosed embodiments relate to a system that compresses and transmits packets. During operation, the system obtains packets-to-be-compressed at a compressor located at a transmitter that transmits packets through a channel over a network link to a decompressor located at a receiver. The system also obtains cross-layer information regarding the network link from lower-layer network entities in the transmitter. Next, the system uses the cross-layer information to generate estimations for a state of the channel and a state of the decompressor. The system then determines a compression level for the packets-to-be-compressed based on a compression policy and the estimations for the state of the channel and the state of the decompressor. The system subsequently generates packets-to-be-transmitted by compressing headers of the packets-to-be-compressed, wherein the headers are compressed at different levels based on the determined compression level. Finally, the system transmits the packets-to-be-transmitted across a network to the receiver.

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
THE REGENTS OF THE UNIVERSITY OF CALIFORNIA1111 FRANKLIN STREET TWELFTH FLOOR OAKLAND CA 94607-5200

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Ding, Zhi Davis, US 25 130
Wu, Wenhao Davis, US 25 108
