Apparatus and associated method for battery charging

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10491031
APP PUB NO 20180019612A1
SERIAL NO

15644897

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

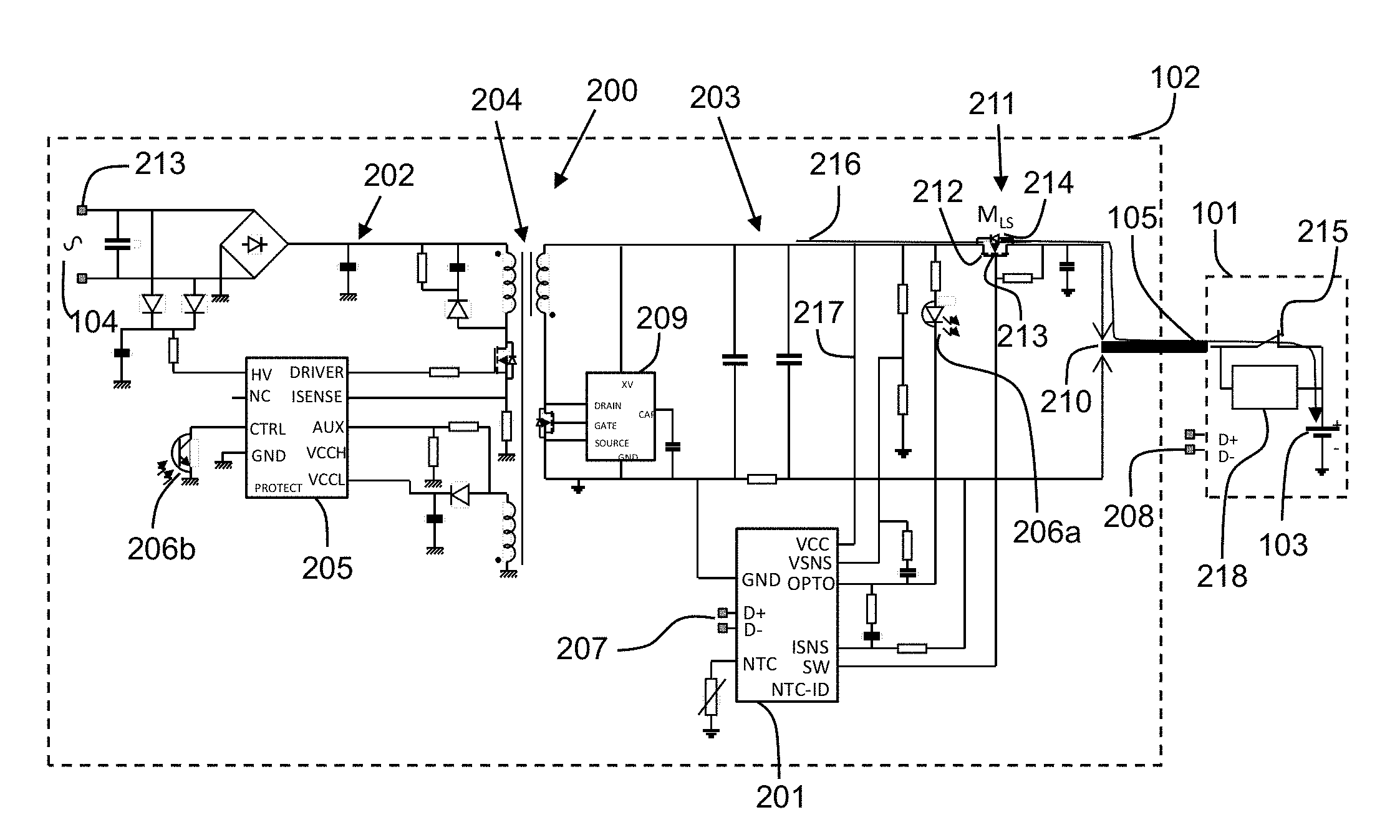

An apparatus configured to,

    in respect of an electronic device comprising a battery for powering the electronic device and a charger configured to receive a mains power supply and, when connected to the electronic device, provide a power output to charge the battery, based on a determination of a failure of a request to increase the power output of the charger to the battery of the electronic device, the failure comprising where at least a requested increase of the power output of the charger by a first predetermined amount fails to yield an increase in the power output of the charger equal to the first predetermined amount within a threshold amount, provide an indication to the electronic device that the charger is disconnected from the mains power supply for causing the electronic device to indicate that the charger is disconnected from the mains power supply to a user of the electronic device.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
NXP B V60 HIGH TECH PARK EINDHOVEN 5656 AG EINDHOVEN NORTH BRABANT PROVINCE

International Classification(s)

loading....
  • 2017 Application Filing Year
  • H02J Class
  • 5376 Applications Filed
  • 3962 Patents Issued To-Date
  • 73.70 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2017201820192020202120222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Degen, Peter Theodorus Johannes Arnhem, NL 17 45
Rooijackers, Cornelis Jozef Petrus Maria Waalre, NL 4 10

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 0 Citation Count
  • H02J Class
  • 0 % this patent is cited more than
  • 6 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges287546415201 - 1011 - 2021 - 3031 - 400255075100125150175200225250275300325350375400425450475500525550575

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 May 26, 2027
11.5 Year Payment $7400.00 $3700.00 $1850.00 May 26, 2031
