Display panel capable of preventing a defect in light emission of an organic light emitting element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 11, 2017
filing date -
Jul 18, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

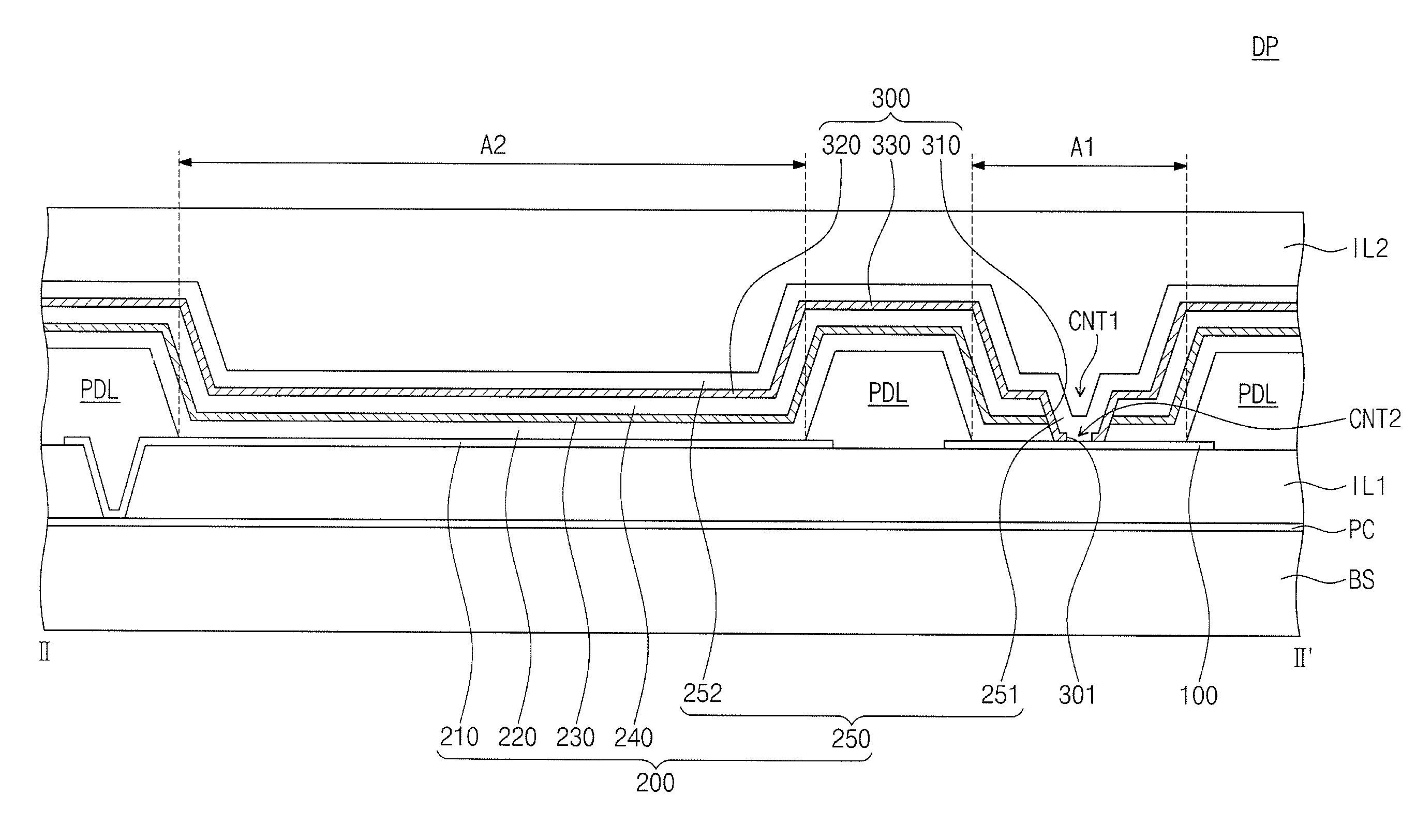

A display panel includes an auxiliary electrode on a base substrate, a first electrode spaced from the auxiliary electrode, a first light emitting unit on the auxiliary electrode and the first electrode, an conductive thin film layer on the first light emitting unit, a second light emitting unit on the conductive thin film layer, a first contact hole through the conductive thin film layer to expose the auxiliary electrode, a insulating layer in the first contact hole, and a second electrode including a first electrode part and a second electrode part, the first electrode part being on the insulating layer in the first contact hole, and the second electrode part overlapping the first electrode and being on the second light emitting unit, wherein the insulating layer is between the first electrode part and the conductive thin film layer.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2017 Application Filing Year
- H01L Class
- 30754 Applications Filed
- 25260 Patents Issued To-Date
- 82.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H01L Class
- 23.71 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 10, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 10, 2030 |
