Method and structure for dual sheet resistance trimmable thin film resistors at same level
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 5, 2018
Issued Date -
Jan 18, 2018
app pub date -
Jul 13, 2016
filing date -
Jul 13, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

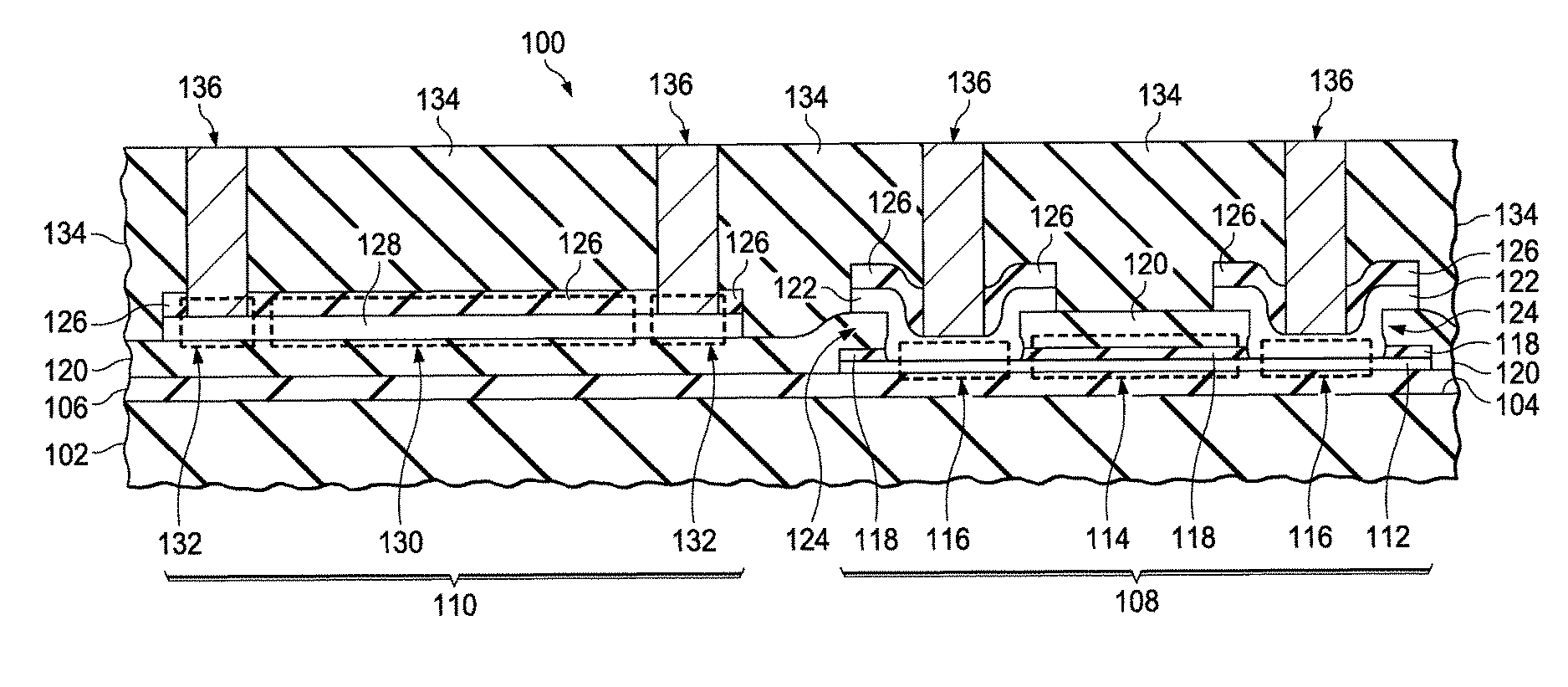

An integrated circuit includes a higher sheet resistance resistor and a lower sheet resistance resistor, disposed in a same level of dielectric layers of the integrated circuit. The higher sheet resistor has a body region and head regions in a higher sheet resistance layer. The lower sheet resistor has a body region and head regions in a lower sheet resistance layer, which is thicker than the higher sheet layer. The higher sheet resistor has an upper head layer contacting the higher sheet layer at each head region of the higher sheet layer. Each upper head layer has a same composition and thickness as the lower sheet layer of the lower sheet resistor. The lower sheet resistor is free of head layers over the lower sheet resistance layer.
