Silicon nitride circuit board and electronic component module using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 23, 2018
Grant Date -
Jan 18, 2018
app pub date -
Jan 26, 2016
filing date -
Feb 2, 2015
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

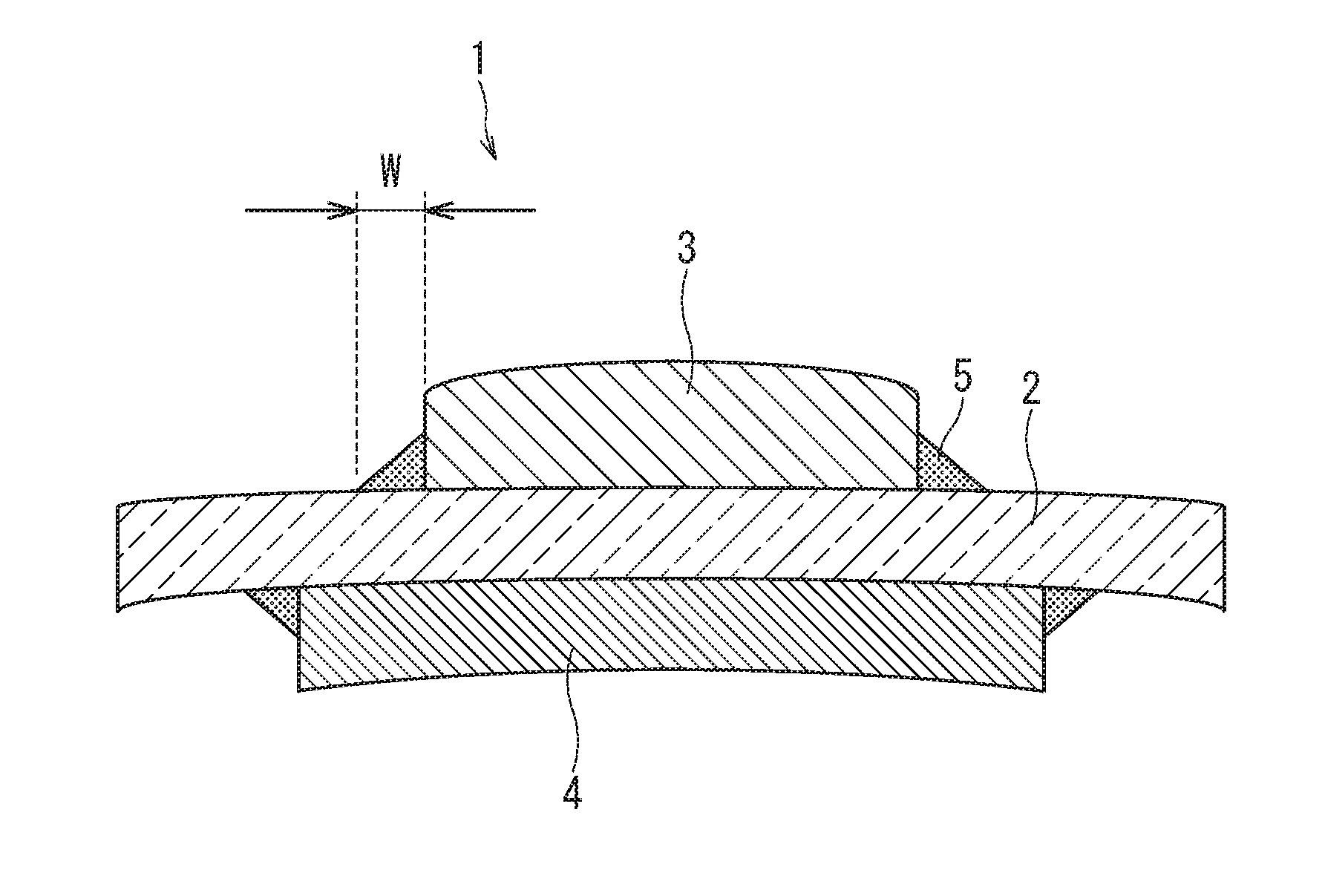

The present invention provides a silicon nitride circuit board in which metal plates are attached on front and rear sides of a silicon nitride substrate having a three-point flexural strength of 500 MPa or higher, wherein assuming that a thickness of the metal plate on the front side is denoted by t1, and a thickness of the metal plate on the rear side is denoted by t2, a numerical relation: |t1−t2|≥0.30 mm is satisfied, and a warp is formed in the silicon nitride substrate so that the silicon nitride substrate is convex toward the metal plate on one of the front side or the rear side; and warp amounts of the silicon nitride substrate in a long-side direction and a short-side direction both fall within a range from 0.01 to 1.0 mm. It is preferable that a longitudinal width (L1) of the silicon nitride substrate falls within a range from 10 to 200 mm, and a transverse width (L2) of the silicon nitride substrate falls within a range from 10 to 200 mm. Due to above structure, even if the silicon nitride circuit board has a large difference in thickness between the metal plates attached on front and rear sides of the silicon nitride substrate, TCT properties can be greatly improved.
