Semiconductor device and casing of the semiconductor device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 6, 2018
Grant Date -
Jan 18, 2018
app pub date -
May 26, 2017
filing date -
Jul 15, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

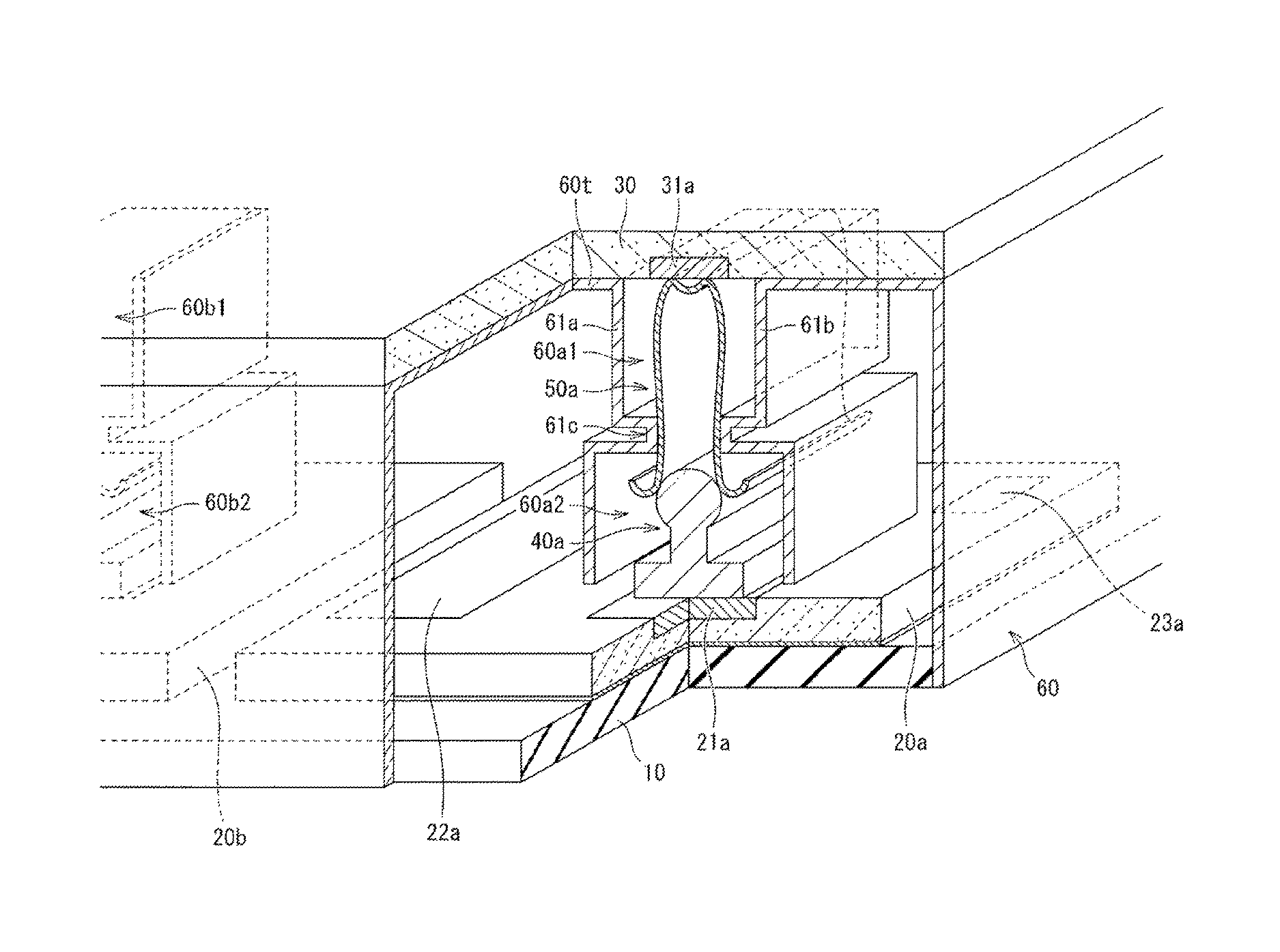

A semiconductor device includes a box-shaped casing including a ceiling wall with a first window, a semiconductor chip having an output electrode and assembled in the casing, a first conductive block disposed in the casing, and a first connection terminal being bent so as to implement an elongated U-shape. The semiconductor device is adapted for electrical connection to a circuit board having a first land. The circuit board is placed on the ceiling wall. The first window is at a position corresponding to the first land. A lower end of the first conductive block is connected to a surface of the output electrode and the first connection terminal contacts to the first conductive block.
