Magnetically-actuated isolated rod couplings for use in a nuclear reactor control rod drive
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2020
Grant Date -
Jan 18, 2018
app pub date -
Jul 11, 2017
filing date -
Jul 13, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

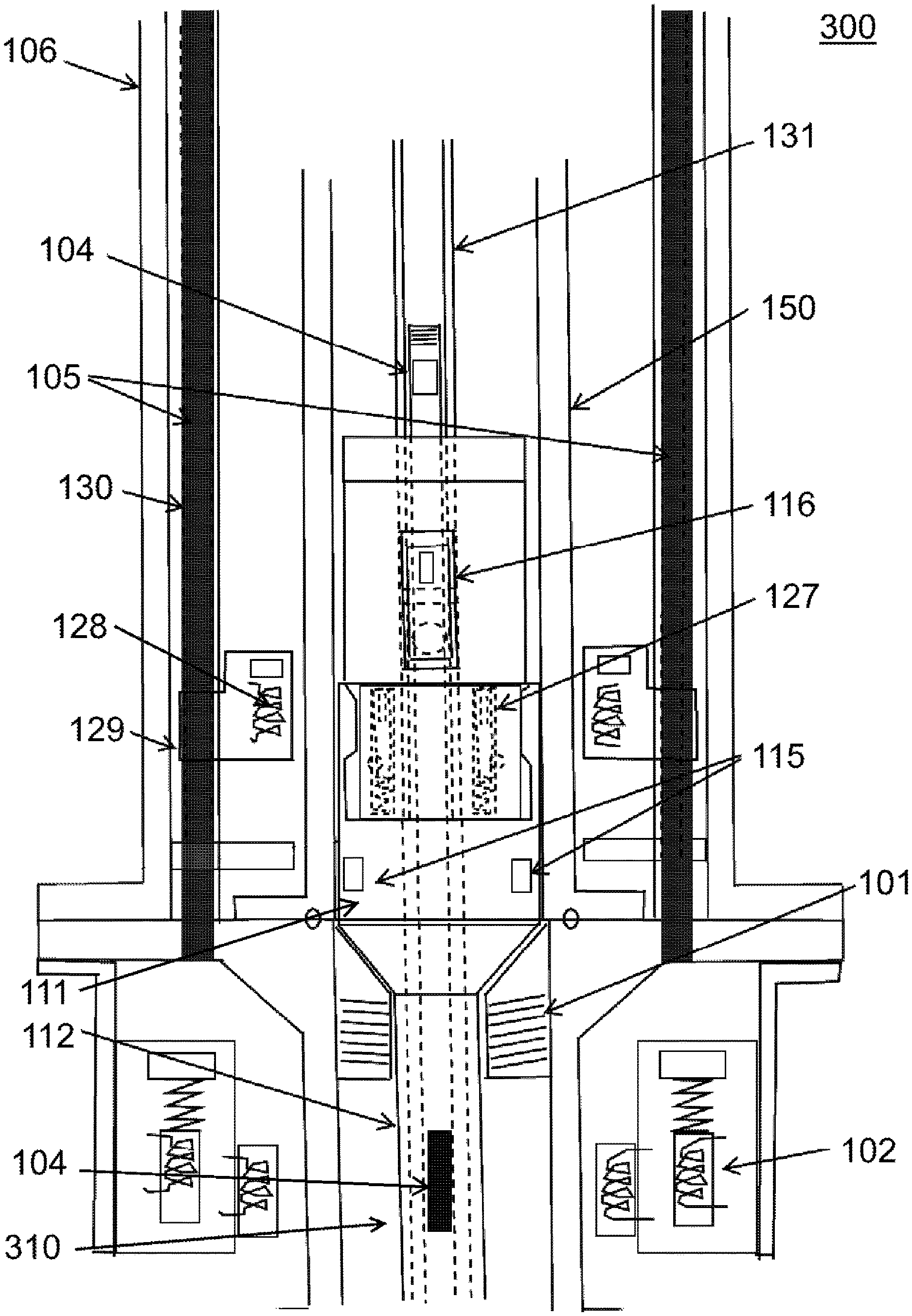

Control rod drives include linearly-moveable control elements inside an isolation barrier. Control rod drives move the control element through a motor and rotor powering a linear screw internal to an isolation barrier. Induction coils may generate magnetic fields and be moveable across a full stroke length of the control element in the reactor. The magnetic fields hold closed a releasable latch to disconnect the control elements from the linear drives. A control rod assembly may join to the control element. The control rod assembly may lock with magnetic overtravel latches inside the isolation barrier to maintain an overtravel position. Overtravel release coils outside the isolation barrier may release the latches to leave the overtravel position. Operation includes moving the magnetic fields and releasable latch together on opposite sides of an isolation barrier to drive the control element to desired insertion points, including full insertion by gravity following de-energization.
