Fixing device and image forming apparatus having nip pad including a center bend line
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 26, 2019
Grant Date -
Jan 18, 2018
app pub date -
Jun 20, 2017
filing date -
Jul 15, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

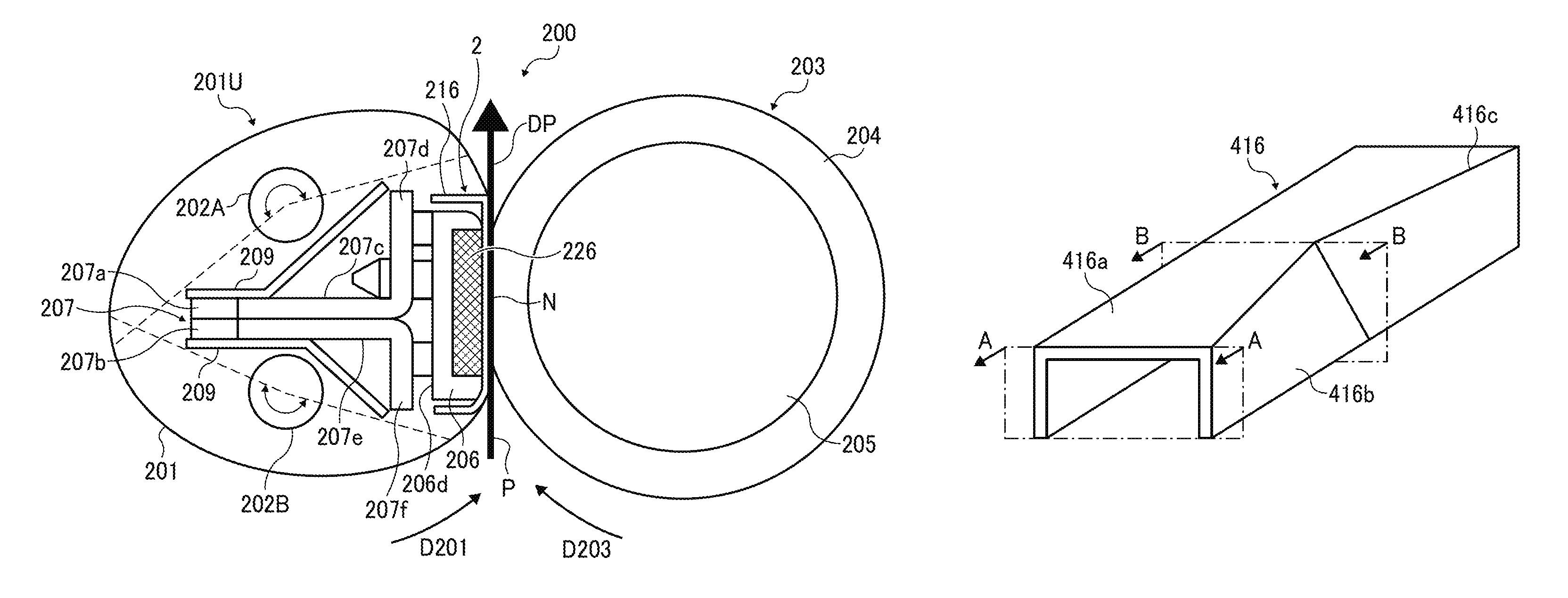

A fixing device includes a nip former including a first face to form a fixing nip, a second face being disposed upstream from the first face in a rotation direction of a rotator and defining a predetermined angle relative to the first face, and a bent portion coupling the first face to the second face. An inner circumferential surface of the rotator slides over the first face. A lateral end accumulation portion and a center accumulation portion are defined by the second face and the bent portion of the nip former and the inner circumferential surface of the rotator. The lateral end accumulation portion is accumulated with a lubricant in a first amount. The center accumulation portion is disposed inboard from the lateral end accumulation portion in an axial direction of the rotator and accumulated with the lubricant in a second amount greater than the first amount.
