Image forming apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 19, 2019
Grant Date -
Jan 18, 2018
app pub date -
Jul 6, 2017
filing date -
Jul 13, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

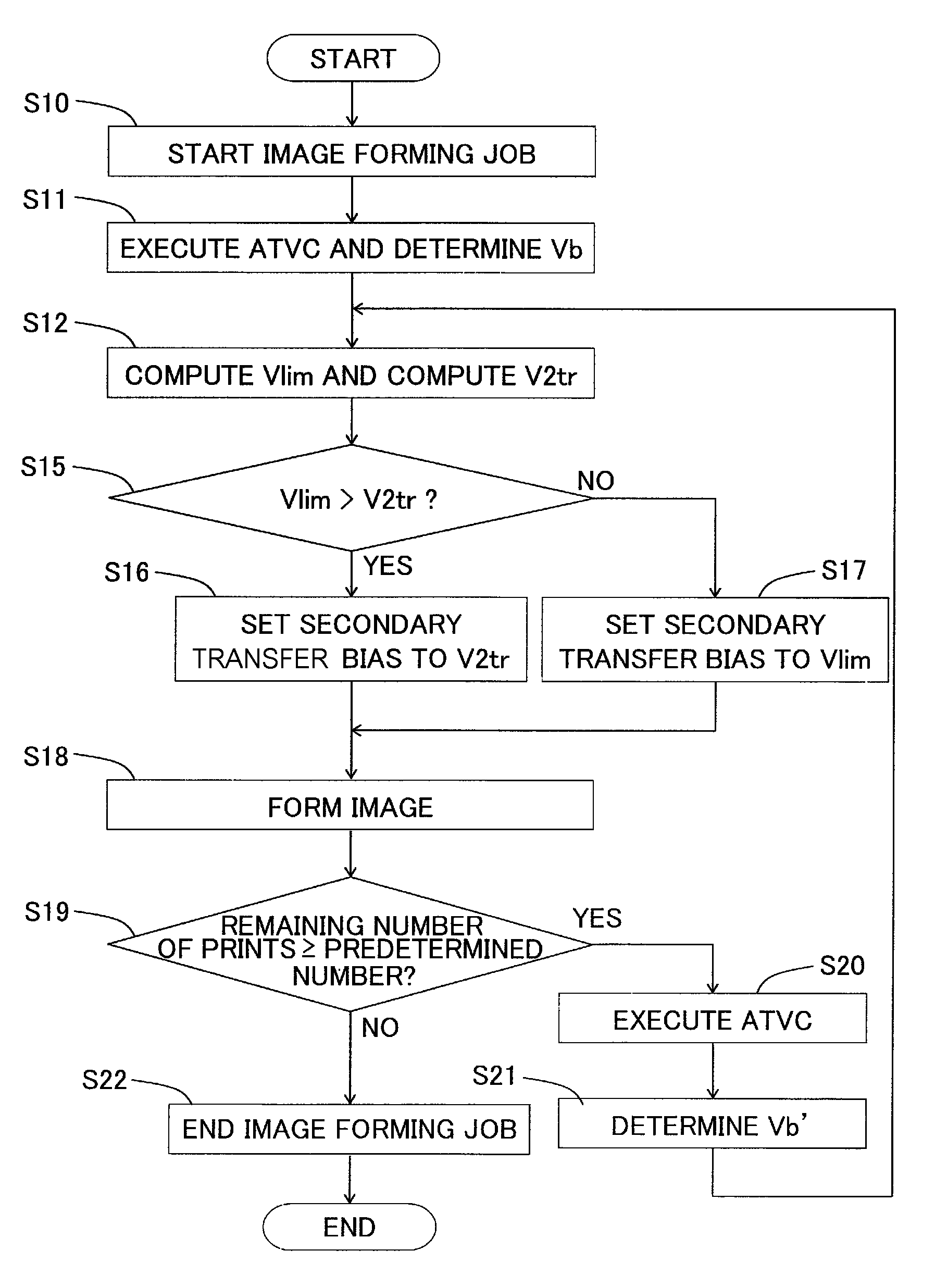

An image forming apparatus includes an image bearing member, a transfer body, a bias applying portion, a current detection unit, and a control unit. The control unit is configured to change the upper limit voltage based on the current detected by the current detection unit in a state where a test bias is applied to the transfer portion during a non-image forming period, and a voltage of the test bias being applied.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2017 Application Filing Year
- G03G Class
- 2629 Applications Filed
- 2246 Patents Issued To-Date
- 85.44 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- G03G Class
- 30.80 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 19, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 19, 2030 |
