Sensor device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 16, 2018
Grant Date -
Jan 18, 2018
app pub date -
Jun 8, 2015
filing date -
Jun 8, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

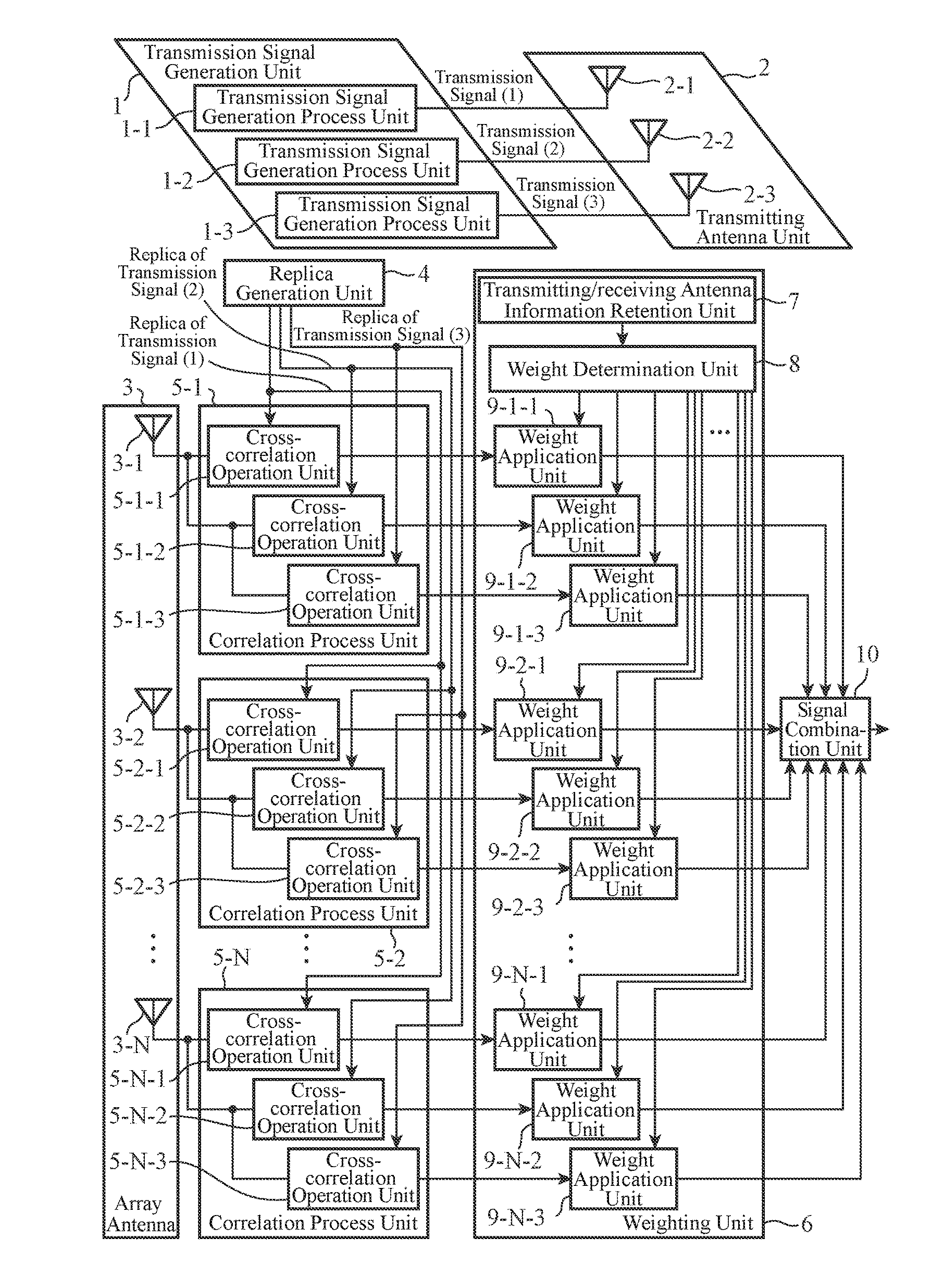

There are provided correlation process units 5-1 (5-2, . . . , and 5-N) for performing a cross-correlation process between replicas of a plurality of mutually orthogonal transmission signals and reception signals of receiving antenna elements 3-1 (3-2, . . . , and 3-N) and outputting a plurality of signals after the cross-correlation process, and a weighting unit 6 for weighting the plurality of signals after the cross-correlation process outputted from the correlation process units 5-1 to 5-N in accordance with the arrangement of transmitting antennas 2-1 to 2-3 and the receiving antenna elements 3-1 to 3-N and an antenna directivity pattern, and a signal combination unit 10 combines the plurality of signals after the cross-correlation process that are weighted by the weighting unit 6.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H04B Class
- 20.43 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 16, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 16, 2030 |
