Magneto-Inductive Flow Measuring Device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Dec 3, 2015
filing date -
Dec 22, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

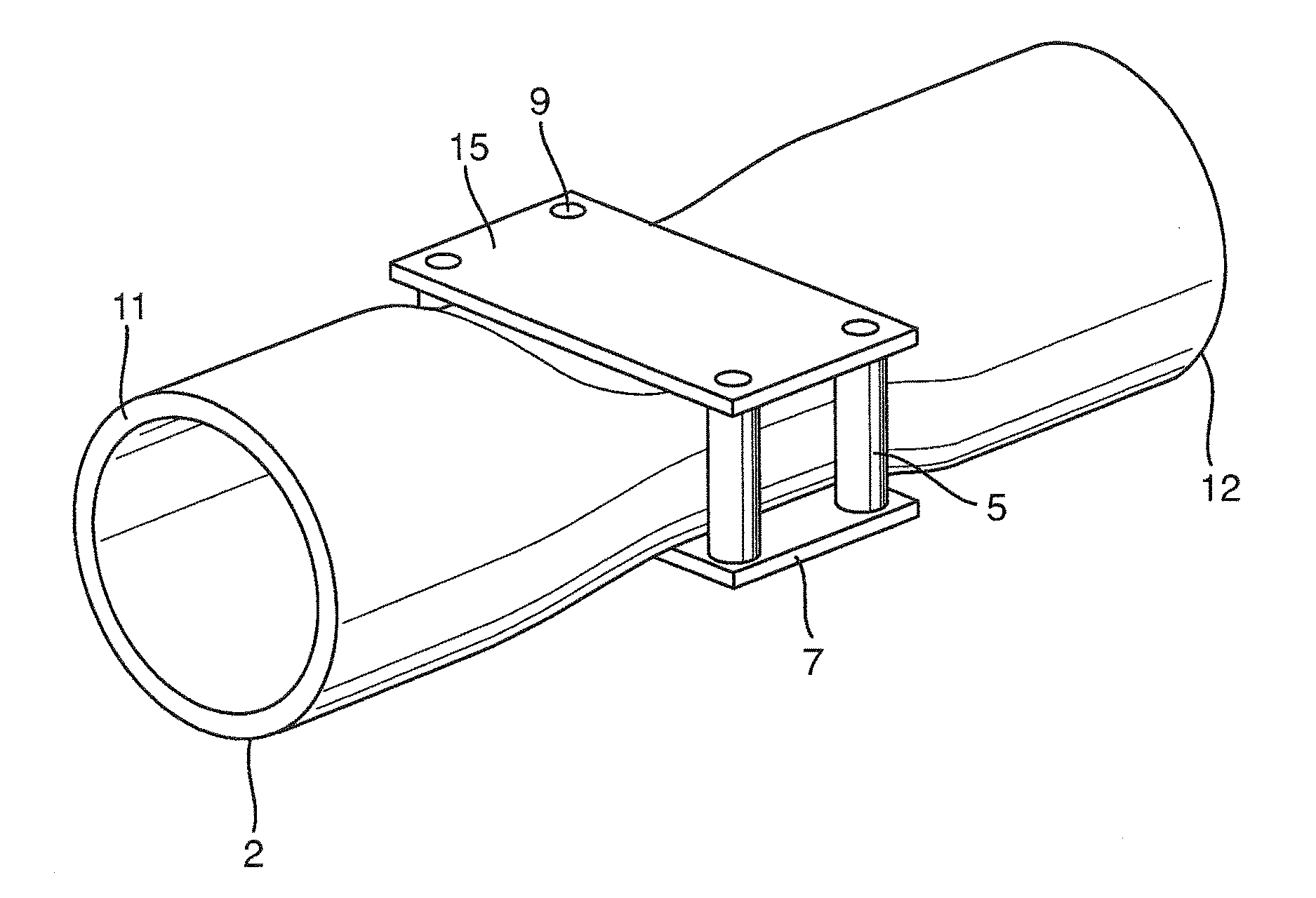

A magneto-inductive flow measuring device (1) comprising a measuring tube (2) on which a magnet system and two or more measuring electrodes (3) are arranged and/or secured,
- wherein the measuring tube (2) has in- and outlet regions (11, 12) with a first cross section andwherein the measuring tube (2) has between the in- and outlet regions (11, 12) a middle segment (10), which has a second cross section,wherein the measuring electrodes (3) are arranged in the middle segment (10) of the measuring tube (2),wherein the middle segment (10) at least in the region of the measuring electrodes (3) is surrounded by a tube holder (15), which guards against cross-sectional deformation of the second cross section.
First Claim
Other Claims data not available
