VEHICLE LAMP ASSEMBLY WITH REAR-LIT OLED
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 12, 2016
filing date -
Jul 12, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

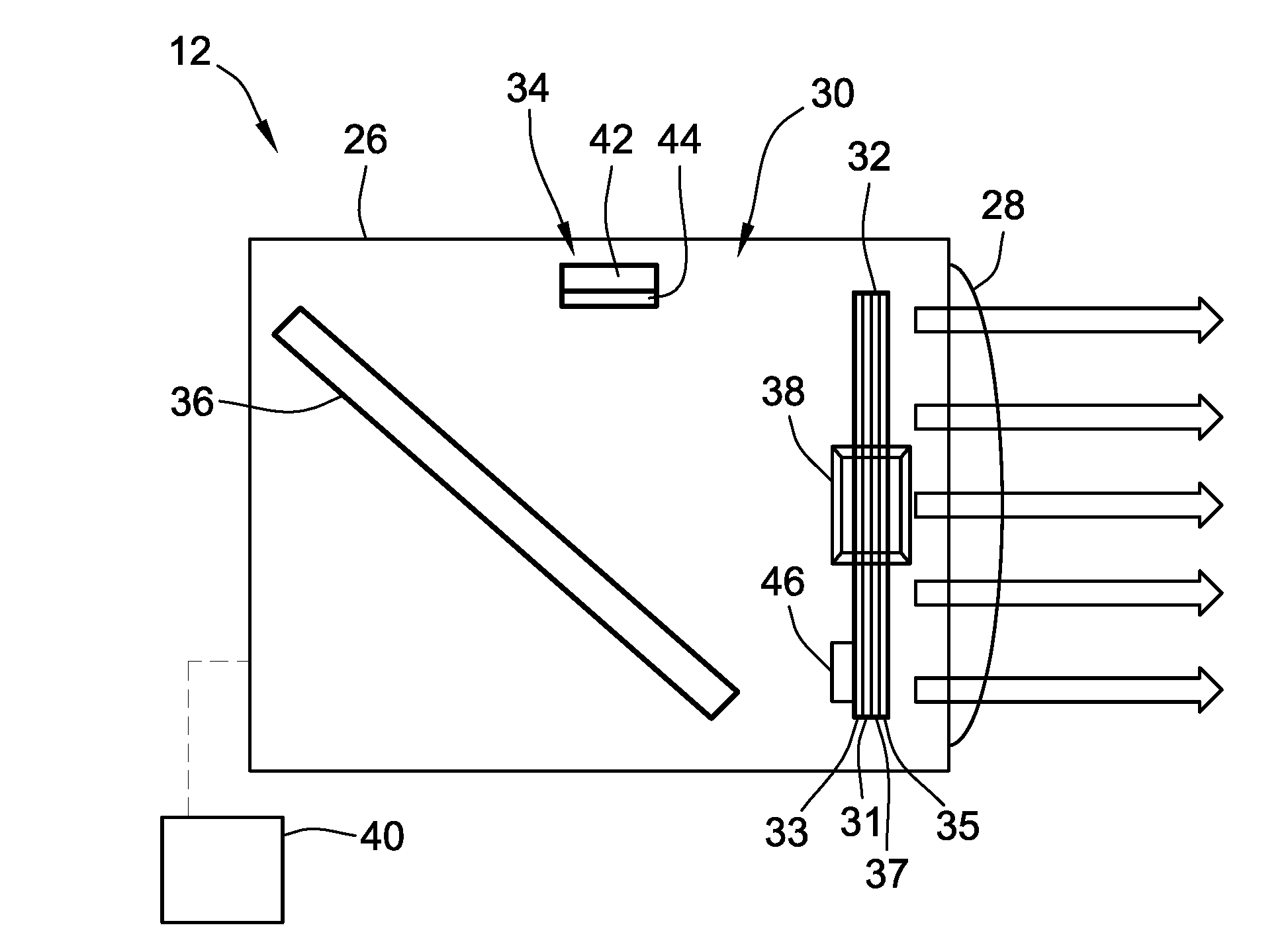

Lamp assemblies, motorized vehicles with lamp assemblies, and methods of constructing and methods of using lamp assemblies are disclosed. A lamp assembly is disclosed that includes a lamp housing that is configured to attach to a motor vehicle's front-end or rear-end vehicle structure. A transparent lens is attached to the lamp housing. The lamp assembly also includes an organic light emitting diode (OLED) panel with a transmissive substrate layer that is attached to the lamp housing. An electroluminescent layer, which generates light in response to an electric signal, is coupled to the transmissive substrate layer. The electroluminescent layer is configured to selectively emit light through the lens. A light source is also attached to the lamp housing and is configured to emit light through the OLED panel and out through the lens.
