Endless drive arrangement for hybrid vehicle using two-armed tensioner with non-orbiting arms
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 29, 2020
Grant Date -
Jan 18, 2018
app pub date -
Feb 8, 2016
filing date -
Feb 6, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

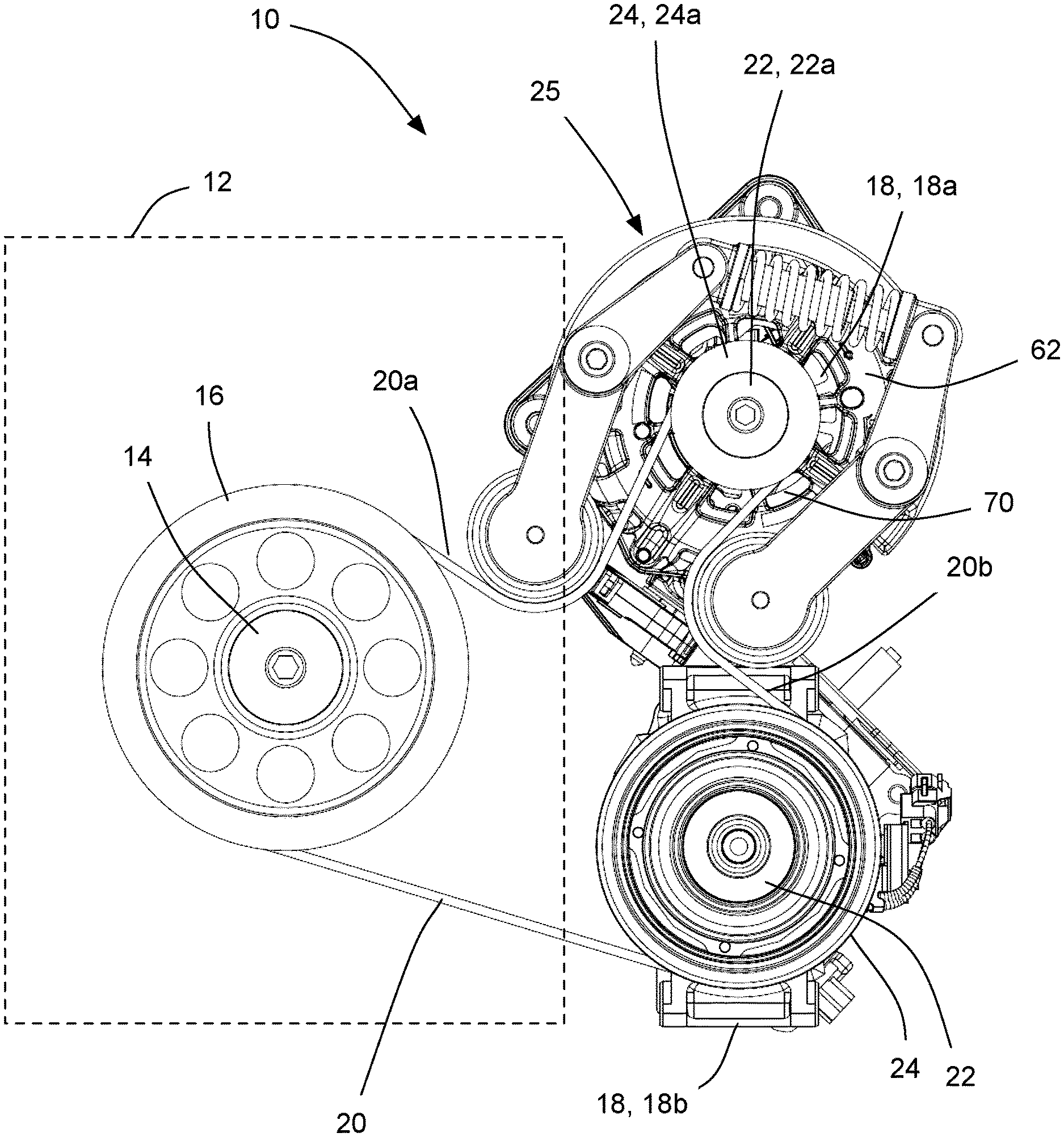

In an aspect, a tensioner is provided for tensioning a belt and includes first and second tensioner arms having first and second pulleys respectively. The first and second pulleys are configured for engagement with first and second belt spans, and are biased in first and second free arm directions respectively. A second tensioner arm stop is positioned to limit the movement of the second tensioner arm in a direction opposite the second free arm direction. The second tensioner arm stop is positioned such that, in use, the second pulley is engaged with the endless drive member while the second tensioner arm is engaged with the second tensioner arm stop throughout a first selected range of operating conditions.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B60K Class
- 2914 Applications Filed
- 2276 Patents Issued To-Date
- 78.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60K Class
- 38.23 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 29, 2032 |
