Electromagnetically actuable brake device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 9, 2021
Grant Date -
Jan 18, 2018
app pub date -
Nov 13, 2015
filing date -
Dec 16, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

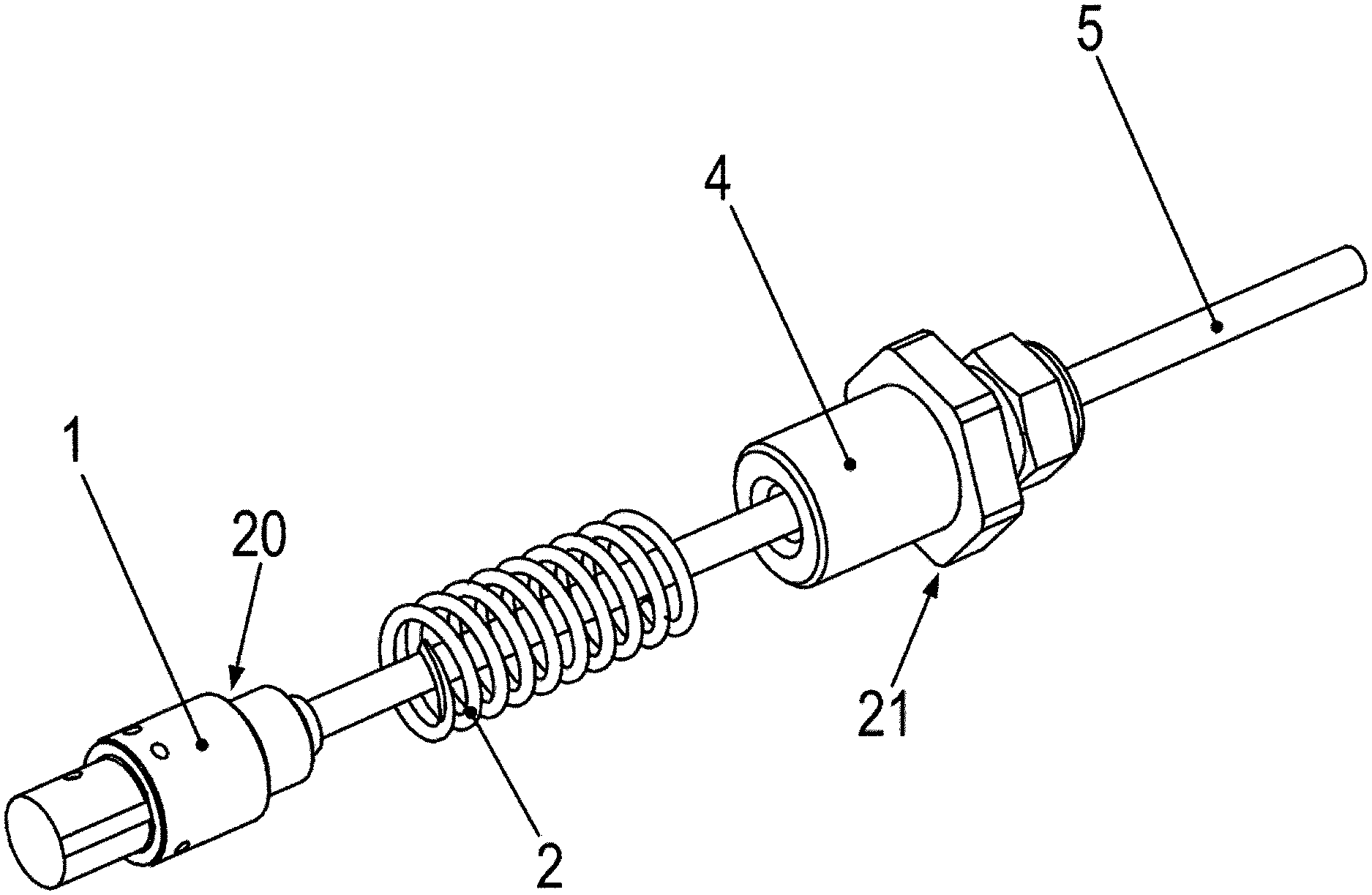

An electromagnetically actuable brake device includes: a coil shell, in particular of the solenoid, an armature disk, which is connected to the coil shell in a torque-proof yet displaceable manner, a sensor having a sensor housing, a spring part, and a screwed cable gland. The coil shell has a stepped through bore, the sensor housing of the sensor has a stepped configuration, the screwed cable gland is situated at an end of the bore, in particular is screwed into a threaded section of the bore, the spring part is situated in the bore between the screwed cable gland and the sensor housing, the spring part is braced on a step of the sensor housing on one side and on the screwed cable gland on the other, and the sensor housing is pressed against a step of the bore, in particular by the spring part.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- H02K Class
- 2569 Applications Filed
- 1988 Patents Issued To-Date
- 77.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02K Class
- 0 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 9, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 9, 2032 |
