Device for retaining of lubricants in rolling-element bearings, rolling-element bearing subassemblies, and method for assembling a rolling-element bearing subassembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 20, 2020
Grant Date -
Jan 18, 2018
app pub date -
Mar 11, 2016
filing date -
Mar 12, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

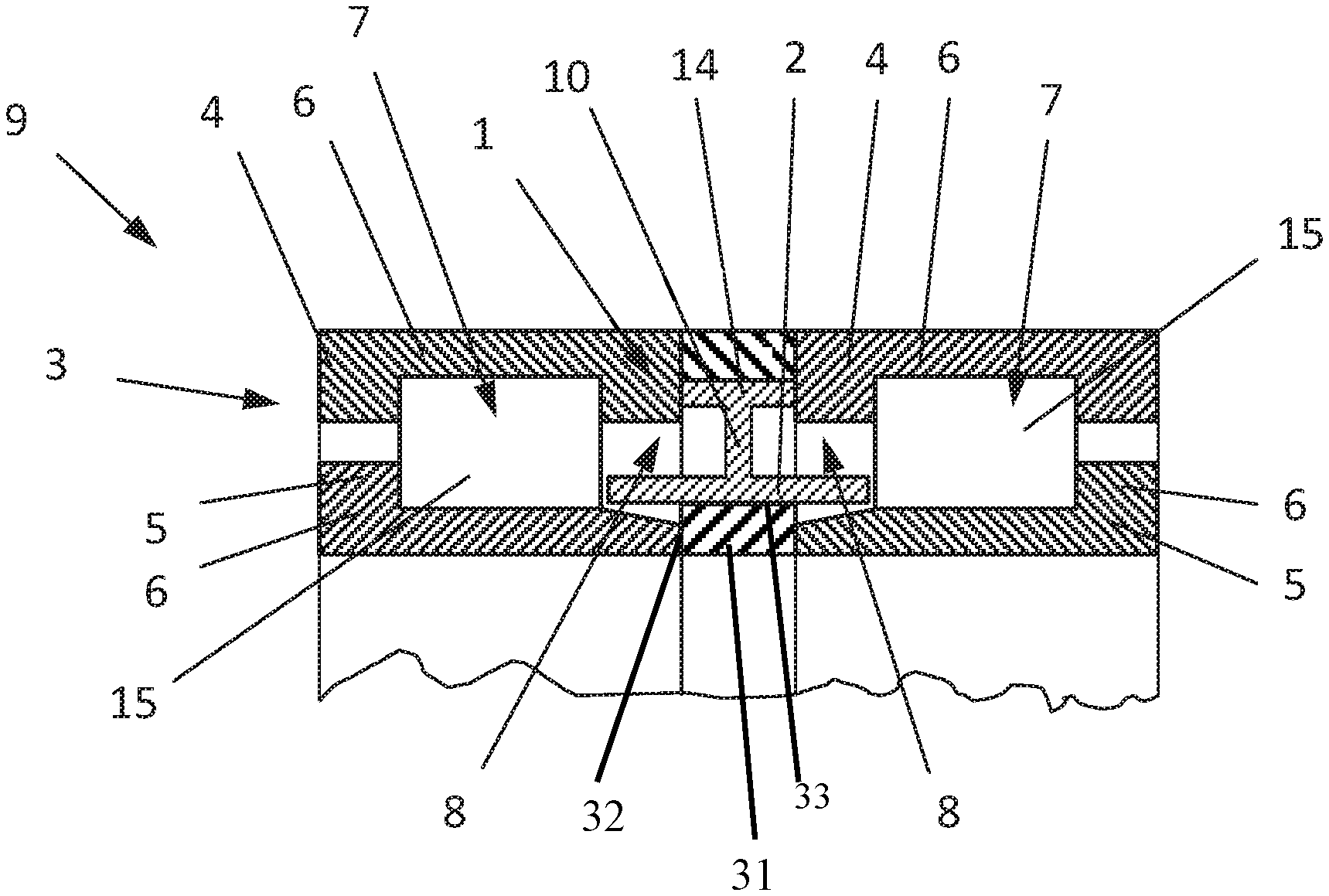

A rolling-element bearing subassembly includes a first bearing ring having an axial face lying in a plane and a plurality of rolling elements on a running surface of the first bearing ring. The first bearing ring is connectable to a second bearing ring to form a rolling-element bearing. An annular retaining body having a first leg connected to a second leg by a bridge, the first leg being shorter than the second leg, is mounted on an axial face of the first bearing ring with the first leg contacting the axial face so that the bridge is located on a first side of the plane and the second leg extends through the plane to define an annular gap between a portion of the first bearing ring and the bridge and a portion of the second leg for retaining a lubricant.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F16C Class
- 1479 Applications Filed
- 1109 Patents Issued To-Date
- 74.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16C Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 20, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 20, 2032 |
