Model based bump-less transfer between passive and active mode operation of three-way check valve for liquid fuel delivery in gas turbine systems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 15, 2019
Grant Date -
Jan 18, 2018
app pub date -
Jul 14, 2016
filing date -
Jul 14, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

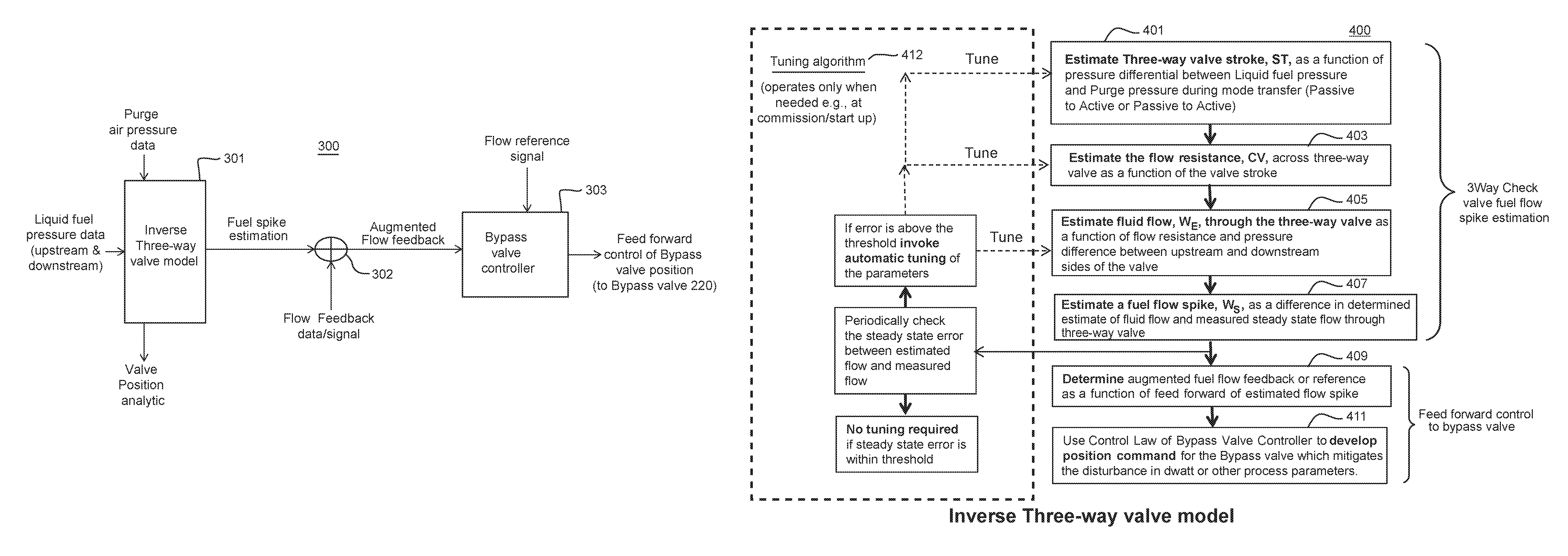

A method using an inverse three-way valve model with feed-forward fuel flow control is provided for controlling liquid fuel flow in a turbine power generation system to achieve a bump-less driven watts (dwatt) power output during fuel mode transitions between passive mode and active mode operations of a three-way check valve that delivers liquid fuel to the turbine combustor nozzles. The method utilizes an inverse fluid flow model for a three-way check valve which is based upon a valve position surrogate for the three-way check valve to develop a calculated estimate of a fuel spike/dwatt oscillation likely to occur during mode transitions of the three-way check valve and to produce a feed-forward control used to modulate a fuel path bypass valve within the turbine fuel supply circulation system that provides the liquid fuel to the three-way valve during transfers of valve operation between passive and active mode operations.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02C Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 15, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 15, 2031 |
