COMBINATION LOCK
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 14, 2017
filing date -
Jul 14, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

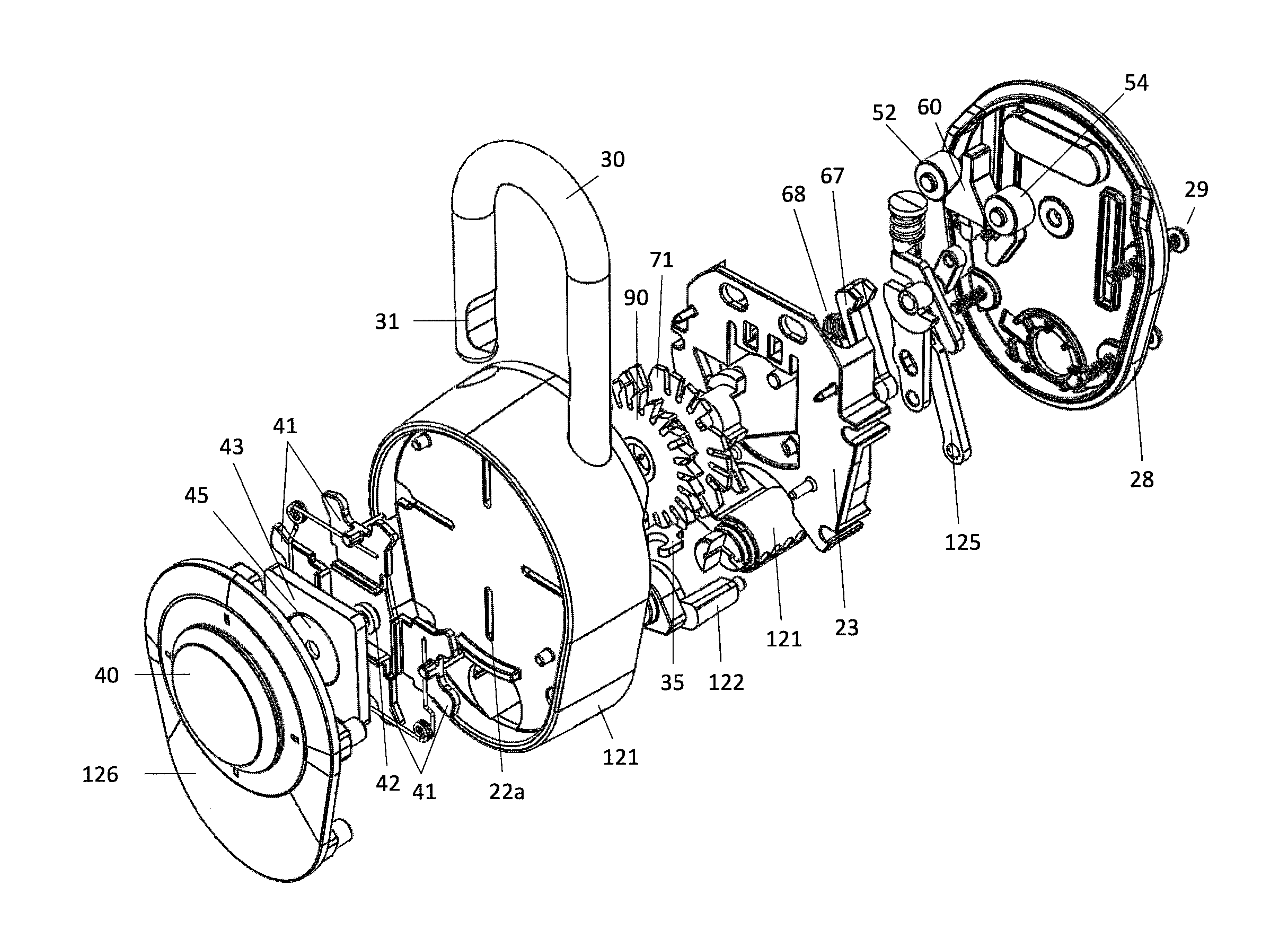

A padlock includes a lock body, a locking element movable between a locked position and an unlocked position, a latch, a user manipulable lock interface, an actuator mechanism, and a counter member. When the lock interface is operated to a sequence of N correct code entry conditions, the latch is moved from an initial locked position to an unlocked position. When the lock interface is operated to any one of the plurality of code entry conditions, the actuator mechanism engages the counter member and incrementally advances the counter member toward a stop position. When the lock interface is operated to a sequence of N code entry conditions in which at least one of the sequence of N code entry conditions is an incorrect code entry condition, the counter member is moved from the start position to the stop position before the latch can be advanced to the unlocked position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- E05B Class
- 26.71 % this patent is cited more than
- 7 Age
