STRETCH WRAPPING MACHINE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Feb 4, 2016
filing date -
Feb 9, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

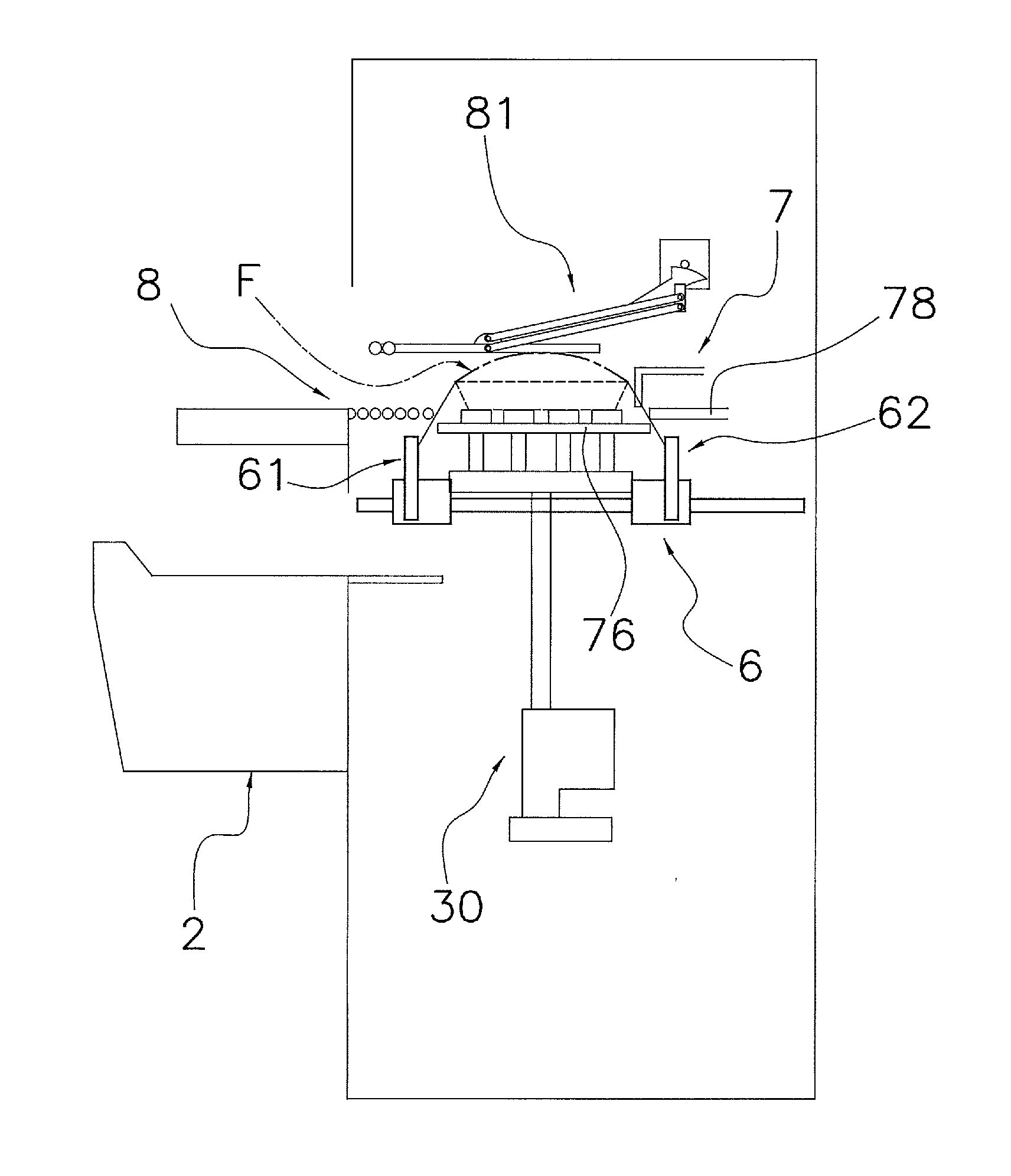

Provided is a stretch wrapping machine that can stably convey film even in a case where, for the purpose of wrapping, a holding component that holds the film is provided separately from belts for conveyance. The stretch wrapping machine is equipped with conveyance devices (22) having belt conveyance units and belt pressing mechanisms, a clamp device (23), a wrapping station, and a control device (9). At the wrapping station, product is pushed against film held by the clamp device (23), and the product is wrapped by the film. The belt conveyance units have upper belts and lower belts that sandwich end portions of the film. Pressing members (221e) of the belt pressing mechanisms apply force to the upper belts so that the force with which the upper belts and the lower belts sandwich the film increases. Additionally, the control device (9) controls the belt pressing mechanisms so that during conveyance of the film the force resulting from the pressing members (221e) acts on the upper belts and so that after conveyance of the film the force resulting from the pressing members (221e) that had acted on the upper belts is cancelled.
First Claim
Other Claims data not available
