Arrangement in a vehicle cabin with folding seat protected from impacts
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 3, 2019
Grant Date -
Jan 18, 2018
app pub date -
Aug 15, 2017
filing date -
Feb 18, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

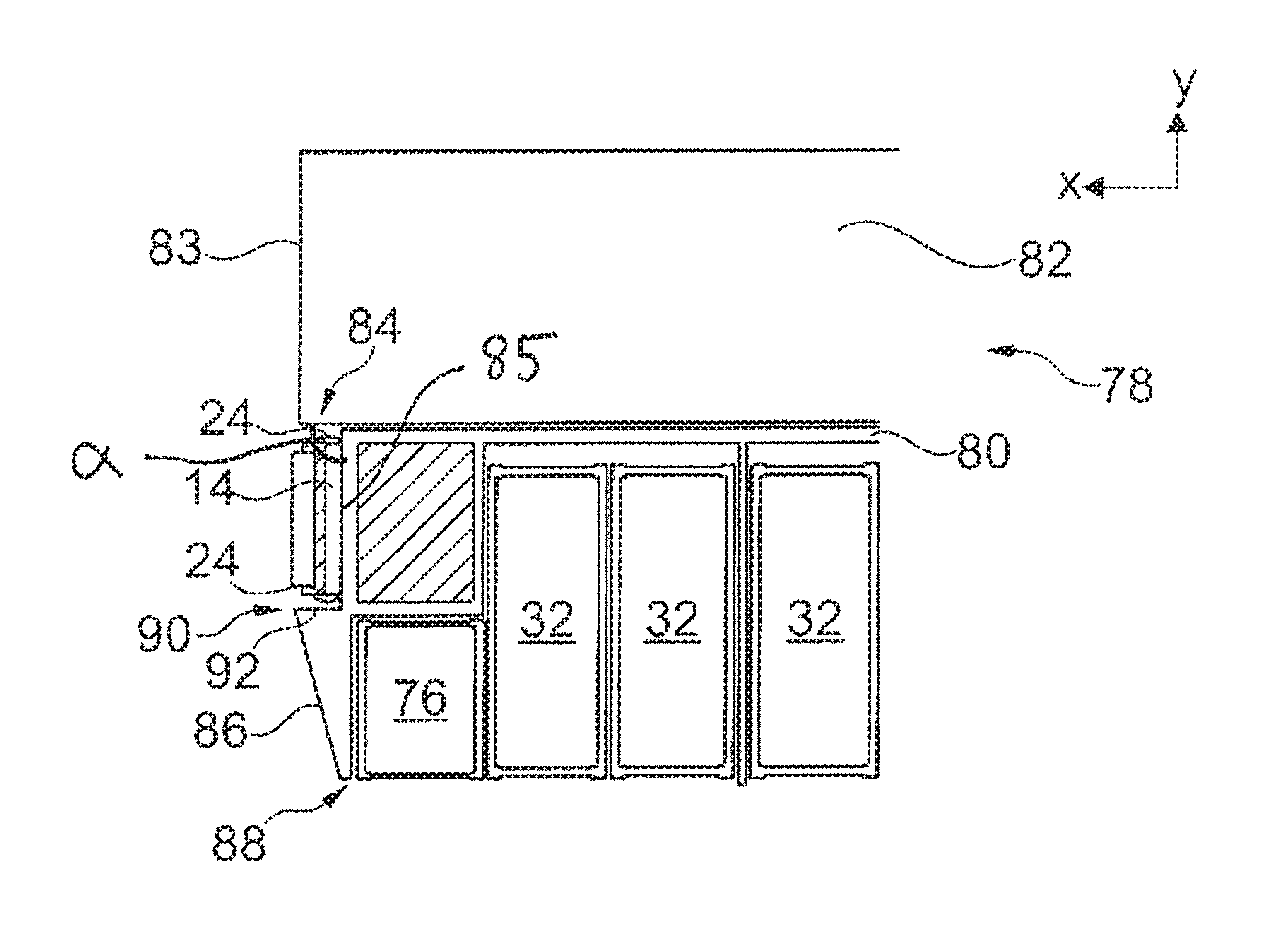

An arrangement in a cabin of a vehicle includes at least one cabin monument having a first wall and at least one second wall, at least one folding seat with an installation width occupied due to a back side of the folding seat and an installation depth occupied due to a lateral surface of the seat frame of the folding seat, and a delimiting device. At least one of the at least one second walls is arranged at an angle of at least 45° relative to the first wall. At least one of the at least one second walls extends from the first wall at least about the installation depth along der lateral surface of the folding seat. The delimiting device is arranged substantially parallel to the first wall on a side of the second wall farthest from the first wall.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B64D Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 3, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 3, 2031 |
