Torque converter lockup control
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 22, 2019
Grant Date -
Jan 18, 2018
app pub date -
Jul 18, 2016
filing date -
Jul 18, 2016
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

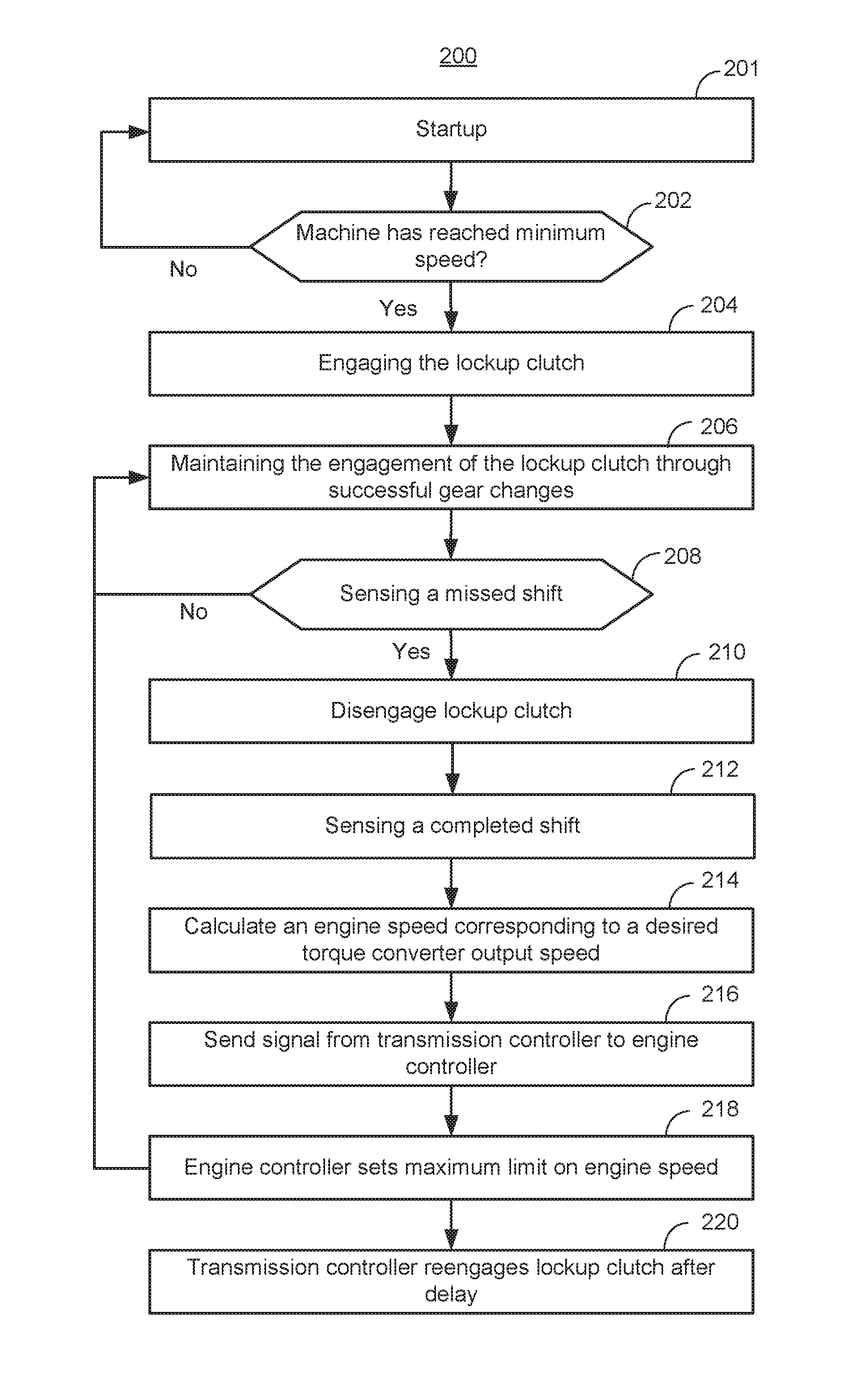

A system for managing a lockup clutch in an off-road truck includes an engine, a transmission and a torque converter coupled between the engine and the transmission. The torque converter has a lockup clutch that when engaged directly couples the engine to the transmission. The system also includes a transmission controller that disengages the lockup clutch responsive to sensing a missed shift in the transmission, and subsequent to sensing a completed shift, sets an engine speed limit corresponding to a gear associated with the completed shift, and reengages the lockup clutch.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
CATERPILLAR INC | 100 NE ADAMS STREET PEORIA IL 61629-6490 UNITED STATES OF AMERICA |
International Classification(s)

- 2016 Application Filing Year
- B60W Class
- 2822 Applications Filed
- 2355 Patents Issued To-Date
- 83.46 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Durbin, Raymond E | Metamora, US | 1 | 0 |
# of filed Patents : 1 Total Citations : 0 | |||
Hull, Mark E | Germantown Hills, US | 13 | 1420 |
# of filed Patents : 13 Total Citations : 1420 | |||
Hynes, Jeffrey | Tucson, US | 3 | 2 |
# of filed Patents : 3 Total Citations : 2 | |||
Johnson, Matthew A | Vail, US | 58 | 1170 |
# of filed Patents : 58 Total Citations : 1170 | |||
Morris, Arthur Melvin | Peoria, US | 1 | 0 |
# of filed Patents : 1 Total Citations : 0 | |||
Steffes, Adam L | Washington, US | 1 | 0 |
# of filed Patents : 1 Total Citations : 0 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- B60W Class
- 0 % this patent is cited more than
- 6 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 22, 2026 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 22, 2030 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
