Energy absorbing structure of vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 3, 2018
Issued Date -
N/A
app pub date -
Jan 24, 2017
filing date -
Jul 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

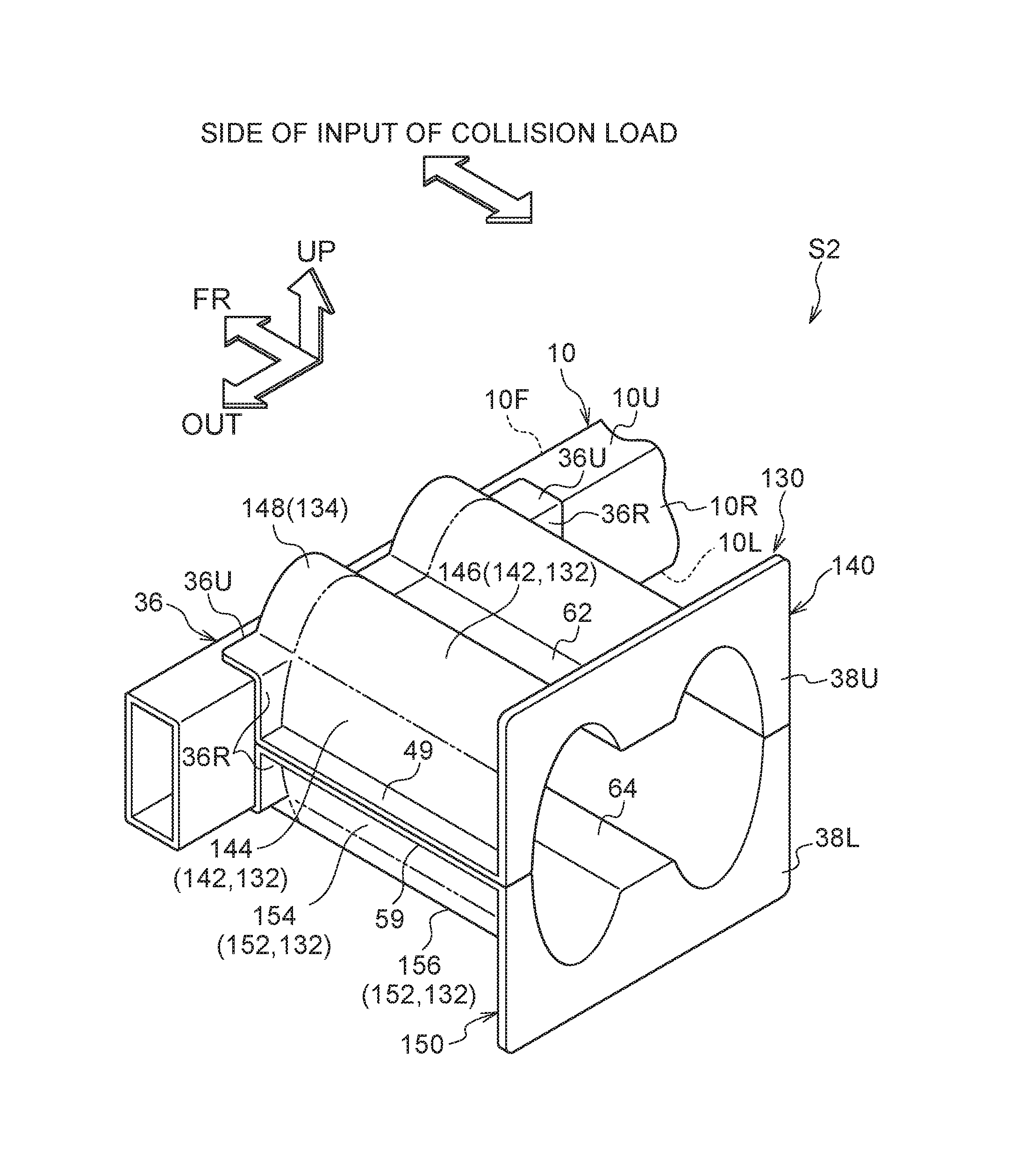

An energy absorbing structure of a vehicle of the present invention has: a bumper reinforcement positioned at a vehicle front end portion or a vehicle rear end portion, the bumper reinforcement extending in a vehicle transverse direction; and a crash box made of a fiber-reinforced resin, the crash box being disposed at a side opposite a side of input of collision load to the bumper reinforcement, and the crash box being structured to include a crash box main body having a closed cross-sectional structure. An upper portion and a lower portion of the crash box main body do not overlap the bumper reinforcement as seen from a vehicle longitudinal direction.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60R Class
- 21.41 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 3, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 3, 2029 |
