Vehicle warning control apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 27, 2018
Issued Date -
N/A
app pub date -
Jul 12, 2017
filing date -
Jul 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

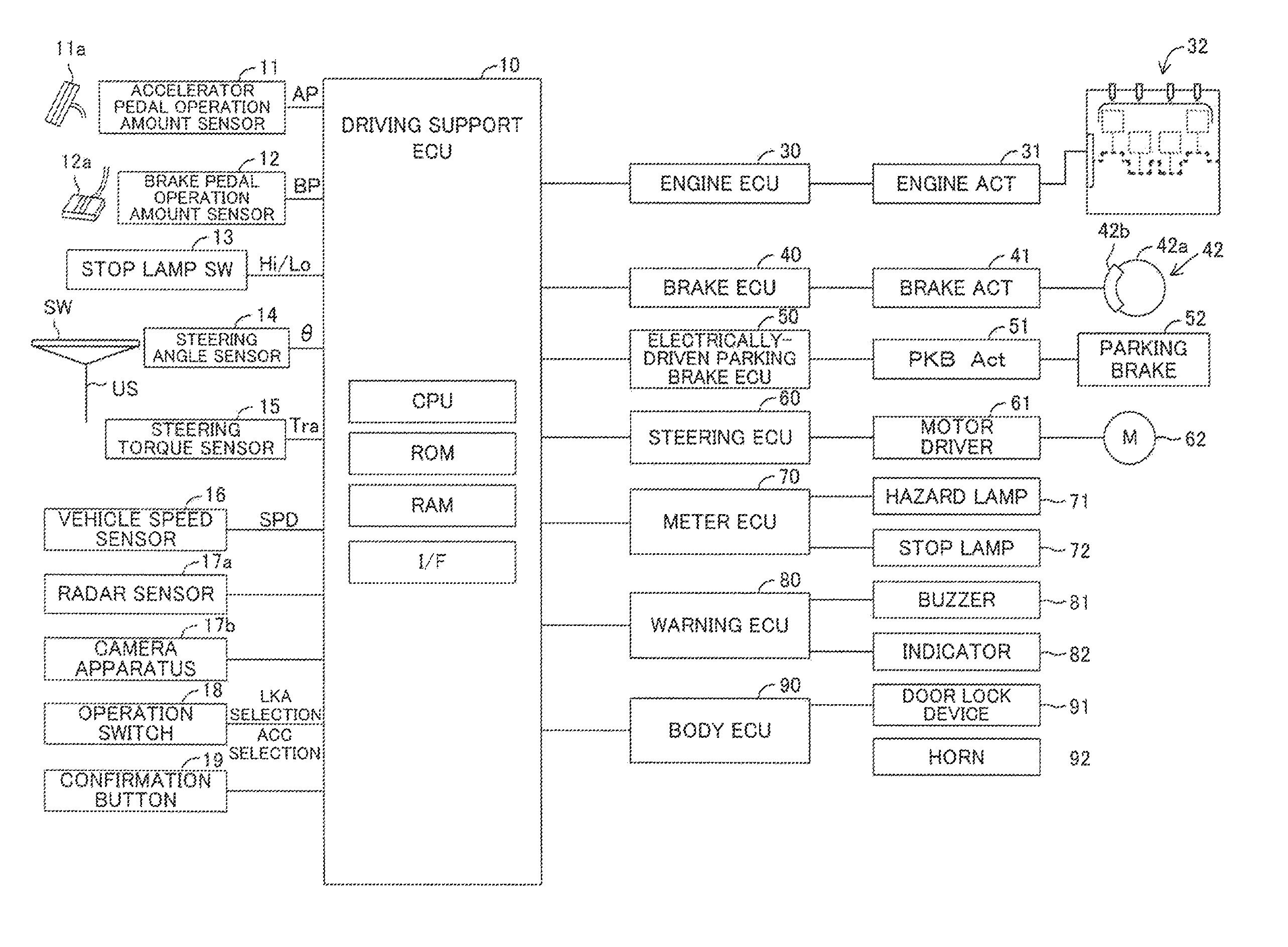

When a driving support electronic control unit (DSECU) determines that a driver of a vehicle is in an abnormal state where the driver loses an ability to drive the vehicle, the DSECU starts driving control under the abnormal state to decelerate the vehicle until the vehicle stops and to sound a horn. In this case, the DSECU measures an elapsed time since the horn starts sounding with a horn timer th, and sets a sounding pattern corresponding to the elapsed time measured. This sounding pattern is set in such a manner that a ratio of a sounding time of the horn per unit time decreases as the elapsed time since the horn starts sounding become longer. Thereby, it becomes possible to properly notify that the driver is in the abnormal state using the horn.
First Claim
Family
International Classification(s)
- B60K:ARRANGEMENT OR MOUNTING OF PROPULSION UNITS OR OF ....
- B60W:CONJOINT CONTROL OF VEHICLE SUB-UNITS OF DIFFERENT....
- B60T:VEHICLE BRAKE CONTROL SYSTEMS OR PARTS THEREOF; BR....
- B60R:VEHICLES, VEHICLE FITTINGS, OR VEHICLE PARTS, NOT ....
- G08G:TRAFFIC CONTROL SYSTEMS
- B60Q:ARRANGEMENT OF SIGNALLING OR LIGHTING DEVICES, THE....
- 2017 Application Filing Year
- B60K Class
- 3042 Applications Filed
- 2326 Patents Issued To-Date
- 76.47 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B60K Class
- 24.10 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 27, 2029 |
