Steam generation system for use in cooking appliance
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 19, 2019
Grant Date -
Jan 18, 2018
app pub date -
Sep 26, 2017
filing date -
Jun 29, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

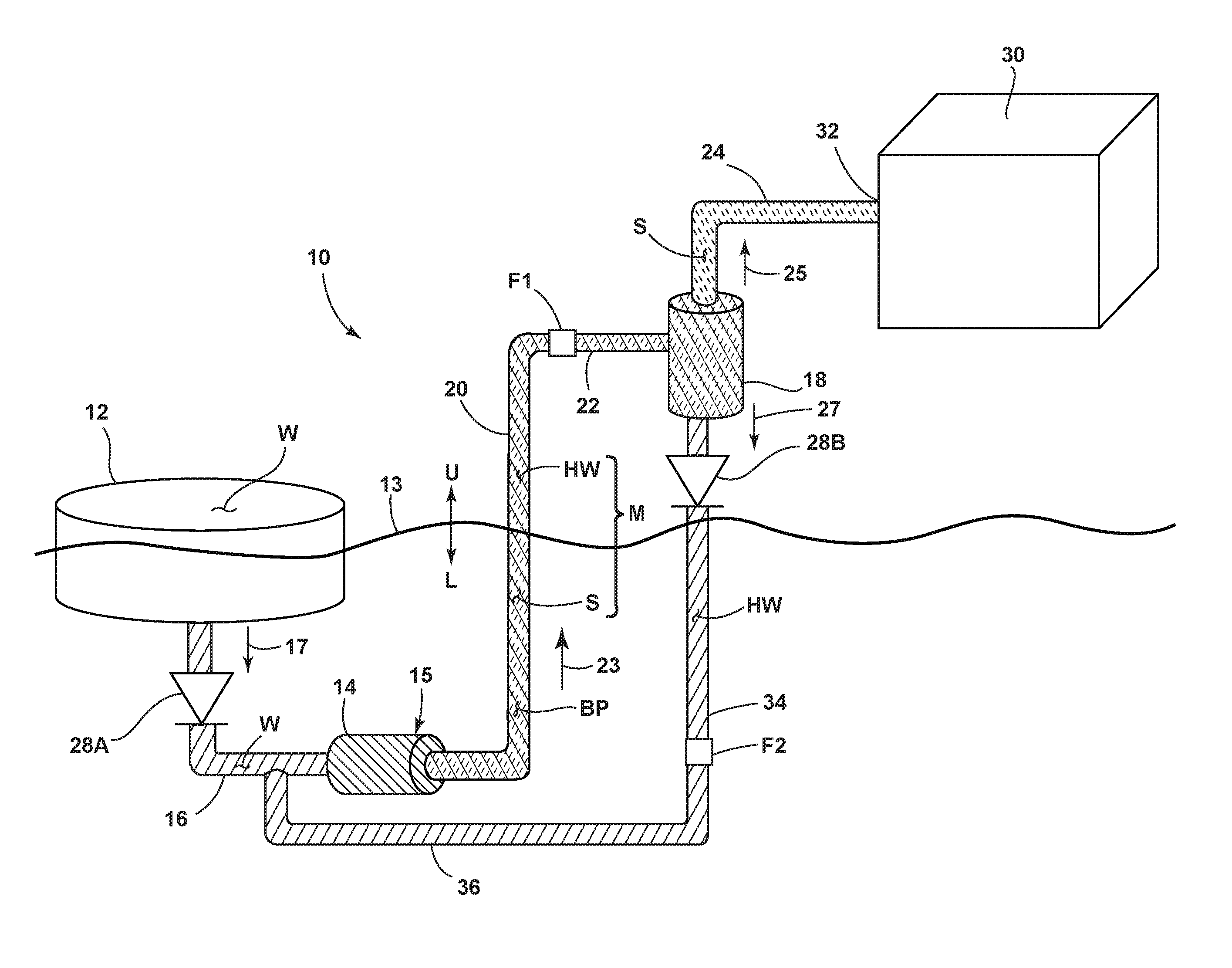

A steam generator system for a cooking appliance includes an in-line heating element coupled to a heating tube, wherein water from a water reservoir is gravitationally fed into the heating tube for heating by the in-line heating element to produce a hot water and steam mixture. A first supply line is coupled to the heating tube to carry the mixture to a separator without the need for moving or complex pump parts. The separator separates steam and hot water from the mixture of the two. A second supply line is coupled to the separator at a first end and opens into the cooking cavity of the cooking appliance at a second end. The second supply line is configured to supply steam separated at the separator to the cooking cavity via a steam outlet disposed in the cooking cavity.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- A47J Class
- 1535 Applications Filed
- 931 Patents Issued To-Date
- 60.66 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A47J Class
- 49.16 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 19, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 19, 2030 |
