Methods and apparatus of decoding process for palette syntax

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9900624
SERIAL NO

15542739

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

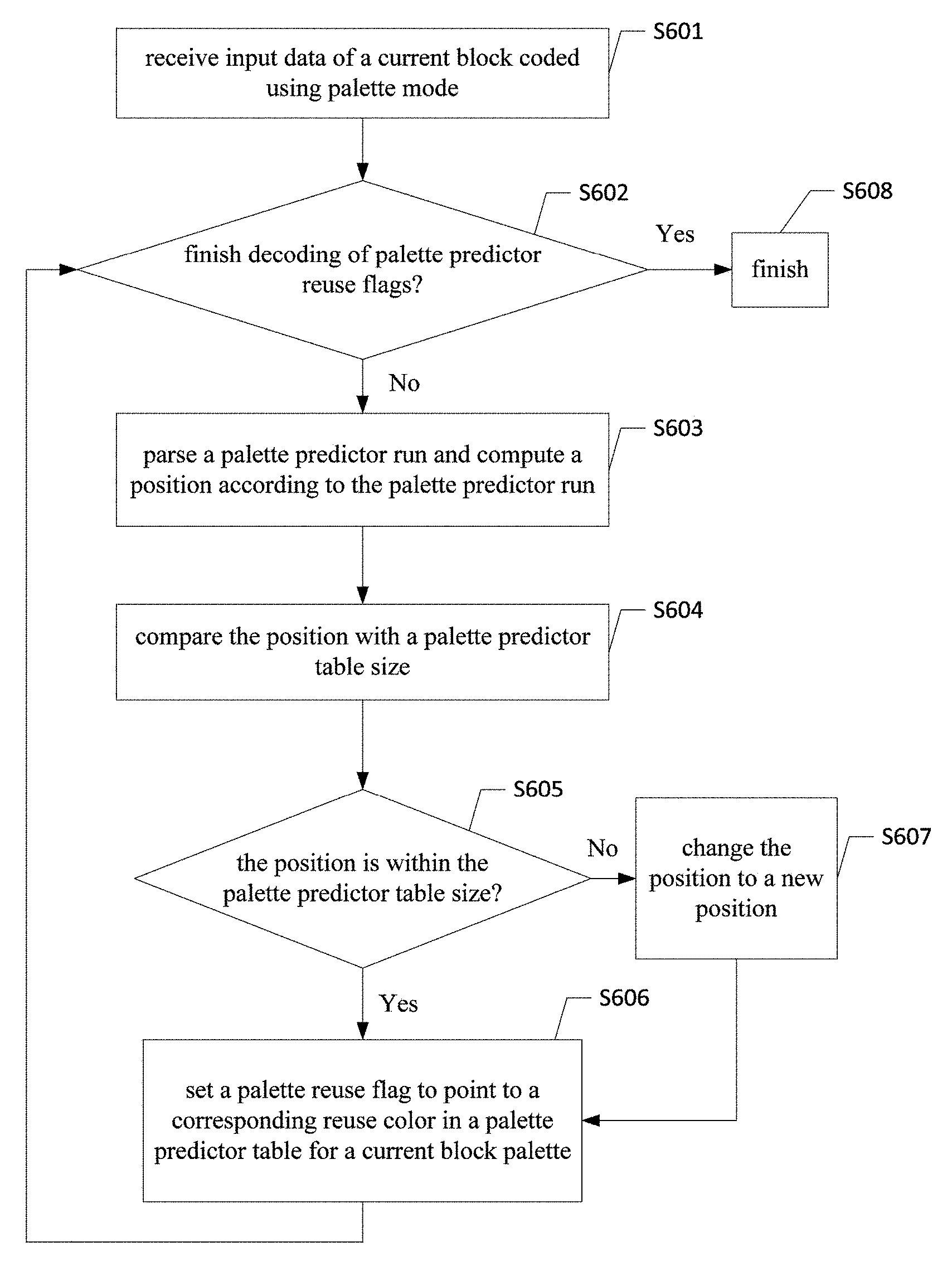

Methods and apparatus for image or video decoding in a video decoding system are disclosed. Input data associated with a current block coded with palette mode is received to parse a palette predictor run. A position of reused colors in a palette predictor table is computed according to the palette predictor run. A size of the palette predictor table is determined and compared with the position computed according to the palette predictor run to obtain a comparison result. The decoder applies palette decoding to the current block according to the comparison result. If the comparison result indicates the position computed according to the palette predictor run is not within the palette predictor table, the position is changed to a new position to indicate a corresponding reused color for the current block or a decoding process of palette predictor reuse flags is terminated.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
MEDIATEK INCNO 1 DUSING 1ST ROAD HSINCHU SCIENCE PARK HSINCHU CITY 30078

International Classification(s)

loading....
  • 2016 Application Filing Year
  • H04N Class
  • 18761 Applications Filed
  • 14708 Patents Issued To-Date
  • 78.40 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances20162017201820192020202120222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Chuang, Tzu-Der Zhubei, TW 329 5070
Kim, Jungsun San Jose, US 356 5354
Lai, Wang-Lin San Jose, US 26 533
Liu, Shan San Jose, US 2032 11274
Ye, Jing San Jose, US 159 1540

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 5 Citation Count
  • H04N Class
  • 27.70 % this patent is cited more than
  • 7 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges2332524554514072381312563701 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 9091 - 100100 +025050075010001250150017502000225025002750300032503500375040004250450047505000525055005750

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Aug 20, 2025
11.5 Year Payment $7400.00 $3700.00 $1850.00 Aug 20, 2029
