Projection system and method for adjusting projection system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 27, 2019
Grant Date -
Jan 11, 2018
app pub date -
Jun 28, 2017
filing date -
Jul 5, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Calculated Rating
|
US Family Size
|
Non-US Coverage
|
Abstract

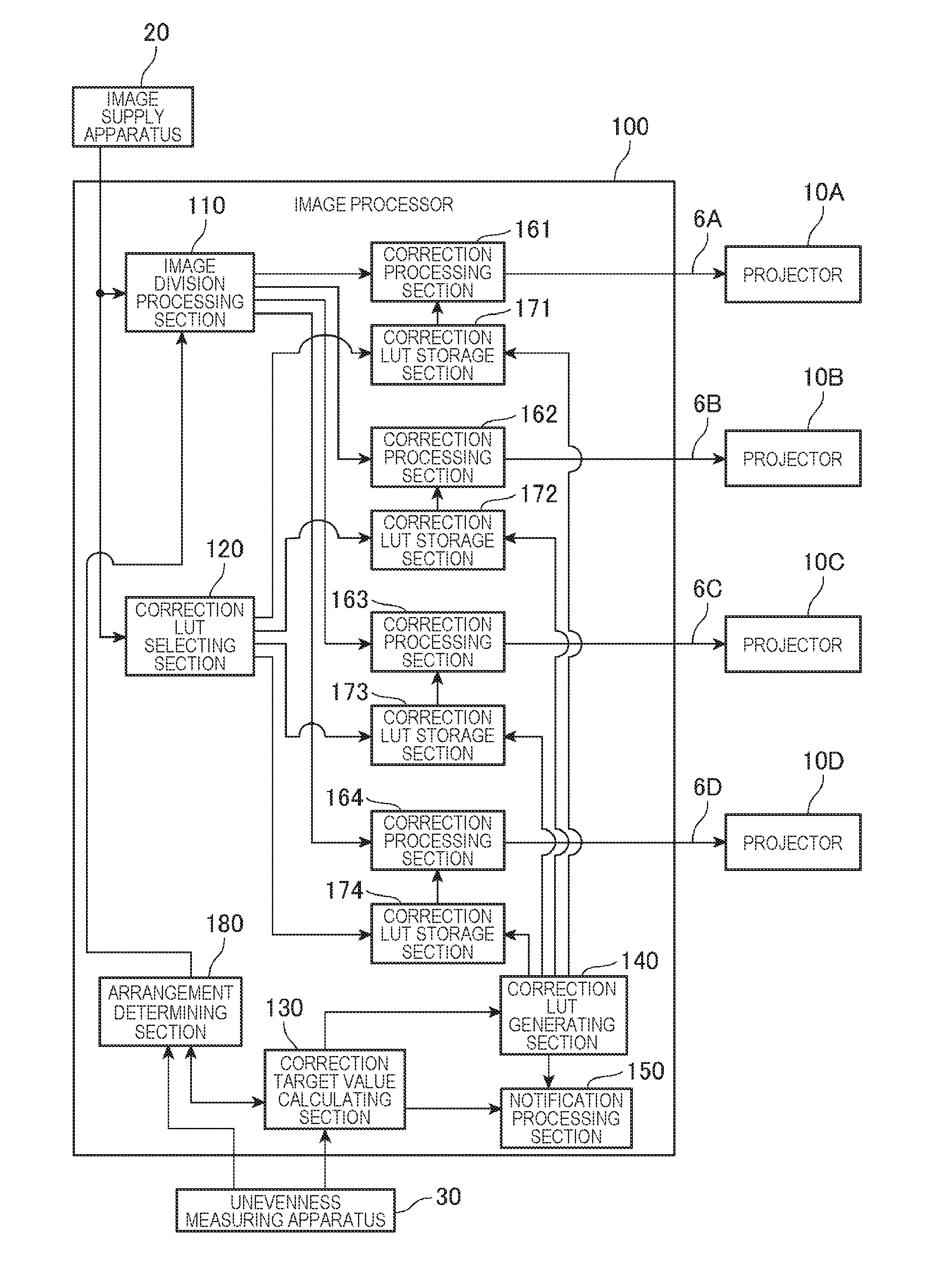

A projection system includes three or more projectors. Each of the projectors includes a projection section that projects image light to form a projection image on a screen. The projectors are so arranged that the three or more projection images projected by the projectors form a tiled image. The projection image projected by any of the projectors and the projection image projected by an adjacent projector form an overlapping area where the projection images overlap with each other, and one of the overlapping areas differs from the other overlapping areas in terms of size.
First Claim
Other Claims data not available
Family
+
−
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP6798163 | Jul 05, 2016 |
| CN | B | CN107580202 | Jun 13, 2017 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H04N Class
- 36.18 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 27, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 27, 2031 |
