Method and apparatus for making HARQS in carrier aggregation systems

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 10164742
APP PUB NO 20180013523A1
SERIAL NO

15711213

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

A method for performing a hybrid automatic repeat request (HARQ) process, the method performed by a user equipment (UE) and includes receiving data in a first subframe of a secondary cell; and transmitting acknowledgement/negative-acknowledgement (ACK/NACK) information for the data in a second subframe of a primary cell, wherein the primary cell uses a frame comprising at least one downlink subframe and at least one uplink subframe according to an uplink-downlink configuration, wherein the secondary cell uses a frame comprising consecutive downlink subframes, and wherein a maximum number of HARQ processes for the secondary cell is dependent on the uplink-downlink configuration of the primary cell.

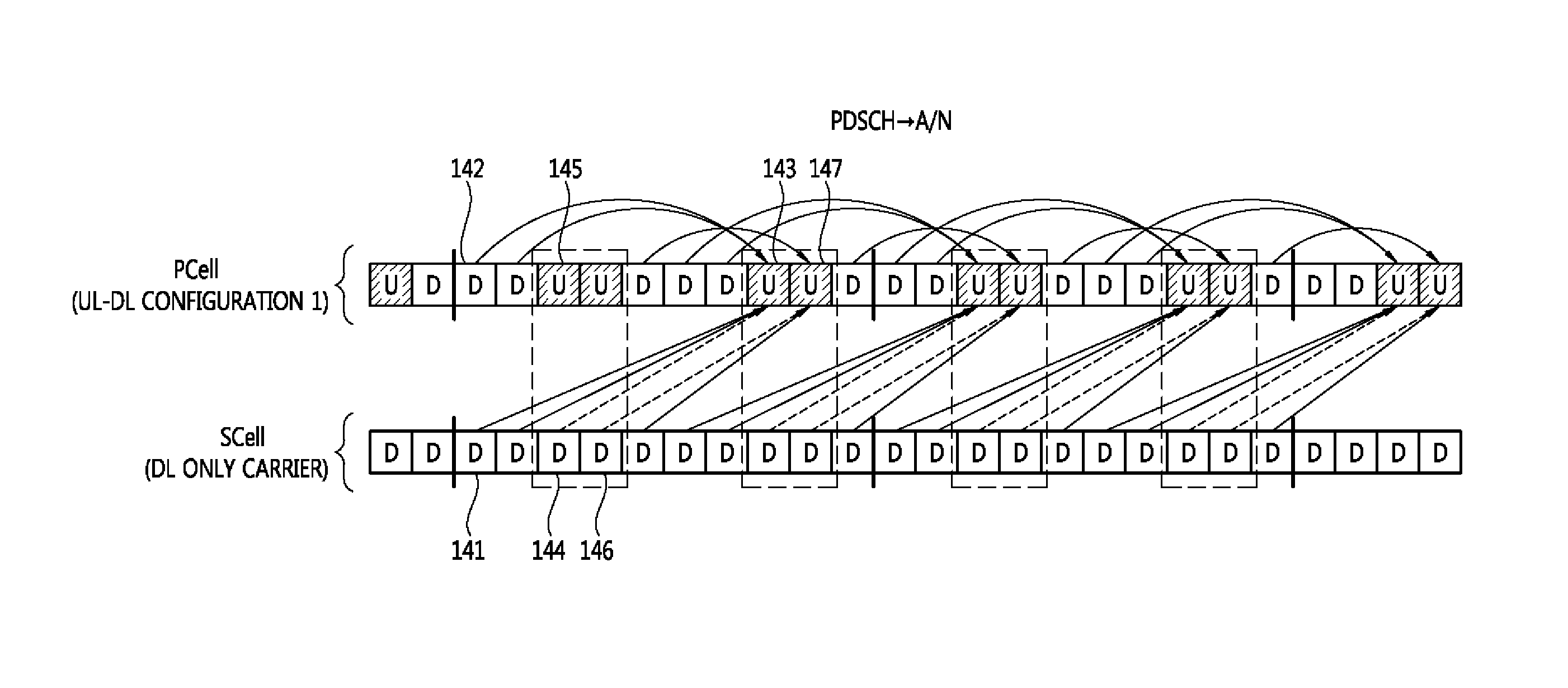

Loading the Abstract Image... loading....

First Claim

See full text

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
LG ELECTRONICS INCSEOUL SOUTH KEREAN SEOUL

International Classification(s)

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Ahn, Joonkui Anyang-si, KR 1270 16241
Kim, Bonghoe Anyang-si, KR 375 5492
Lee, Seungmin Anyang-si, KR 1498 11078
Seo, Dongyoun Anyang-si, KR 394 6962
Seo, Hanbyul Anyang-si, KR 2032 25888
Yang, Suckchel Anyang-si, KR 1496 15893
Yi, Yunjung Anyang-si, KR 1654 19192
