Charge pump driver circuit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 19, 2019
Grant Date -
Jan 11, 2018
app pub date -
Jan 20, 2017
filing date -
Jul 7, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

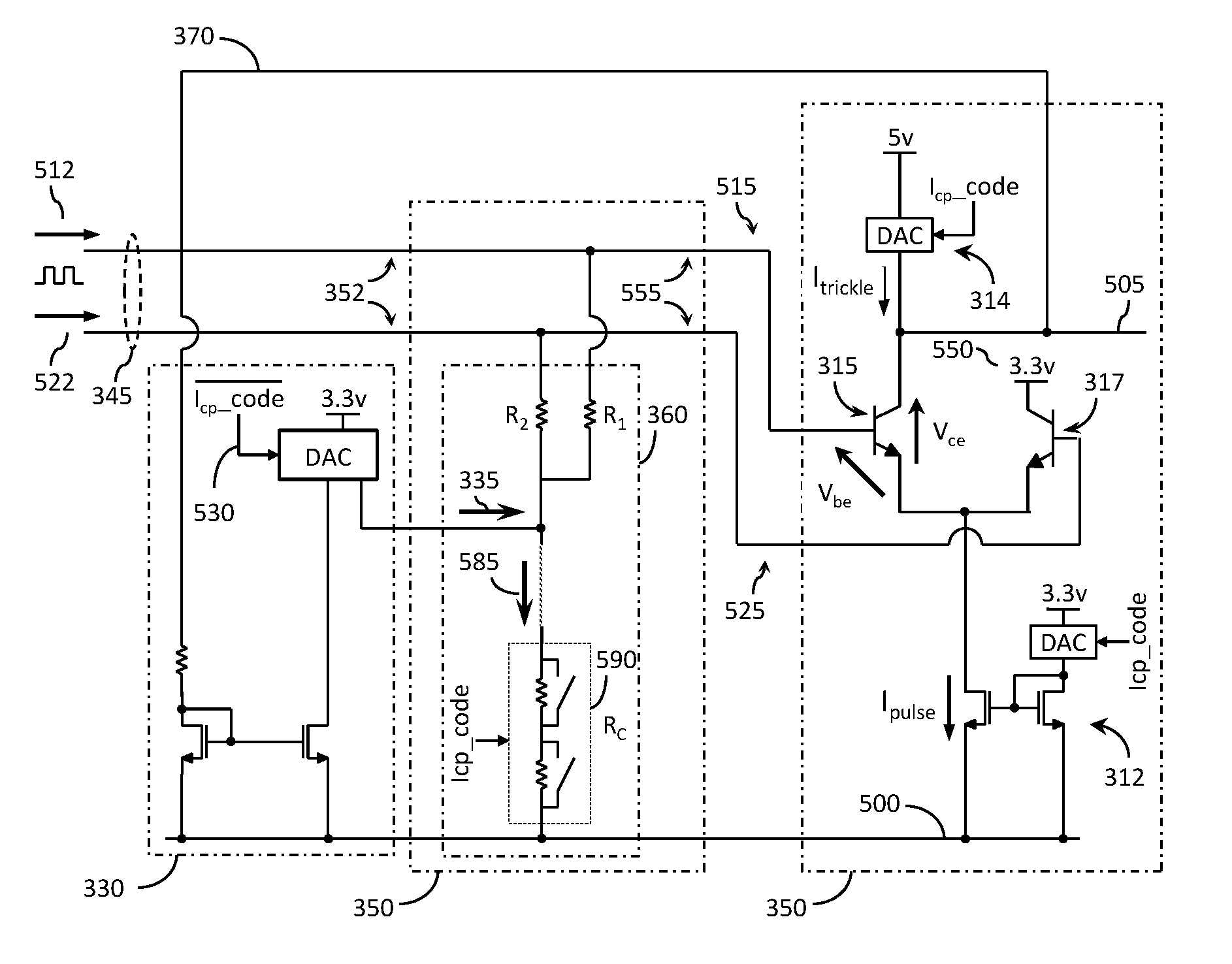

A charge pump driver circuit comprises an output stage and a current generator component. The output stage is arranged to receive at an input node thereof a control current signal and comprises a resistance network coupled between the input node thereof and a reference voltage node and arranged to provide a resistive path through which the control current signal flows. The output stage is arranged to generate at an output node thereof a charge pump control voltage signal based on the voltage level at the input node thereof. The current generator component is arranged to receive an indication of a voltage level of a charge pump output signal, and to generate a feedback current dependent on the voltage level of the output signal, wherein the feedback current is injected into the resistive path of the resistance network through which the control current signal flows.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H03L Class
- 681 Applications Filed
- 583 Patents Issued To-Date
- 85.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H03L Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 19, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 19, 2030 |
