Electric Compressor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 21, 2016
filing date -
Jan 27, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

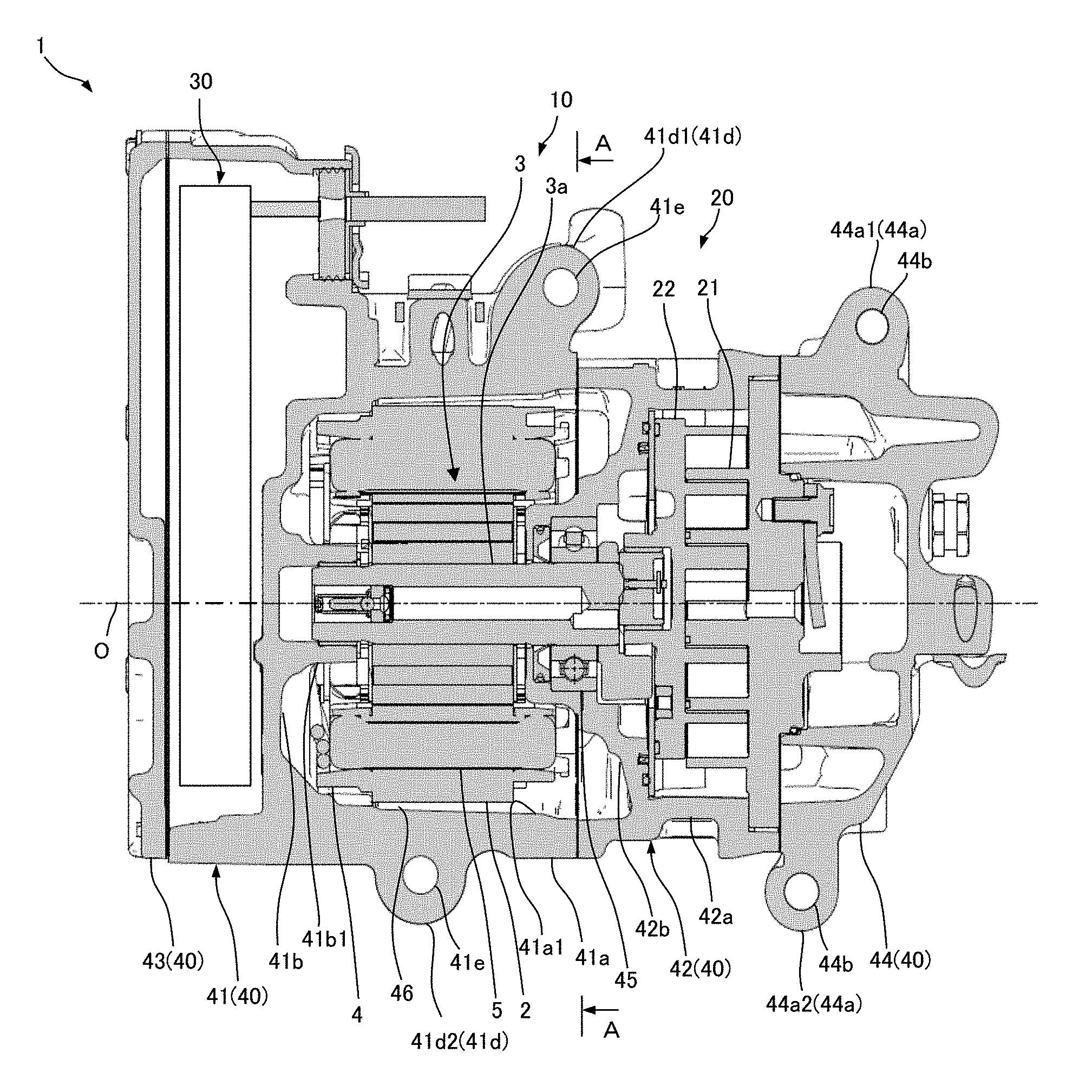

Electric compressor 1 has electric motor 10 housed in casing 40, the motor including stator 2 having yoke portion 2a and plural tooth portions 2b, and rotor 3 disposed radially inside stator 2. Protrusion 41f protrudes at plural circumferential positions of inner periphery 41a1 of casing 40, which has protruding end surface 41f1 contacting an outer periphery of yoke portion 2a with width larger than tooth portion 2b. Contact tooth back portion 2a11 contacts protruding end surface 41f1, out of plural tooth back portions 2a1 each disposed behind tooth portion 2b as part of the outer periphery of yoke portion 2a, is formed in a region except both edge portions 41h of protruding end surface 41f1 in a circumferential direction within a circumferential angle range θ in which the protruding end surface 41f1 is located.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H02K Class
- 23.38 % this patent is cited more than
- 7 Age
