IGNITION DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 11, 2018
app pub date -
Jul 10, 2017
filing date -
Jul 11, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

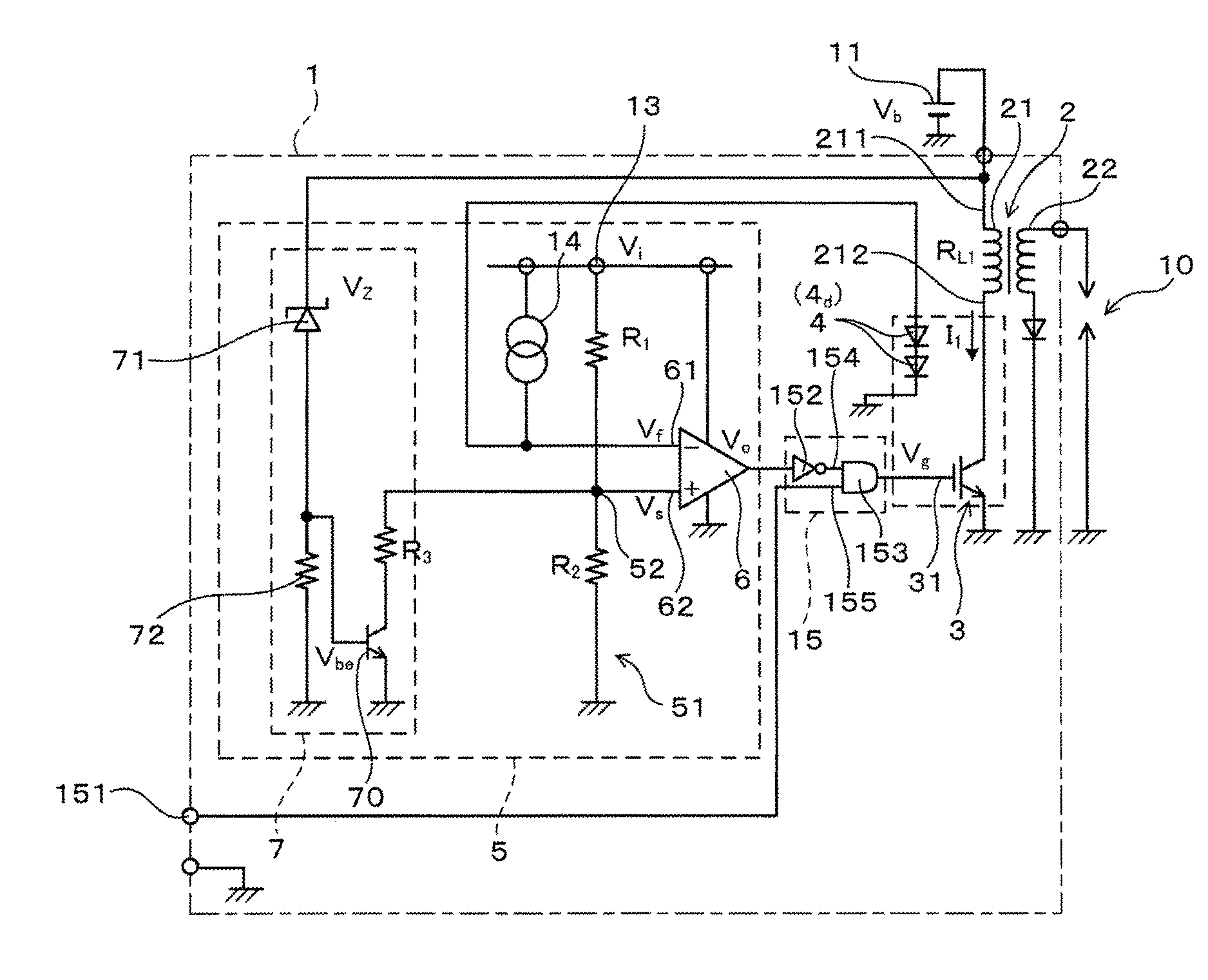

An ignition device capable of more reliably protecting a primary winding of an ignition coil from high temperature is provided. The ignition device includes an ignition coil, a switching element, a temperature sensor, and a thermal cutout circuit. A primary winding of the ignition coil is connected to a DC power supply and the switching element. The temperature sensor is provided to measure the temperature of the switching element. The thermal cutout circuit forcibly turns off the switching element when the temperature of the switching element becomes higher than a predetermined forcible turn-off temperature Toff. The thermal cutout circuit is configured to lower the forcible turn-off temperature Toff when the power supply voltage Vb of the DC power supply decreases.
