Magnetoelectric converting element and module utilizing the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 27, 2018
Grant Date -
Jan 11, 2018
app pub date -
Jul 3, 2017
filing date -
Jul 5, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

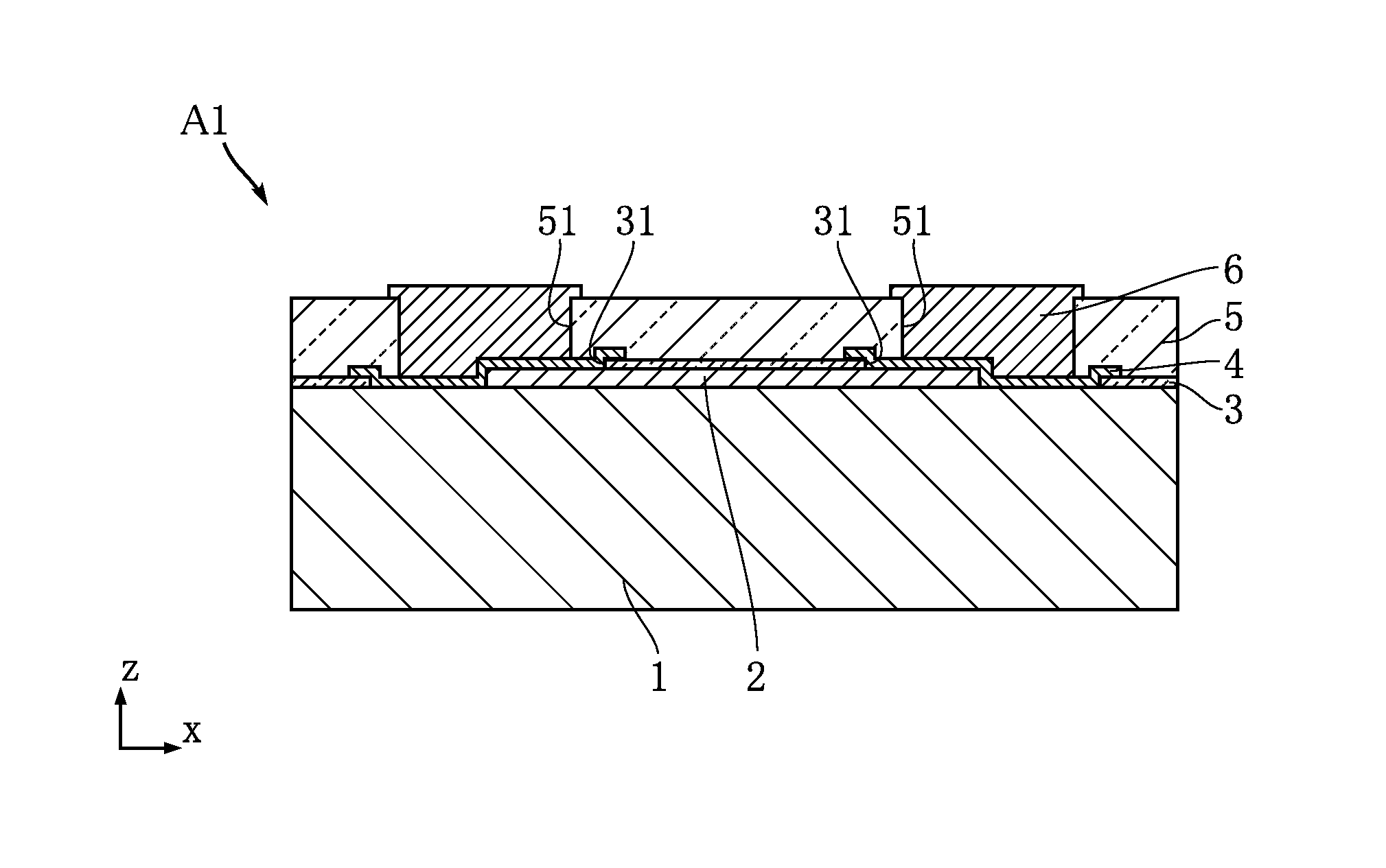

A magnetoelectric converting element includes a substrate, a magnetosensitive layer, a first insulating layer, an underlying conductive layer, a second insulating layer, and a terminal conductor. The magnetosensitive layer is formed on the substrate. The first insulating layer is formed with first opening for exposing a part of the magnetosensitive layer. The underlying conductive layer is formed on the exposed part of the magnetosensitive layer. The second insulating layer is formed with a second opening for exposing a part of the underlying conductive layer. The terminal conductor is formed on the exposed part of the underlying conductive layer. The second opening is arranged to be located inside the first opening in plan view.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H01L Class
- 30754 Applications Filed
- 25260 Patents Issued To-Date
- 82.14 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 27, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 27, 2030 |
