Semiconductor Devices and Methods for Forming Semiconductor Devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 6, 2017
filing date -
Jul 7, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

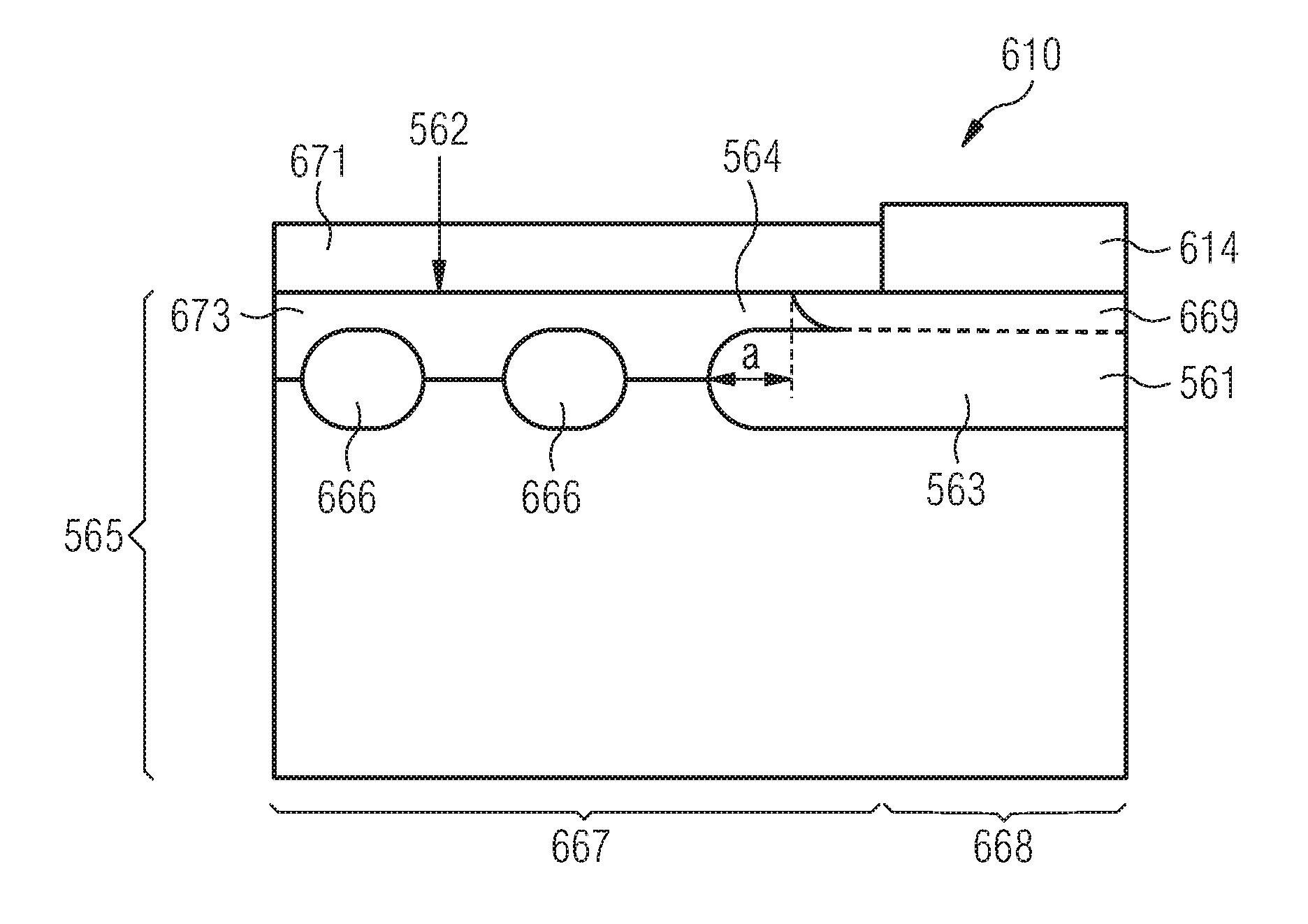

A semiconductor device includes an anode doping region of a diode structure arranged in a semiconductor substrate. The anode doping region has a first conductivity type. The semiconductor device further includes a second conductivity type contact doping region having a second conductivity type. The second conductivity type contact doping region is arranged at a surface of the semiconductor substrate and surrounded in the semiconductor substrate by the anode doping region. The anode doping region includes a buried non-depletable portion. At least part of the buried non-depletable portion is located below the second conductivity type contact doping region in the semiconductor substrate.
