DIFFERENTIAL SG/EG SPACER INTEGRATION WITH EQUIVALENT NFET/PFET SPACER WIDTHS & DUAL RAISED SOURCE DRAIN EXPITAXIAL SILICON AND TRIPLE-NITRIDE SPACER INTEGRATION ENABLING HIGH-VOLTAGE EG DEVICE ON FDSOI
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 11, 2018
app pub date -
Sep 21, 2017
filing date -
May 11, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

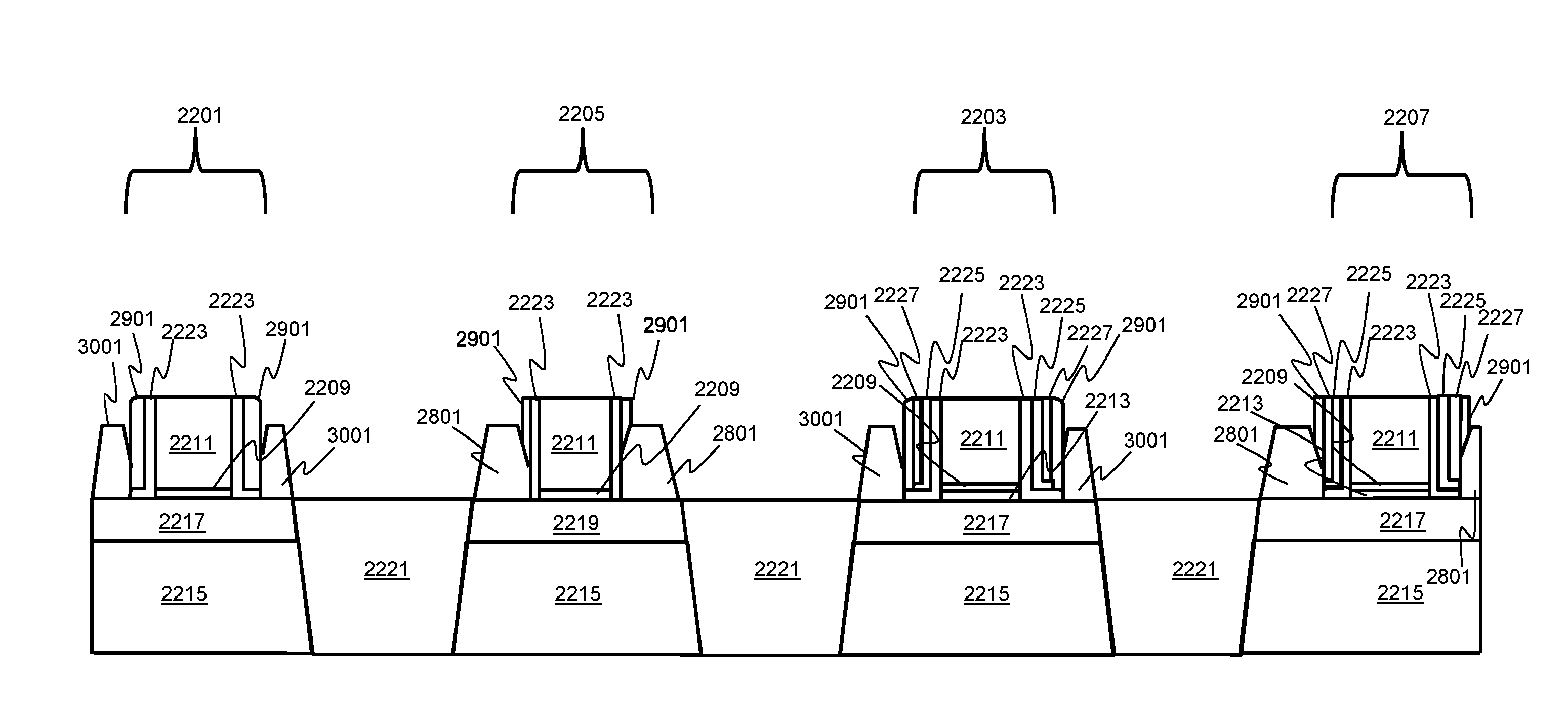

A method of forming matched PFET/NFET spacers with differential widths for SG and EG structures and a method of forming differential width nitride spacers for SG NFET and SG PFET structures and PFET/NFET EG structures and respective resulting devices are provided. Embodiments include providing PFET SG and EG structures and NFET SG and EG structures; forming a first nitride layer over the substrate; forming an oxide liner; forming a second nitride layer on sidewalls of the PFET and NFET EG structures; removing horizontal portions of the first nitride layer and the oxide liner over the PFET SG and EG structures; forming RSD structures on opposite sides of each of the PFET SG and EG structures; removing horizontal portions of the first nitride layer and the oxide liner over the NFET SG and EG structures; and forming RSD structures on opposite sides of each of the NFET SG and EG structures.
