Power storage element, manufacturing method thereof, and power storage device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 29, 2019
Grant Date -
Jan 11, 2018
app pub date -
Aug 15, 2017
filing date -
Mar 26, 2012
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

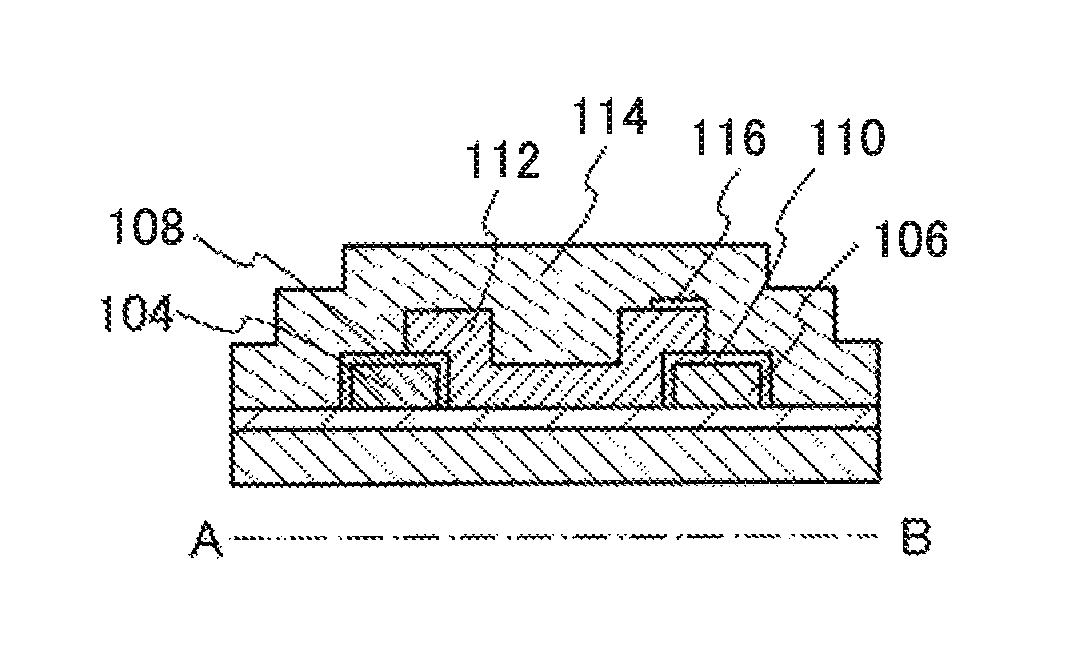

Disclosed is a power storage element including a positive electrode current collector layer and a negative electrode current collector layer which are arranged on the same plane and can be formed through a simple process. The power storage element further includes a positive electrode active material layer on the positive electrode current collector layer; a negative electrode active material layer on the negative electrode current collector layer; and a solid electrolyte layer in contact with at least the positive electrode active material layer and the negative electrode active material layer. The positive electrode active material layer and the negative electrode active material layer are formed by oxidation treatment.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
SEMICONDUCTOR ENERGY LABORATORY CO LTD | KANAGAWA KANAGAWA |
International Classification(s)

- 2017 Application Filing Year
- H01L Class
- 30754 Applications Filed
- 25260 Patents Issued To-Date
- 82.14 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Kuriki, Kazutaka | Kanagawa, JP | 141 | 1225 |
