Matrix device and manufacturing method of matrix device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 20, 2019
Grant Date -
Jan 11, 2018
app pub date -
Sep 22, 2017
filing date -
Mar 26, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

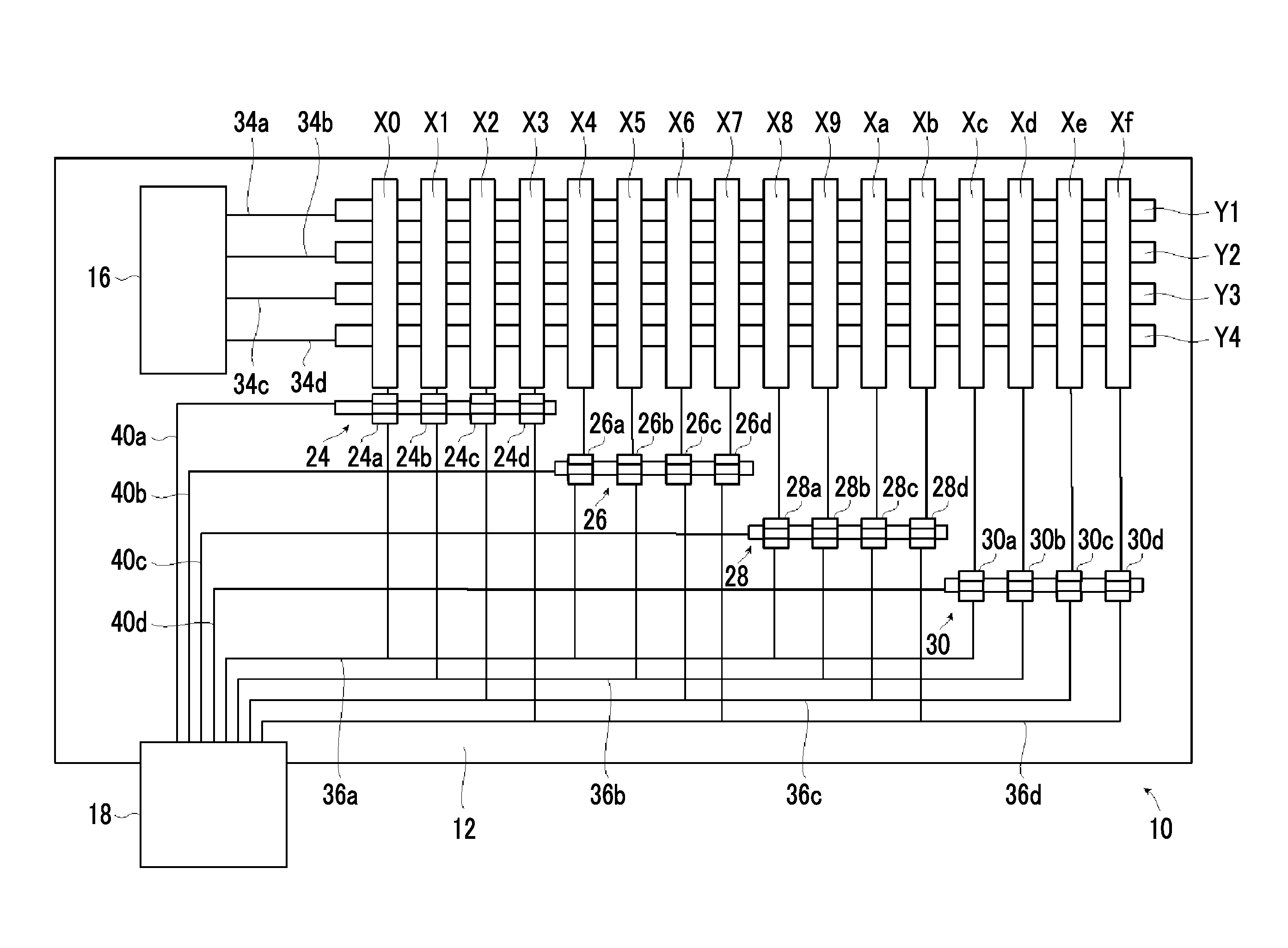

In a matrix device having two or more systems of electrode groups such as X and Y systems, the one or more electrode groups are grouped into groups each consisting of a plurality of pixel electrodes, connection wires are branched off and connected to the pixel electrodes so that the same signal is not supplied to the pixel electrodes of the same group but the same signal is supplied to one pixel electrode of two or more groups, switching elements are provided corresponding to the individual pixel electrodes, and a gate electrode and a gate insulating film of the switching elements are used in common in the same group. Accordingly, in the matrix device and manufacturing of the matrix device, the number of connection wires and driver ICs is reduced.
