THERMAL TRANSFER STRUCTURES FOR SEMICONDUCTOR DIE ASSEMBLIES

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20180012865A1
SERIAL NO

15203692

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Calculated Rating
US Family Size
Non-US Coverage

Abstract

See full text

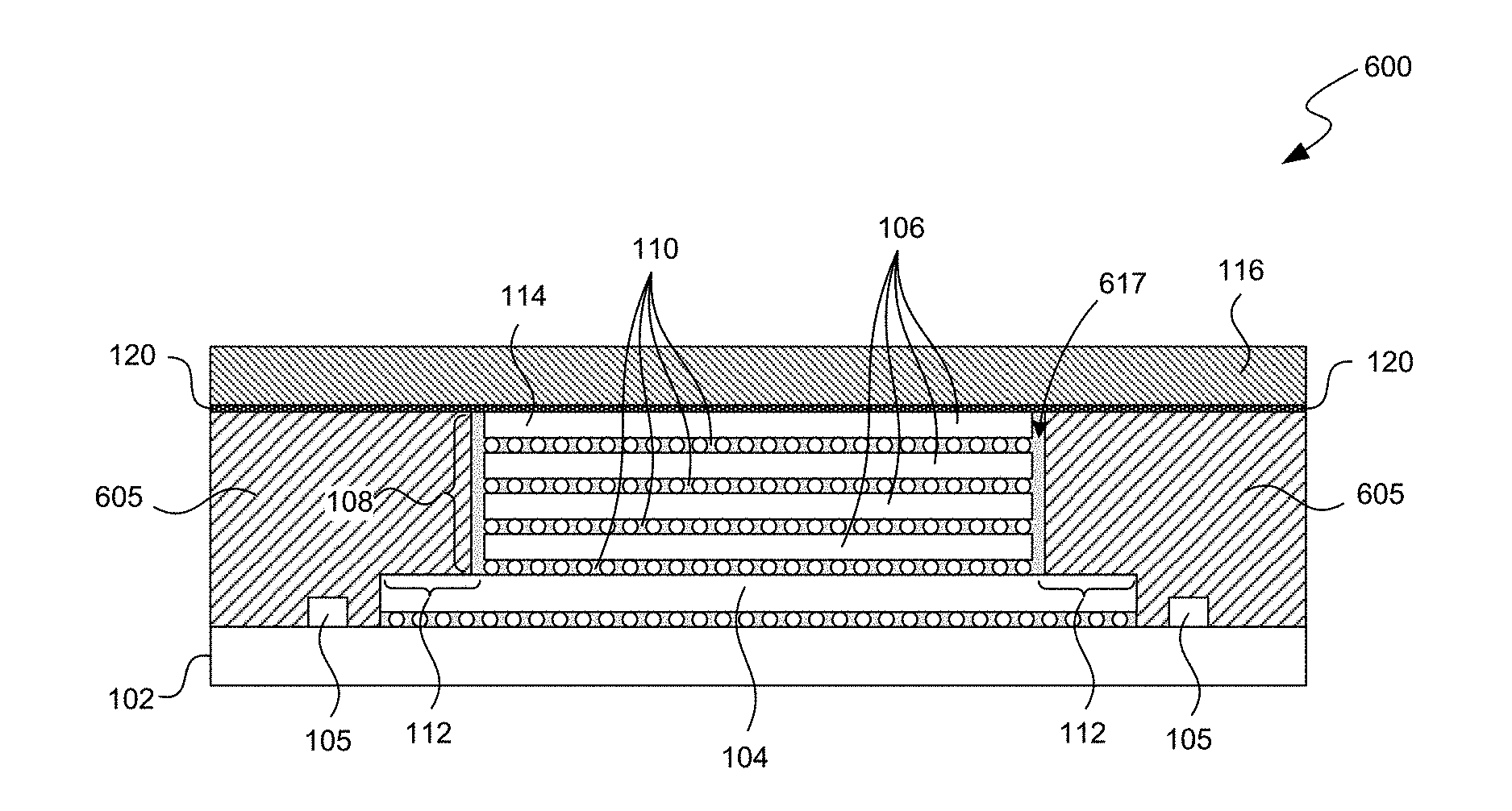

Several embodiments of the present technology are described with reference to a semiconductor die assembly and processes for manufacturing the assembly. In some embodiments of the present technology, a semiconductor die assembly includes a stack of semiconductor dies attached to a thermal transfer structure (also known as a “heat spreader,” “lid,” or “thermal lid”). The thermal transfer structure conducts heat away from the stack of semiconductor dies. Additionally, the assembly can include molded walls fabricated with molding material to support the thermal transfer structure.

First Claim

See full text

Other Claims data not available
