Collar, conical showerheads and/or top plates for reducing recirculation in a substrate processing system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 3, 2019
Grant Date -
Jan 11, 2018
app pub date -
Jul 11, 2016
filing date -
Jul 11, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

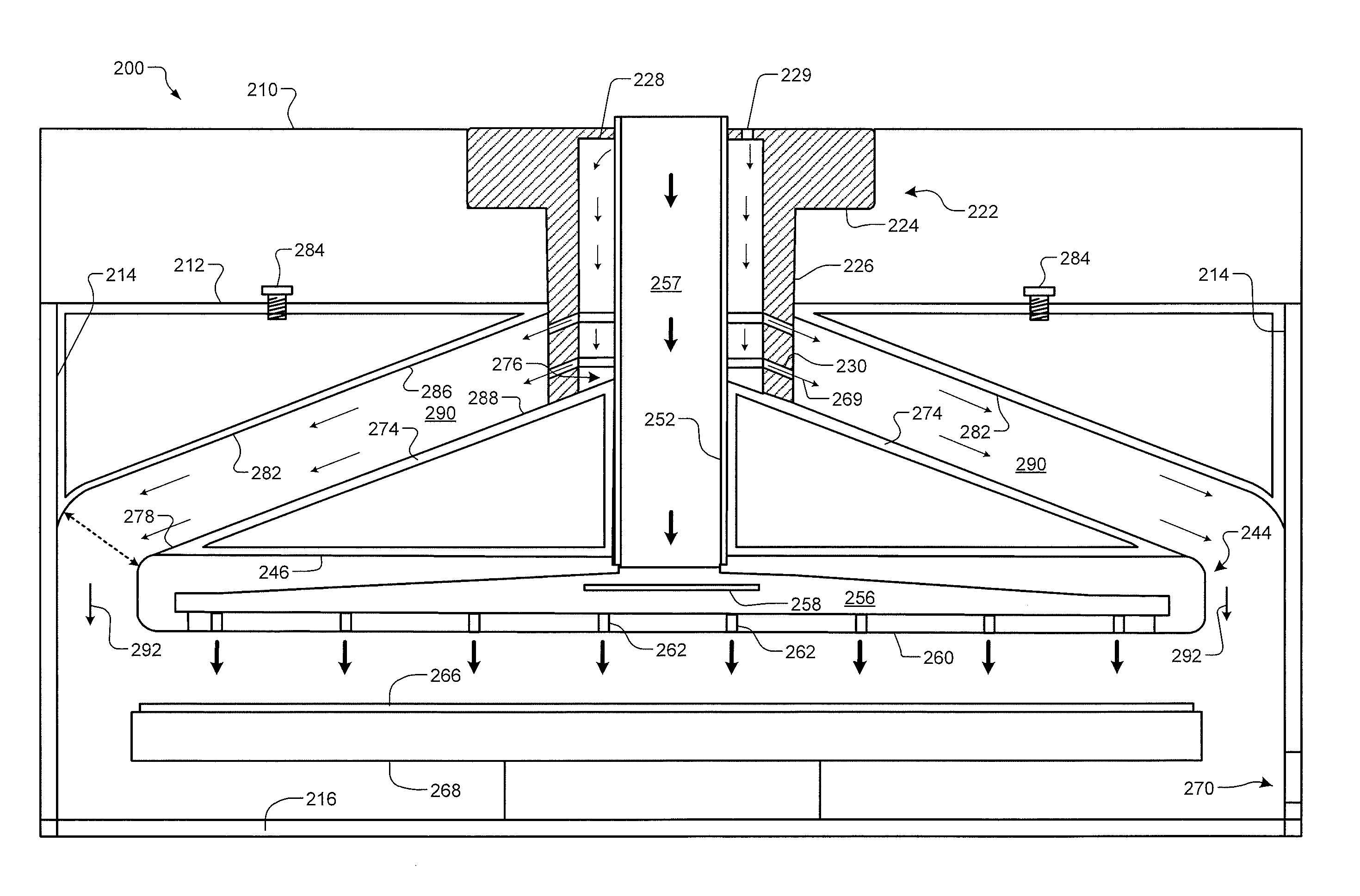

A substrate processing system includes a processing chamber and a showerhead including a faceplate, a stem portion and a cylindrical base portion. A collar connects the showerhead to a top surface of the processing chamber. The collar defines a gas channel to receive secondary purge gas and a plurality of gas slits to direct the secondary purge gas from the gas channel in a radially outward and downward direction. A conical surface is arranged adjacent to the cylindrical base and around the stem portion of the showerhead. An inverted conical surface is arranged adjacent to a top surface and sidewalls of the processing chamber. The conical surface and the inverted conical surface define an angled gas channel from the plurality of gas slits to a gap defined between a radially outer portion of the cylindrical base portion and the sidewalls of the processing chamber.
