ELEMENT REMOVAL DESIGN IN MICROWAVE FILTERS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 11, 2018
app pub date -
Sep 7, 2017
filing date -
Mar 15, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

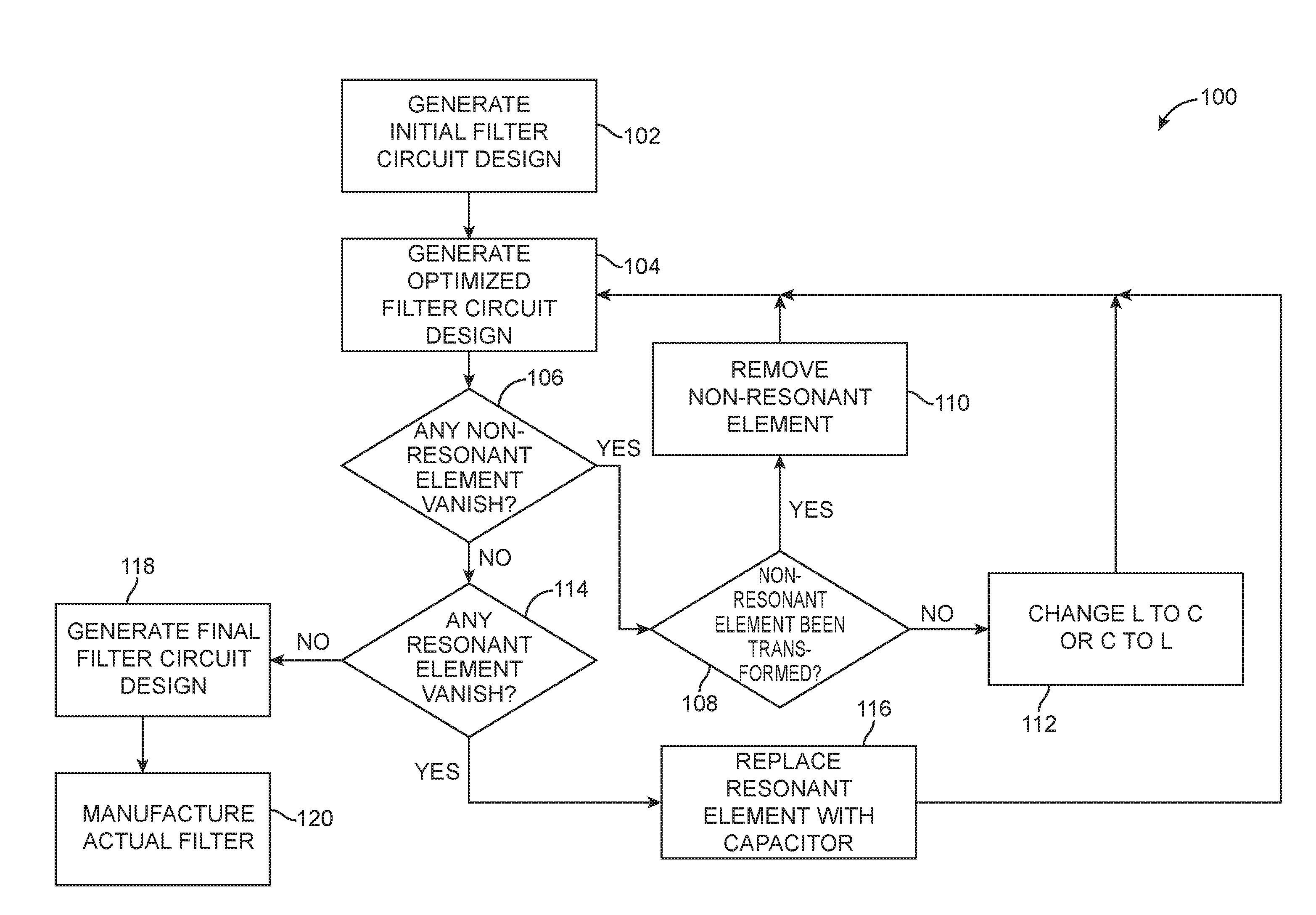

A method of designing a microwave filter using a computerized filter optimizer, comprises generating a filter circuit design in process (DIP) comprising a plurality of circuit elements having a plurality of resonant elements and one or more non-resonant elements, optimizing the DIP by inputting the DIP into the computerized filter optimizer, determining that one of the plurality of circuit elements in the DIP is insignificant, removing the one insignificant circuit element from the DIP, deriving a final filter circuit design from the DIP, and manufacturing the microwave filter based on the final filter circuit design.
First Claim
Other Claims data not available
