Low latency efficient sharing of resources in multi-server ecosystems
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 2, 2018
Grant Date -
Jan 11, 2018
app pub date -
Sep 8, 2017
filing date -
Sep 22, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

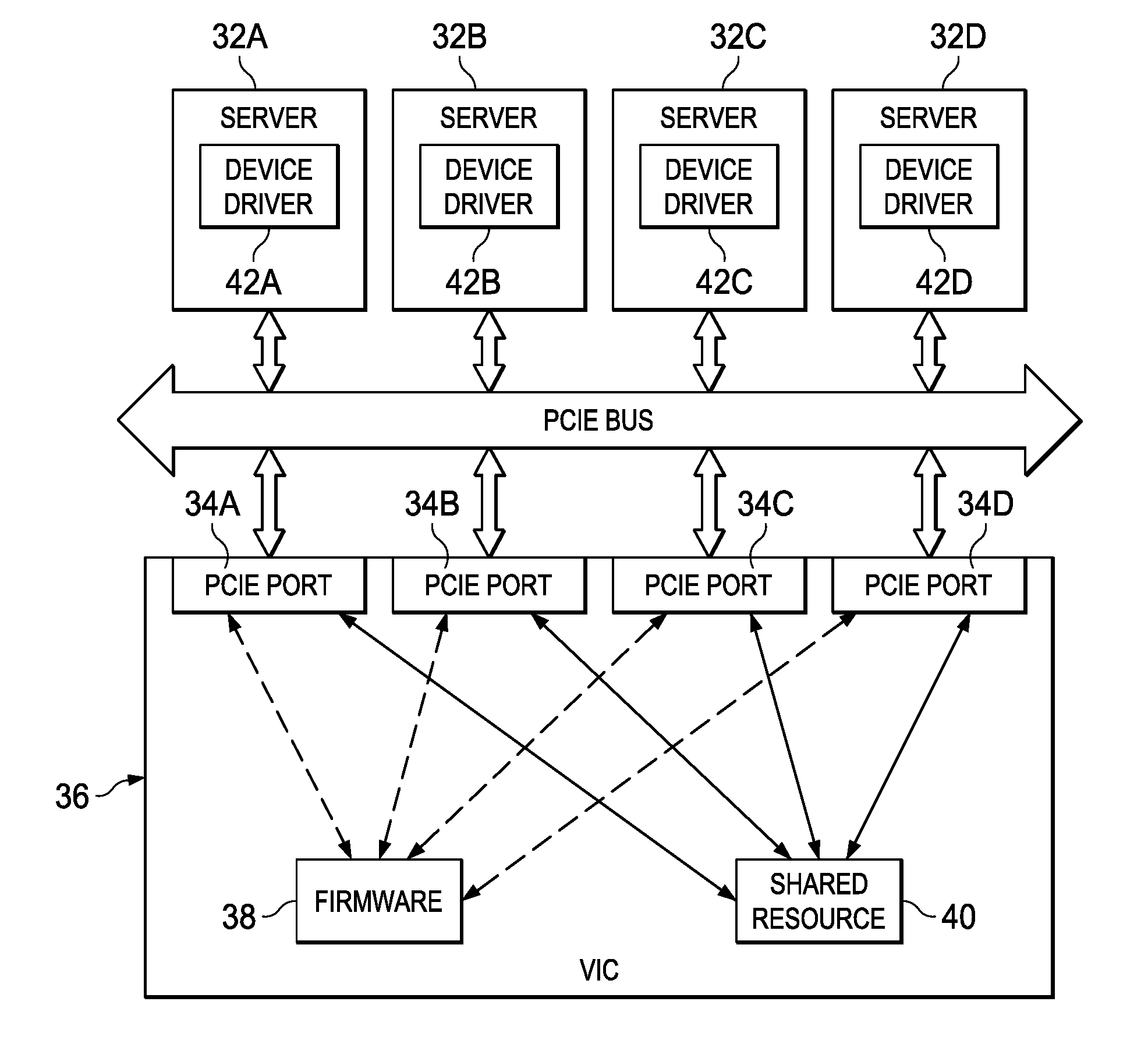

A method is provided in one example embodiment and includes receiving by a network element a request from a network device connected to the network element to update a shared resource maintained by the network element; subsequent to the receipt, identifying a Base Address Register Resource Table (“BRT”) element assigned to a Peripheral Component Interconnect (“PCI”) adapter of the network element associated with the network device, wherein the BRT points to the shared resource; changing an attribute of the identified BRT from read-only to read/write to enable the identified BRT to be written by the network device; and notifying the network device that the attribute of the identified BRT has been changed, thereby enabling the network device to update the shared resource via a Base Address Register (“BAR”) comprising the identified BRT.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G06F Class
- 61356 Applications Filed
- 46481 Patents Issued To-Date
- 75.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 2, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 2, 2030 |
