Electronic pen and electronic pen main body
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 8, 2020
Grant Date -
Jan 11, 2018
app pub date -
Sep 6, 2017
filing date -
Mar 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

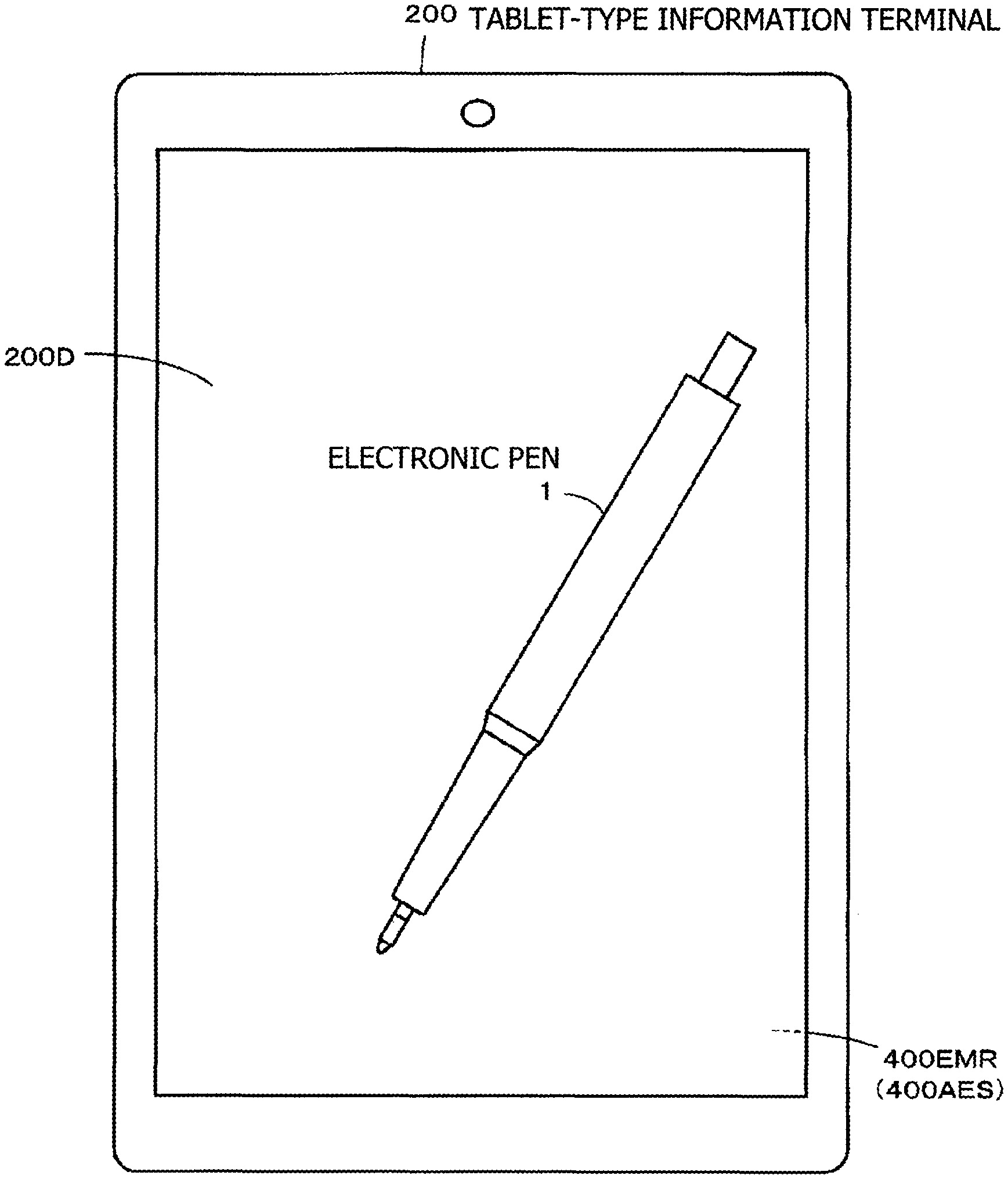

An electronic pen includes a magnetic core that has a through-hole and around which a coil is wound in a direction along this through-hole, a core body that is inserted in the through-hole of this magnetic core and has electrical conductivity, a capacitor that forms a resonant circuit with the coil, a signal generation circuit that generates a signal that enables a position of the electronic pen to be detected, which is transmitted through the core body, an electricity storage device, and a charge circuit that charges the electricity storage device by an induced current generated in the coil according to an external magnetic field. While the resonant circuit operates, the signal generated by the signal generation circuit is concurrently transmitted through the core body.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G06F Class
- 61356 Applications Filed
- 46481 Patents Issued To-Date
- 75.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- G06F Class
- 37.41 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 8, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 8, 2032 |
