Electronic device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 25, 2018
Grant Date -
Jan 11, 2018
app pub date -
Jun 13, 2017
filing date -
Jul 6, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

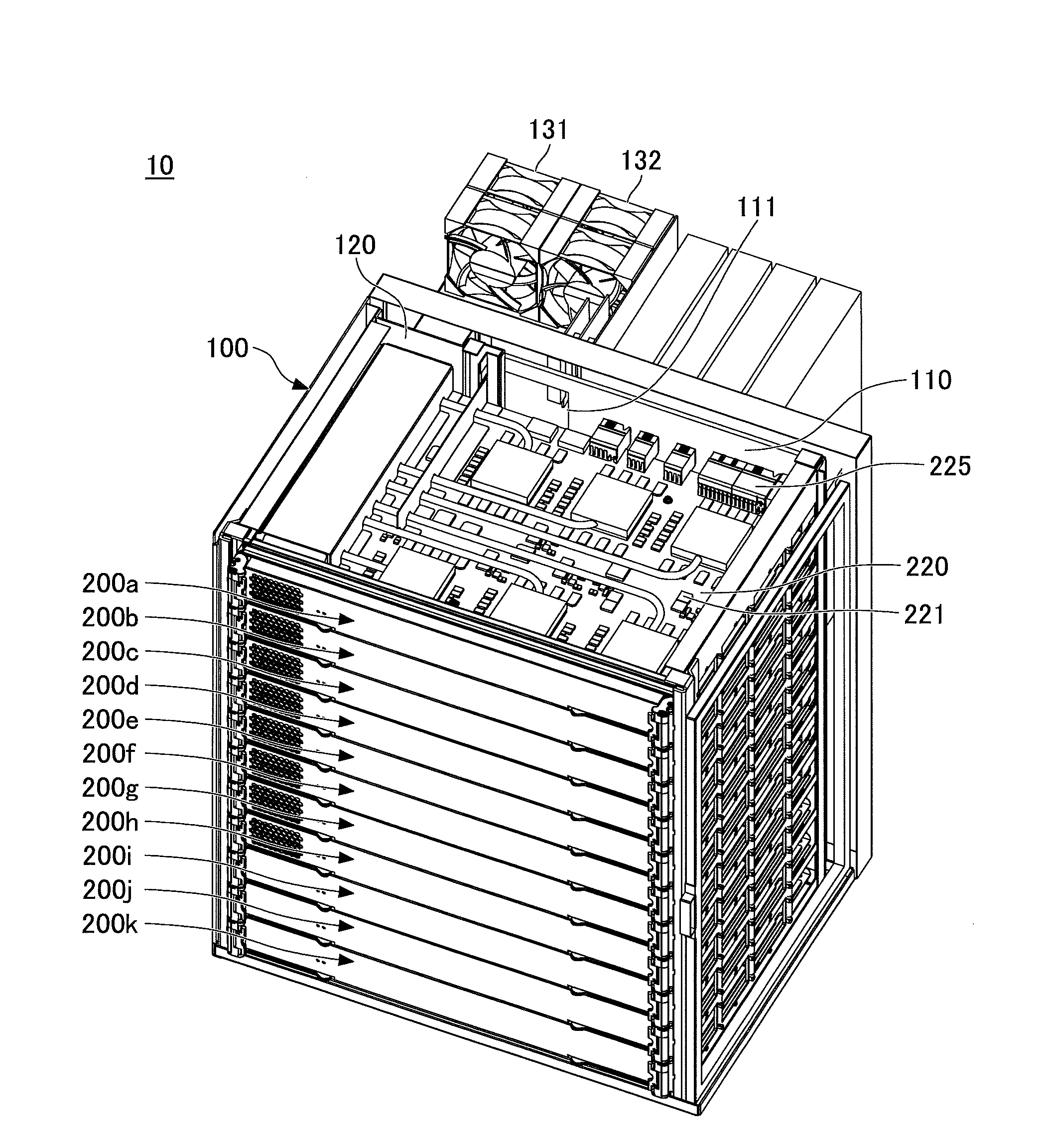

An electronic device is disclosed. The electronic device includes a chassis and at least one plugin unit mounted in the chassis. The plugin unit includes a substrate, a heat receiving member, a radiator, and a heat transfer member. The substrate mounts a first electronic component and a second electronic component having a higher heat release value than the first electronic component. The heat receiving member receives heat by contacting the second electronic component. The radiator is shaped as a duct. The heat transfer member transfers the heat from the heat receiving member to the radiator. The chassis includes a fan that generates air-current inside the radiator and on one or more component mounting surfaces of the substrate.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2018006642 | Jul 06, 2016 |
International Classification(s)
- 2017 Application Filing Year
- G06F Class
- 61356 Applications Filed
- 46481 Patents Issued To-Date
- 75.76 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 25, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 25, 2030 |
