Foldable electronic device including flexible display
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 25, 2017
filing date -
Jul 6, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

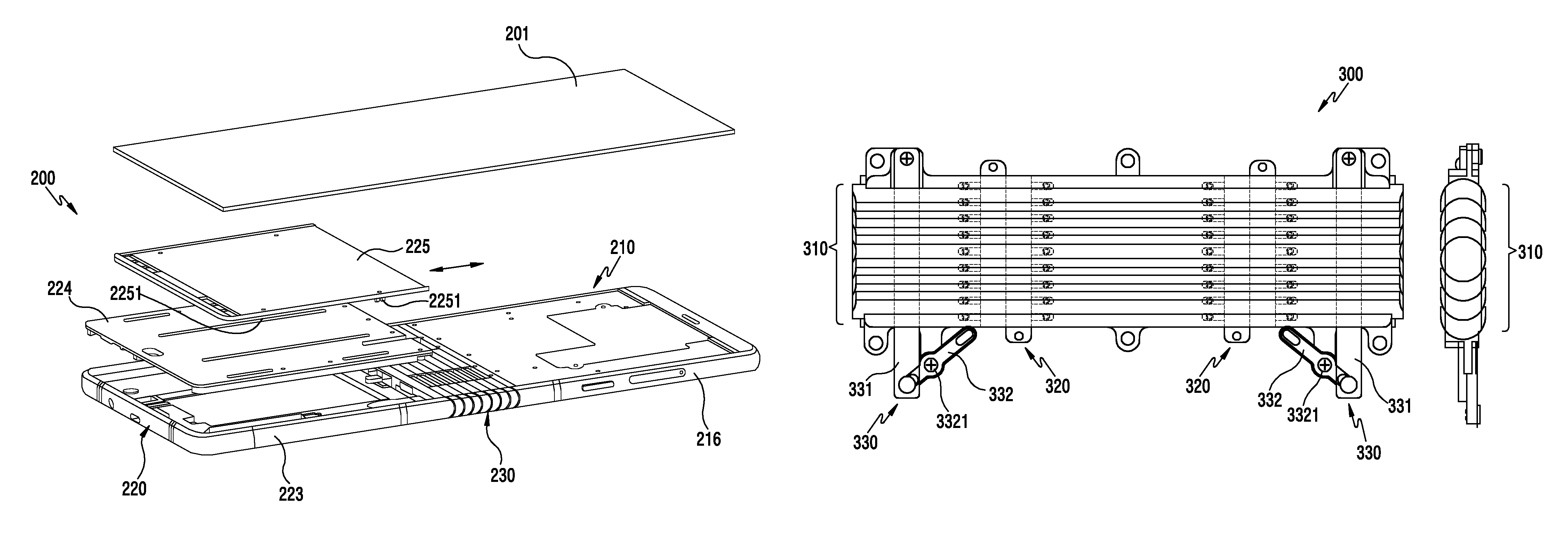

An electronic device is provided which includes a first housing including a first face facing in a first direction, a second housing comprising a second face facing in the first direction, a hinge assembly for coupling the first housing to the second housing such that the first housing and the second housing are folded toward each other, and for allowing the first face and the second face to face each other when the first housing and the second housing are completely folded, a flexible display disposed in at least one area of the first face and at least one area of the second face, and across the hinge assembly, a guide member disposed in the hinge assembly which moves based on a folding motion and unfolding motion of the hinge assembly, and a drive assembly for moving the flexible display in a sliding manner in a direction opposite to a direction of the guide member on the second face.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | B1 | KR102460466 | Jul 06, 2016 |
| WO | A1 | WO2018008865 | Jun 14, 2017 |
| EP | B1 | EP3456036 | Jun 14, 2017 |
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 14 Citation Count
- G06F Class
- 82.01 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 19, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 19, 2029 |
