Methods and systems for generating non-diffracting light sheets for multicolor fluorescence microscopy
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 9, 2021
Grant Date -
Jan 11, 2018
app pub date -
Feb 2, 2016
filing date -
May 22, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

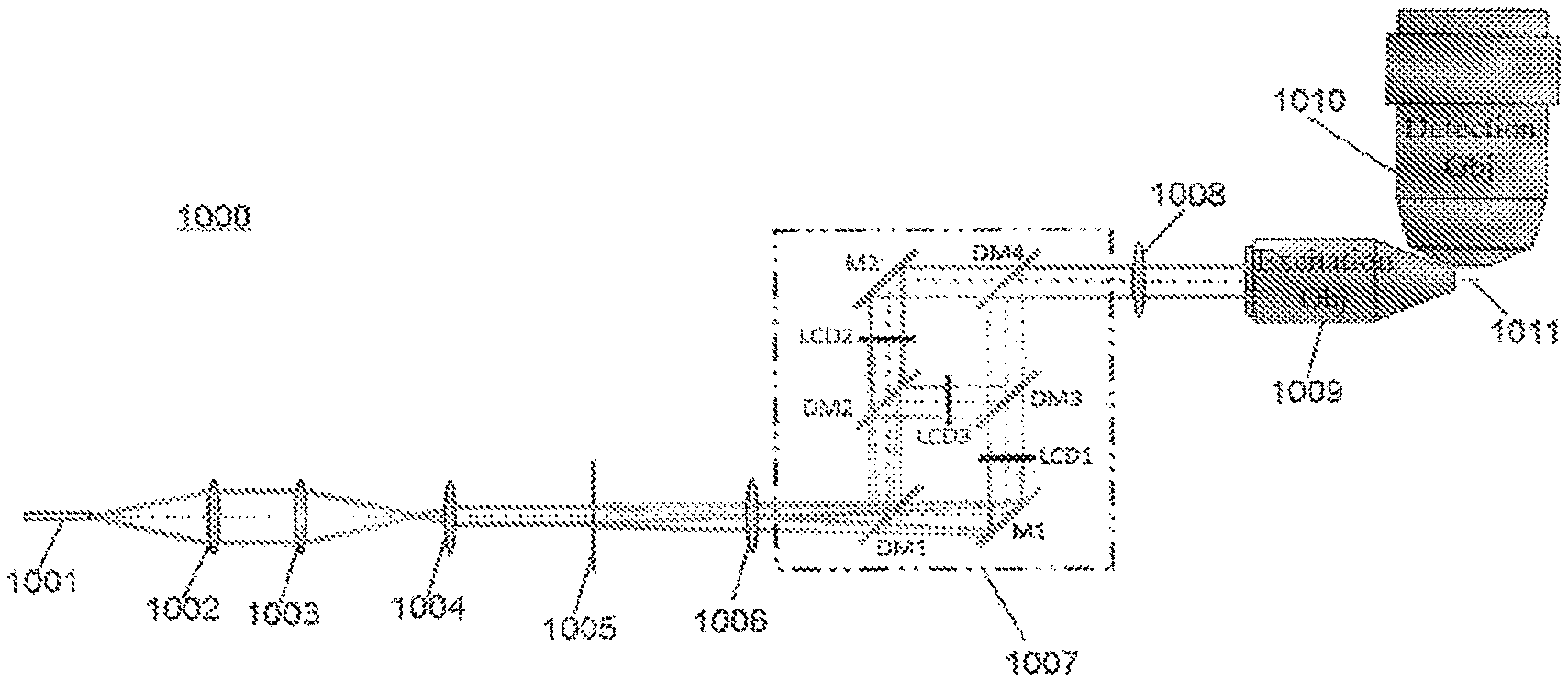

Methods and systems for generating non-diffracting light sheets for multicolor fluorescence microscopy are disclosed. A method for generating a non-diffracting light patterned Bessel sheet comprises transmitting an input light beam through a Fourier transform lens the input light beam has a spatial intensity pattern at a first plane, and a Fourier plane is formed after the Fourier transform lens to obtain a first light beam; transmitting the first light beam through an annulus mask to obtain a second light beam; and transmitting the second light beam through an excitation objective lens to form a non-diffracting patterned light sheet. A method for generating a non-diffracting light line Bessel sheet comprises transmitting an input light beam at a first lane through an annulus mask to obtain a first light beam; and transmitting the first light beam through an excitation objective lens to form a non-diffracting Bessel light sheet.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G02B Class
- 10130 Applications Filed
- 7990 Patents Issued To-Date
- 78.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G02B Class
- 56.55 % this patent is cited more than
- 4 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Sep 9, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 9, 2032 |
