POSITIONAL ALIGNMENT MECHANISM FOR A LENS ASSEMBLY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 5, 2016
filing date -
Jul 5, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

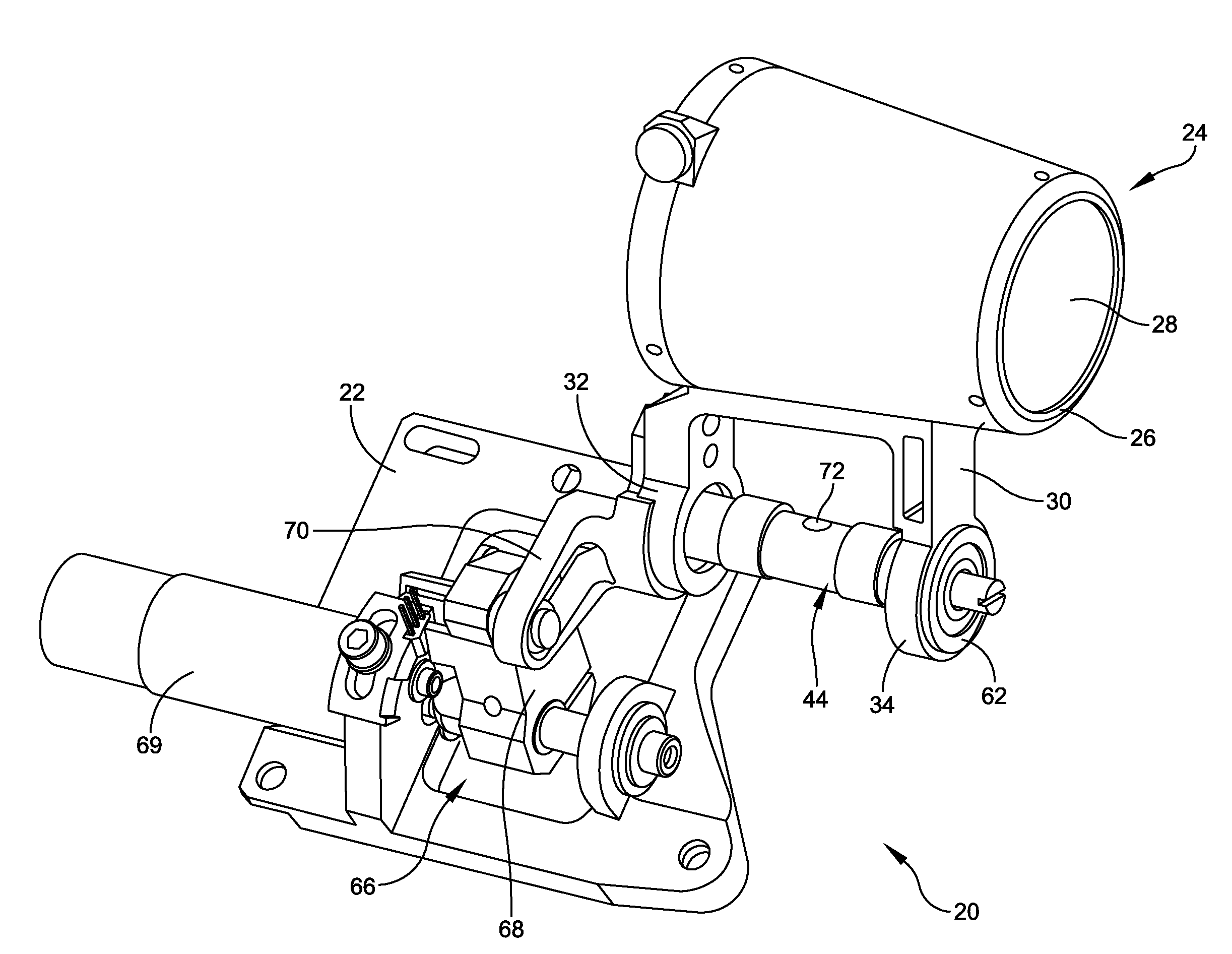

An alignment mechanism to position and focus a lens assembly includes a housing and an eccentric shaft supported by the housing. The eccentric shaft is configured to rotate with respect to the housing. The alignment mechanism further includes a lens assembly having a bracket coupled to the eccentric shaft, and an actuator assembly, coupled to the bracket of the lens assembly and configured to rotate the lens assembly about the eccentric shaft. The alignment mechanism further includes at least one thrust drive nut mounted on the eccentric shaft, the at least one thrust drive nut being configured to move the eccentric shaft and the bracket of the lens assembly in a z-axis direction.
