Magnetic lensing for beta emission imaging
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 5, 2017
filing date -
Jul 11, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

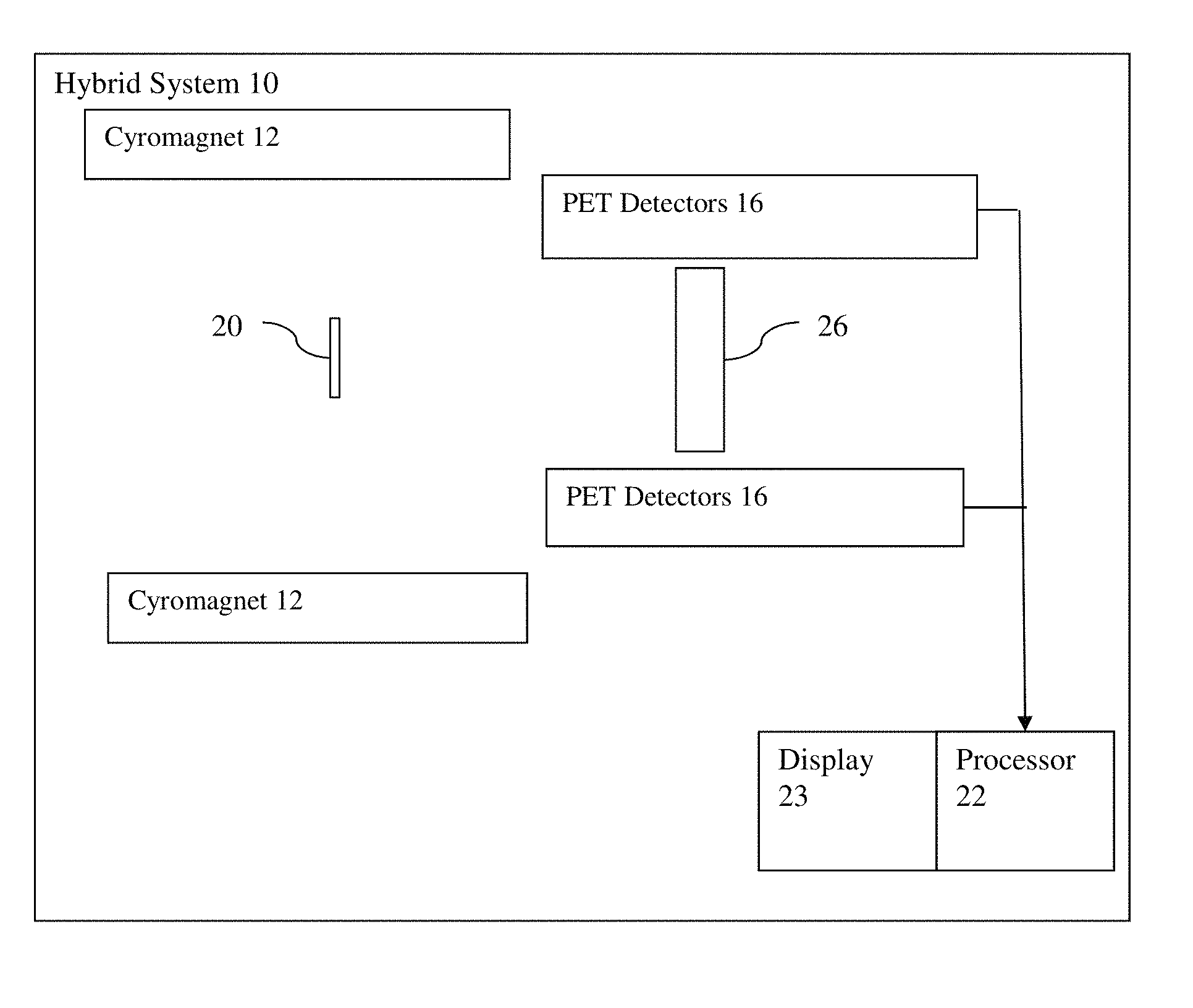

In beta emission imaging, magnetic lensing allows a lower resolution detector to detect the spatial distribution of emissions at a higher resolution. The sample is placed in a magnetic field with field lines at a given density, and the detector is placed away from the sample where the magnet field lines diverge, resulting in a lesser density. Since the beta emissions travel along the field lines, the divergence of the field lines from the sample to the detector result in lensing or magnification. Using positron attenuation tomography to detect annihilation in the detector allows for correction due to self-absorption by the sample. The correction and lensing are used together or may be used independently.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G01N Class
- 13595 Applications Filed
- 8906 Patents Issued To-Date
- 65.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 10, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 10, 2030 |
