Multi-frequency excitation schemes for high sensitivity magnetometry measurement with drift error compensation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 2, 2019
Grant Date -
Jan 11, 2018
app pub date -
Jul 11, 2016
filing date -
Jul 11, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

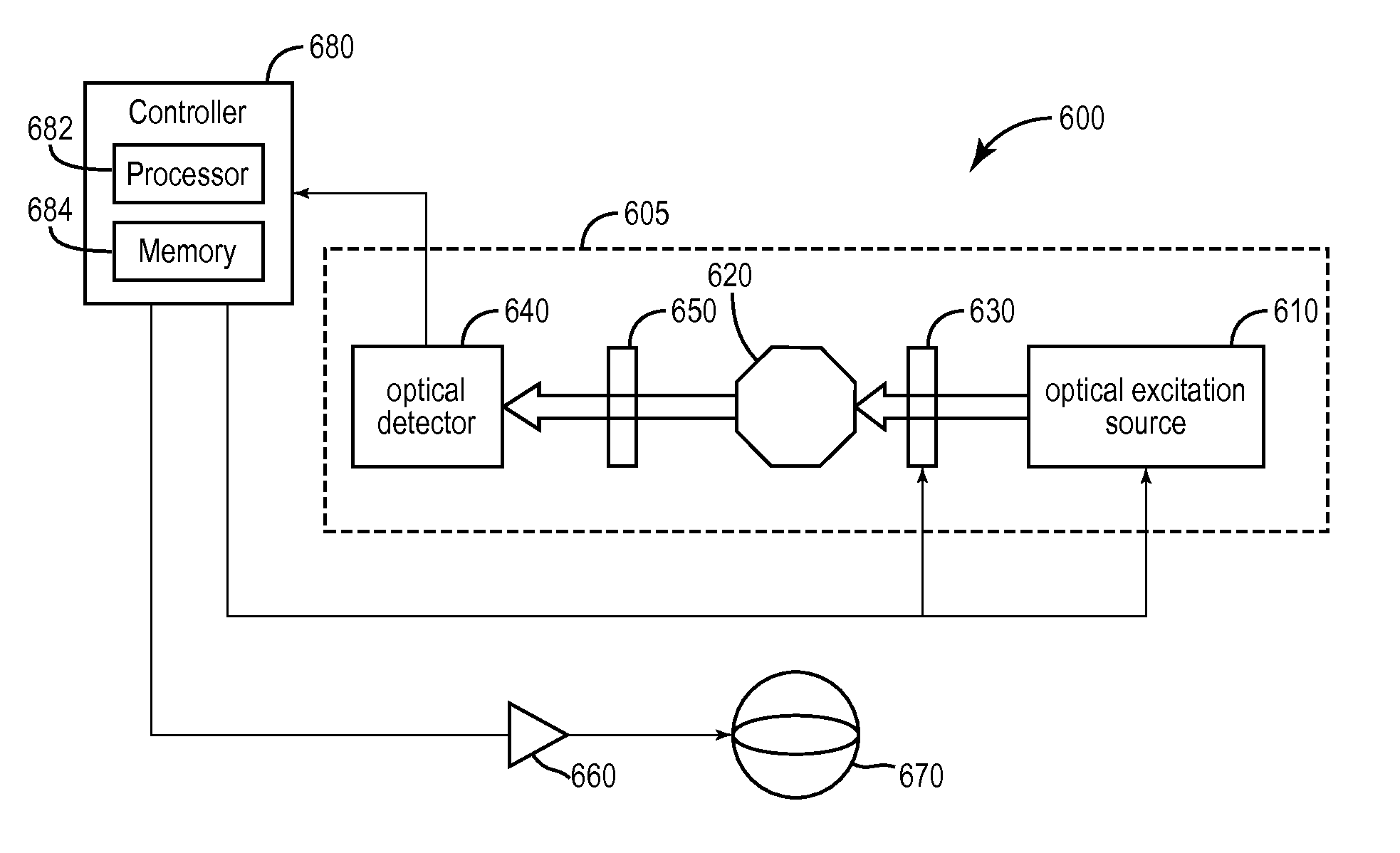

A system for magnetic detection includes a nitrogen vacancy (NV) diamond material, a radio frequency (RF) excitation source that provides RF excitation to the NV diamond material, an optical excitation source that provides optical excitation to the NV diamond material, an optical detector that receives an optical signal emitted by the NV diamond material, a magnetic field generator that generates a magnetic field applied to the NV diamond material, and a controller. The controller controls the RF excitation source to apply a first RF excitation having a first frequency and a second RF excitation having a second frequency. The first frequency is associated with a first slope point of a fluorescence intensity response of an NV center orientation of a first spin state, and the second frequency is associated with a second slope point of the fluorescence intensity response of the NV center orientation of the first spin state.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 6 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 2, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 2, 2031 |
